Selector Lever Cable Adjustment

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Activation

1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe 2.0L EcoBoost .
2. Apply the parking brake.

   Courtesy of FORD MOTOR COMPANY

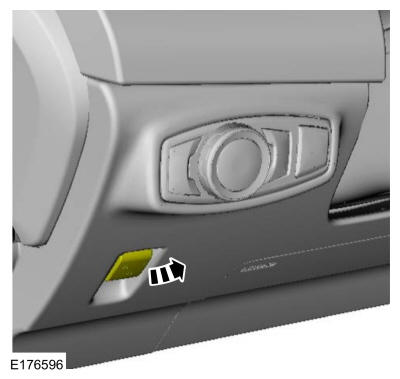

3. Using the diagnostic scan tool select the cable adjustment mode.

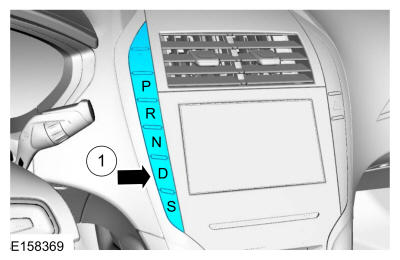

4. NOTE: The GSM will alternate flashing D or N and S simultaneously.
   1. Press the D on the GSM.

   Courtesy of FORD MOTOR COMPANY

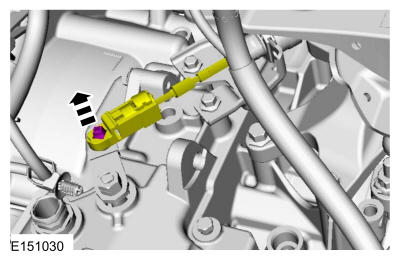

5. Disconnect the selector lever cable from the transmission manual lever.

   Courtesy of FORD MOTOR COMPANY

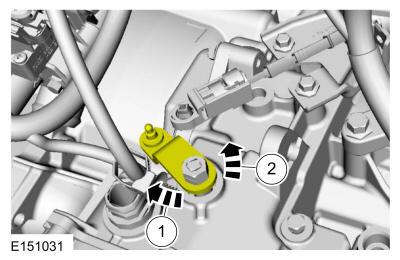

6. NOTE: Verify D is illuminated on the IPC.
   1. Rotate the manual control lever clockwise until it stops.
   2. Rotate the manual control lever counterclockwise 1 detent.

   Courtesy of FORD MOTOR COMPANY

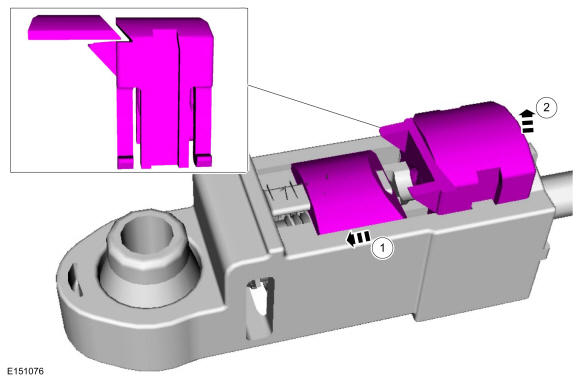

7. 1. Move the slide to the left.
   2. While holding the slide, position the adjuster lock upward.

   Courtesy of FORD MOTOR COMPANY

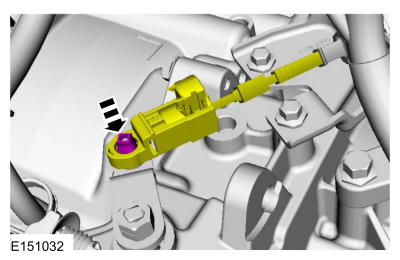

8. Connect the selector lever cable to the transmission manual lever.

   Courtesy of FORD MOTOR COMPANY

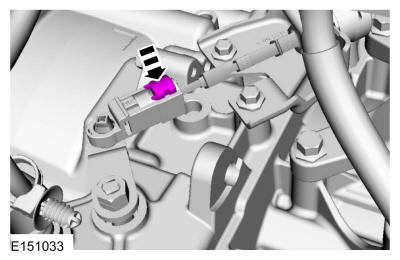

9. Lock the adjuster.

   Courtesy of FORD MOTOR COMPANY

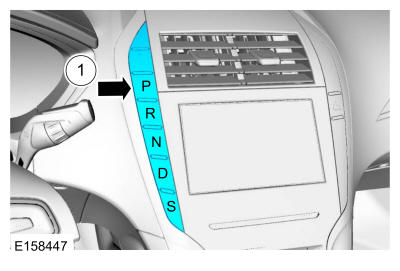

10. Press the P on the GSM.

    Courtesy of FORD MOTOR COMPANY

11. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe 2.0L EcoBoost .
12. Clear the DTCs.
13. Shift the transmission through the ranges starting in P, then R, then N, then D, then N, then R and then back to P.
14. Check for DTCs.
15. Disconnect the scan tool.
16. Verify that the vehicle starts in P and N only and that the reverse lamps illuminate in R.
17. Release the parking brake.

Courtesy of FORD MOTOR COMPANY
