Transmission Fluid Cooler: Removal
- Remove the active grille shutters. Refer to: Active Grille Shutter
.

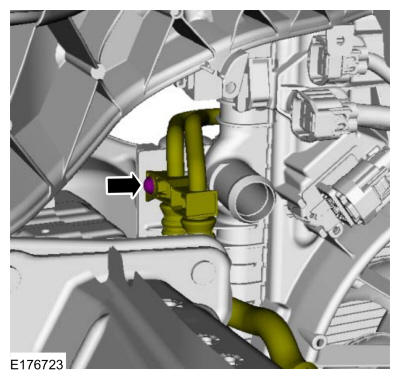

- Remove the transmission fluid cooler tube bracket bolt.
 Courtesy of FORD MOTOR COMPANY
|

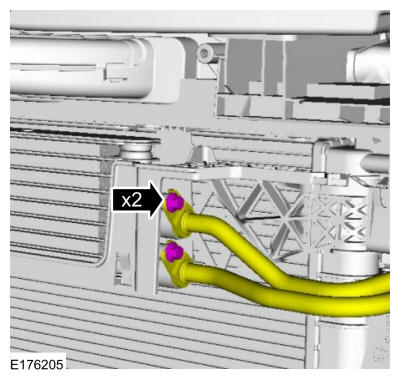

- Remove the transmission fluid cooler tube-to-transmission fluid cooler bolts and disconnect the transmission fluid cooler tubes.
 Courtesy of FORD MOTOR COMPANY
|

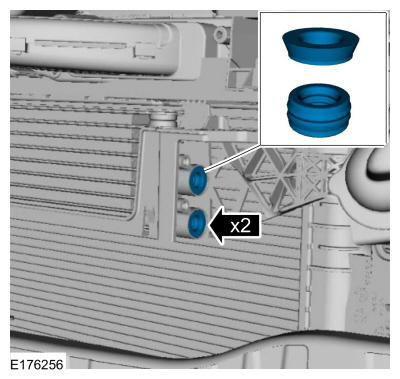

- Inspect the transmission fluid cooler to be sure that the transmission fluid cooler tube seals and backing rings were removed with the transmission fluid cooler tubes and are not stuck in the transmission cooler. If the transmission fluid cooler tube seals or backing rings are stuck in the transmission cooler, remove the seals and backing rings.
 Courtesy of FORD MOTOR COMPANY
|

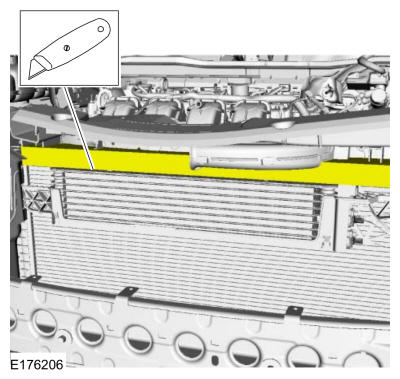

- Cut the foam insulation from the transmission fluid cooler.
 Courtesy of FORD MOTOR COMPANY
|

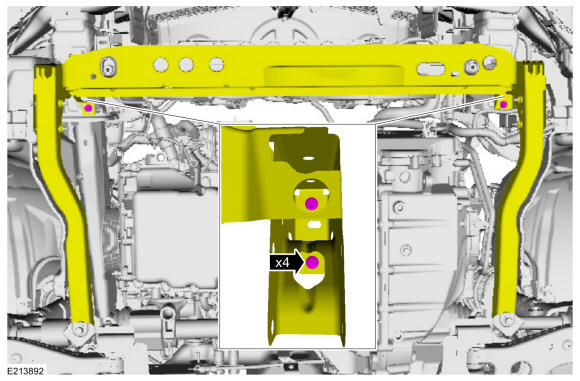

- Remove the cooling module support bracket bolts and lower the cooling module.
 Courtesy of FORD MOTOR COMPANY
|

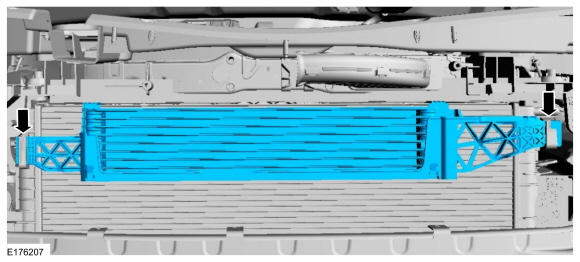

- Remove the transmission fluid cooler and bracket.
 Courtesy of FORD MOTOR COMPANY
|

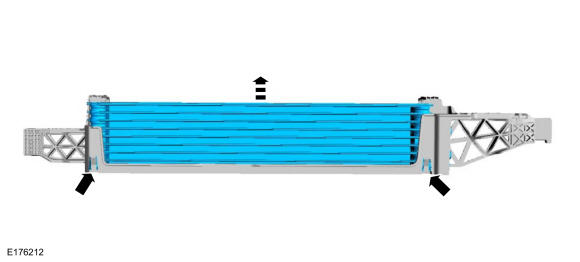

- Remove the transmission fluid cooler.
