Cylinder Head Temperature (CHT) Sensor 3.5L GTDI

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

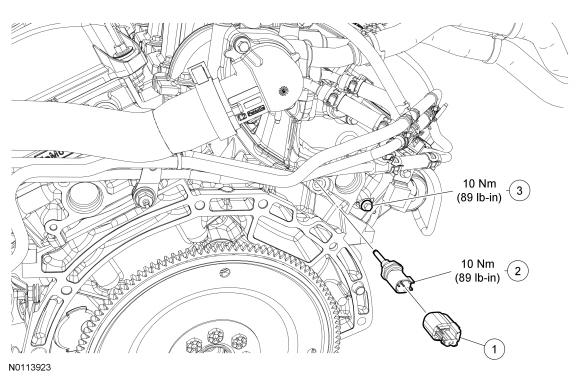

Fig 1: Cylinder Head Temperature (CHT) Sensor 3.5L GTDI With Torque Specifications
GFD92920Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Cylinder Head Temperature (CHT) sensor electrical connector
2 6G004 CHT sensor
3 W503274 Ground wire-to-engine front cover bolt.
  1. Remove the Air Cleaner (ACL) outlet pipe and the ACL. Refer to Intake Air Distribution and Filtering .
  2. Position the RH turbocharger intake tube aside. Refer to Intake Air Distribution and Filtering .
  3. Remove the ground wire-to-engine front cover bolt.
  4. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.
  5. Remove and discard the CHT sensor.
    • To install, tighten to 10 Nm (89 lb-in).
  6. To install, reverse the removal procedure.
    • Do not reuse the CHT sensor, install a new sensor.
