Engine Ignition Components Exploded View

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH Side

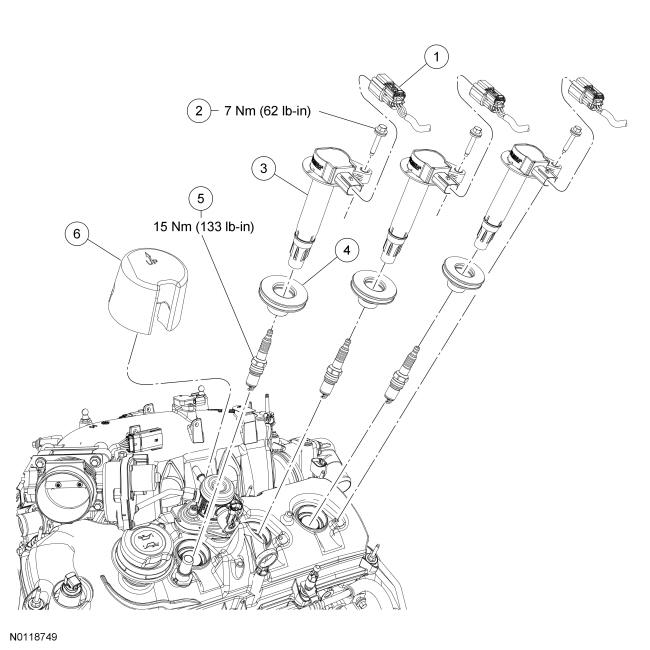

Fig 1: Engine Ignition Components Exploded View With Torque Specifications LH Side
GFD92840Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Ignition coil-on-plug electrical connector (part of 12A581) (3 required)
2 W701672 Ignition coil-on-plug bolt (3 required)
3 12029 Ignition coil-on-plug (3 required)
4 12025 Coil seal (3 required)
5 12405 Spark plug (3 required)
6 6N041 Fuel injection pump noise insulator shield

3.5L GTDI RH Side

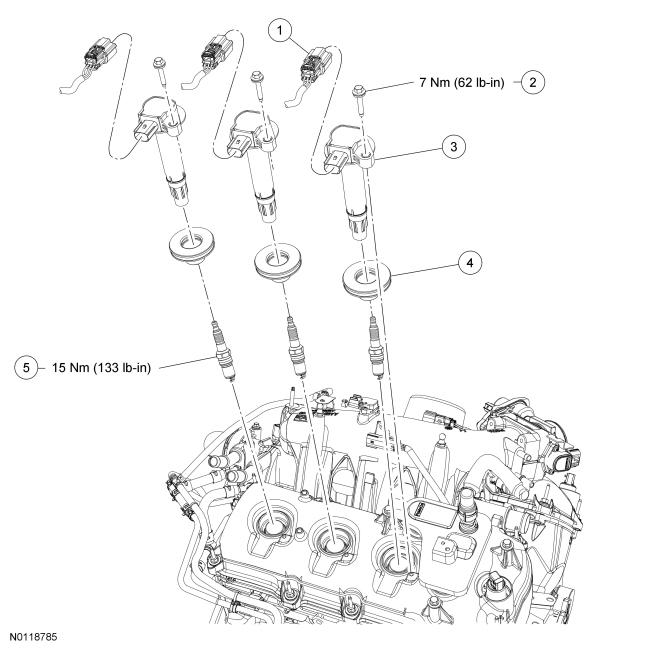

Fig 2: Engine Ignition Components Exploded View With Torque Specifications RH Side
GFD92841Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Ignition coil-on-plug electrical connector (part of 12A581) (3 required)
2 W701672 Ignition coil-on-plug bolt (3 required)
3 12029 Ignition coil-on-plug (3 required)
4 12025 Coil seal (3 required)
5 12405 Spark plug (3 required)
  1. Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
