Fuel Pump Driver Module (FPDM): Installation
-

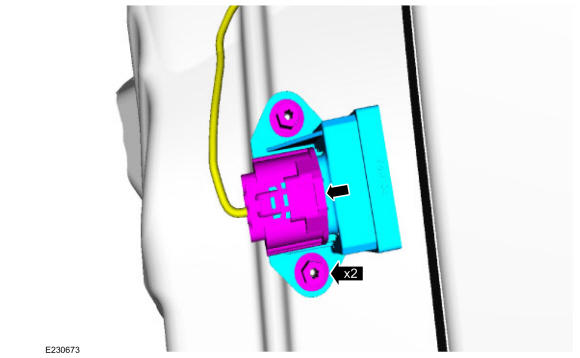

- Install the FPDM, then install and tighten the FPDM retaining nuts.
Torque: 13 lb.in (1.5 Nm)
- Connect the FPDM electrical connector.
- Install the FPDM, then install and tighten the FPDM retaining nuts.
- Install the left rear C-Pillar Lower Trim Panel Refer to: C-Pillar Lower Trim Panel .
