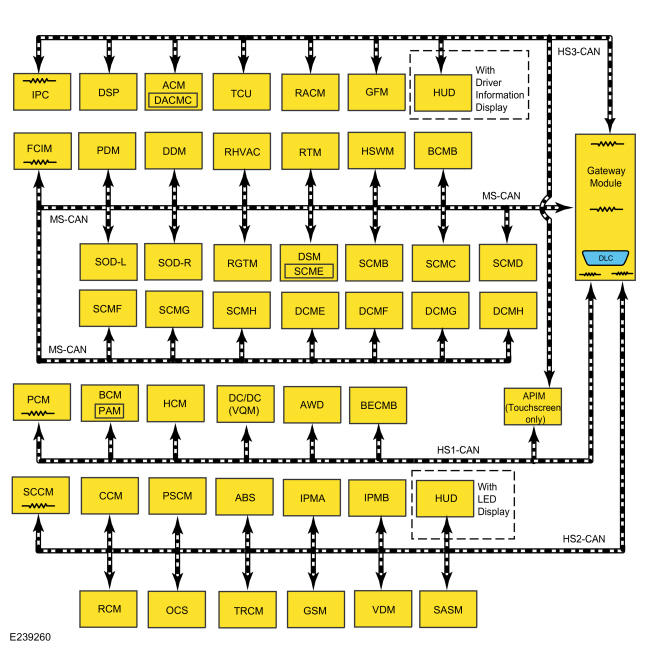

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
Module Network Chart
| Module Name | Network Type | Terminating Module |
|---|---|---|
| APIM | HS-CAN1 | No |
| HS-CAN3 | No | |
| ABS module | HS-CAN2 | No |
| ACM | HS-CAN3 | No |
| AWD module (if equipped) | HS-CAN1 | No |
| Audio DSP (if equipped) | HS-CAN3 | No |
| BECMB | HS-CAN1 | No |
| BCM | HS-CAN1 | No |
| BCMB (column and pedal control module) | MS-CAN | No |
| CCM (if equipped) | HS-CAN2 | No |
| DACMC (integrated with ACM) (if equipped) | HS-CAN3 | No |
| DC/ DC (DC/DC) converter control module (VQM) (if equipped) | HS-CAN1 | No |
| Door latch module-left front (DCME) | MS-CAN | No |
| Door latch module-right front (DCMF) | MS-CAN | No |
| Door latch module-left rear (DCMG) | MS-CAN | No |
| Door latch module-right rear (DCMH) | MS-CAN | No |
| DDM | MS-CAN | No |
| DSM | MS-CAN | No |
| FCIM | MS-CAN | Yes |
| GWM | HS-CAN1 | Yes |
| HS-CAN2 | Yes | |
| HS-CAN3 | Yes | |
| MS-CAN | Yes | |
| GSM (if equipped) | HS-CAN2 | No |
| GFM (remote CD module) (if equipped) | HS-CAN3 | No |
| HCM (if equipped) | HS-CAN1 | No |
| HUD module - LED display (if equipped) | HS-CAN2 | No |
| HUD module - driver information display (if equipped) | HS-CAN3 | No |
| HSWM (if equipped) | MS-CAN | No |
| IPC | HS-CAN3 | Yes |
| IPMA (if equipped) | HS-CAN2 | No |
| IPMB (if equipped) | HS-CAN2 | No |
| OCS | HS-CAN2 | No |
| PAM (if equipped) (integrated with BCM) | HS-CAN1 | No |
| PSCM | HS-CAN2 | No |
| PCM | HS-CAN1 | Yes |
| PDM | MS-CAN | No |
| Passenger front seat module (SCMB) | MS-CAN | No |
| RTM (if equipped) | MS-CAN | No |
| RACM (if equipped) | HS-CAN3 | No |
| RHVAC module (if equipped) | MS-CAN | No |
| RGTM (if equipped) | MS-CAN | No |
| RCM | HS-CAN2 | No |
| SODL (if equipped) | MS-CAN | No |
| SODR (if equipped) | MS-CAN | No |
| SCME (integrated with DSM) (if equipped) | MS-CAN | No |
| SCMG (if equipped) | MS-CAN | No |
| SCMH (if equipped) | MS-CAN | No |
| Rear Seat Climate Control Module (SCMF) (if equipped) | MS-CAN | No |
| LH Rear Multi-Contour Seat Module (SCMC) (if equipped) | MS-CAN | No |
| RH Rear Multi-Contour Seat Module (SCMD) (if equipped) | MS-CAN | No |
| SASM | HS-CAN2 | No |
| SCCM | HS-CAN2 | Yes |
| TCU (if equipped) | HS-CAN3 | No |
| TRCM (if equipped) | HS-CAN2 | No |
| VDM (if equipped) | HS-CAN2 | No |
