Connector Repair Procedures

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

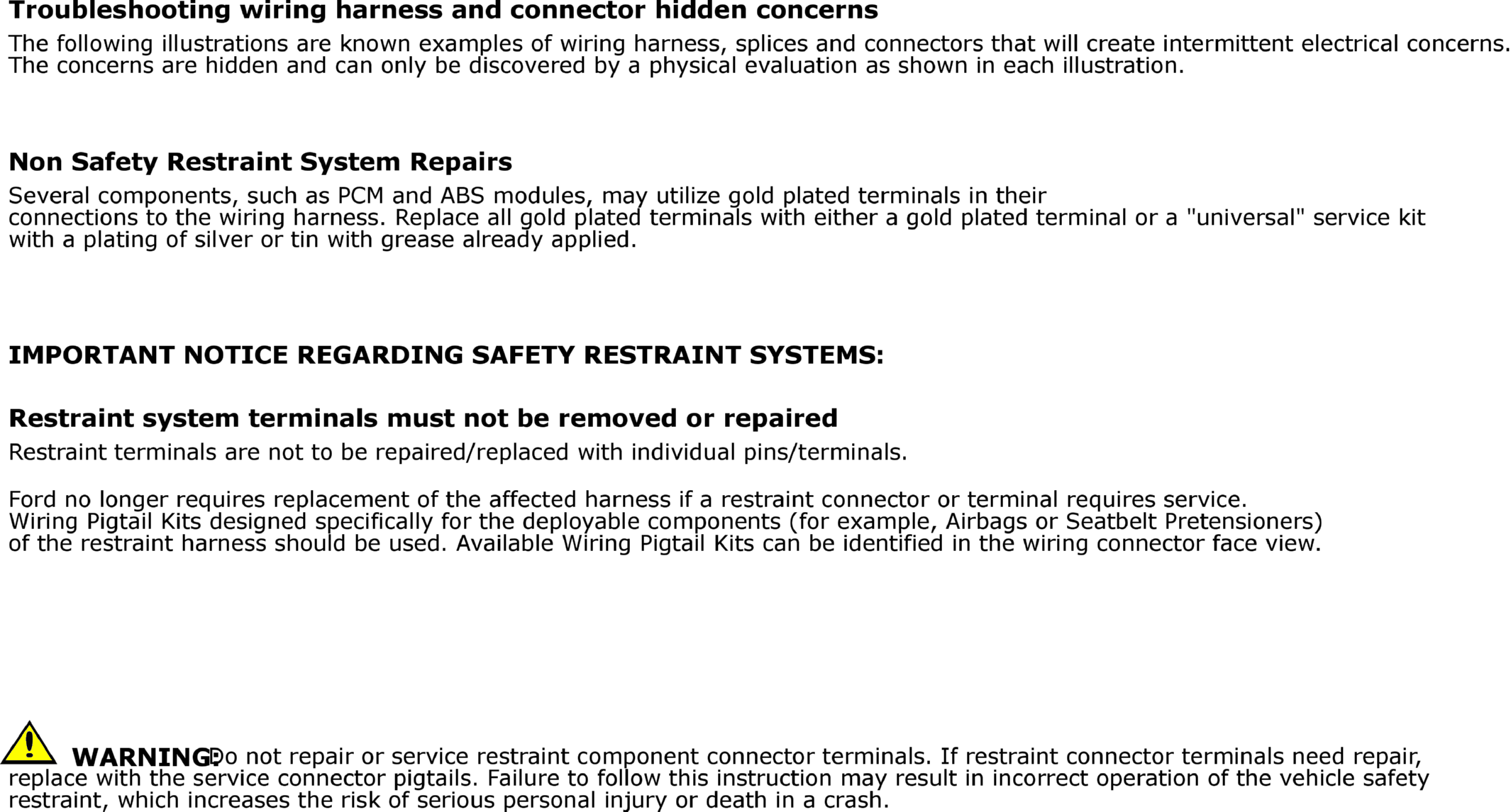

GFDW71788Courtesy of FORD MOTOR COMPANY

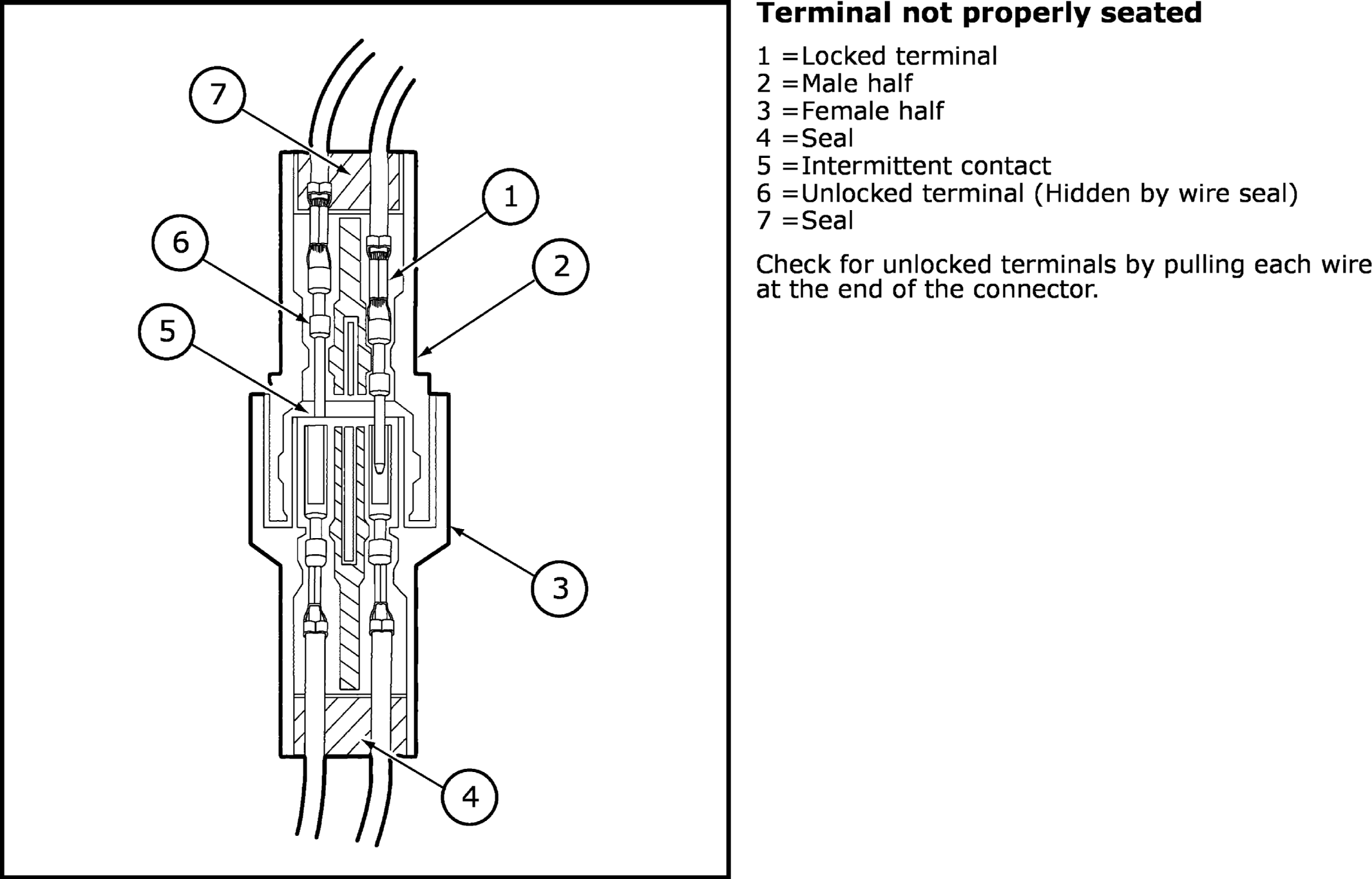

GFDW71789Courtesy of FORD MOTOR COMPANY

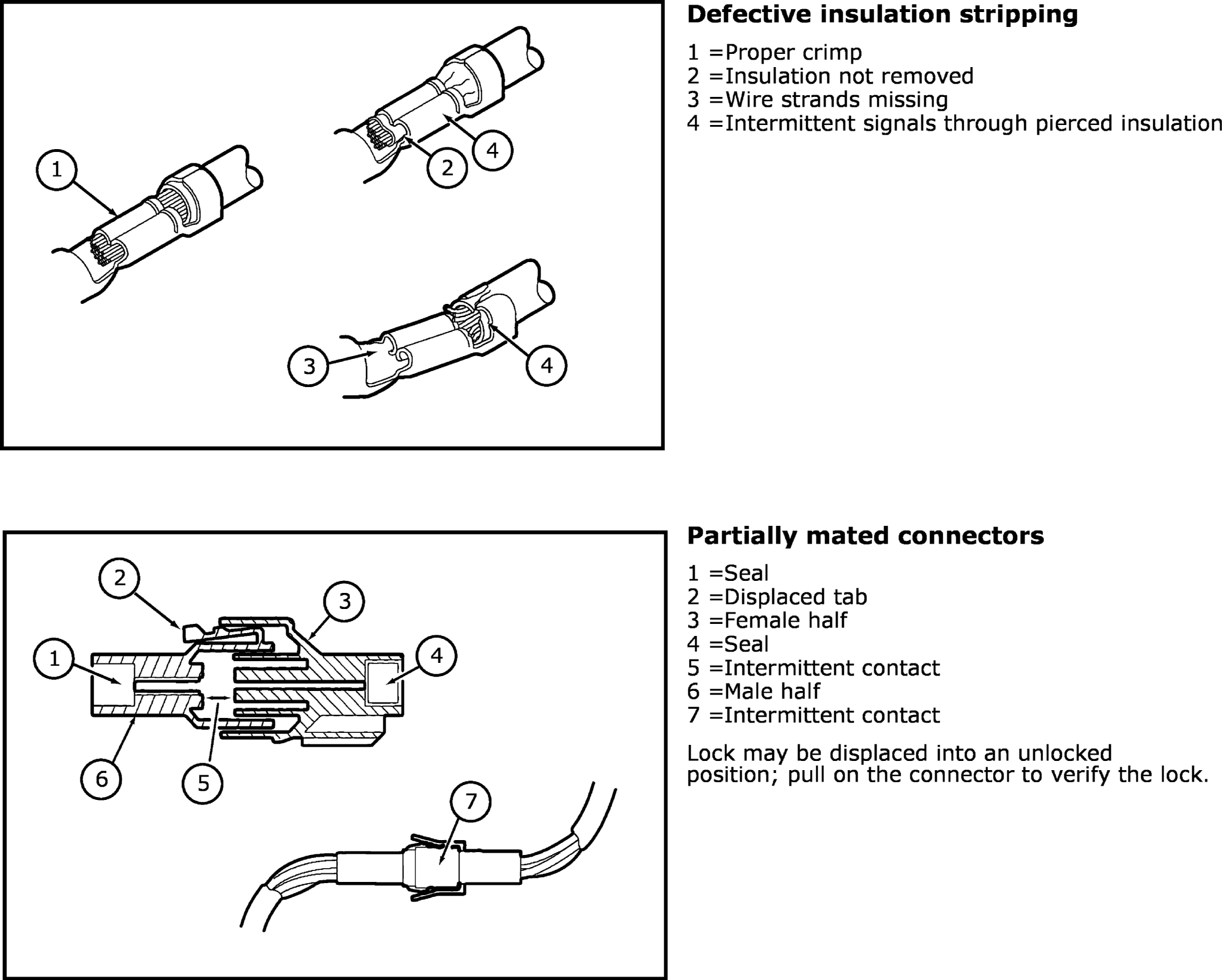

GFDW71790Courtesy of FORD MOTOR COMPANY

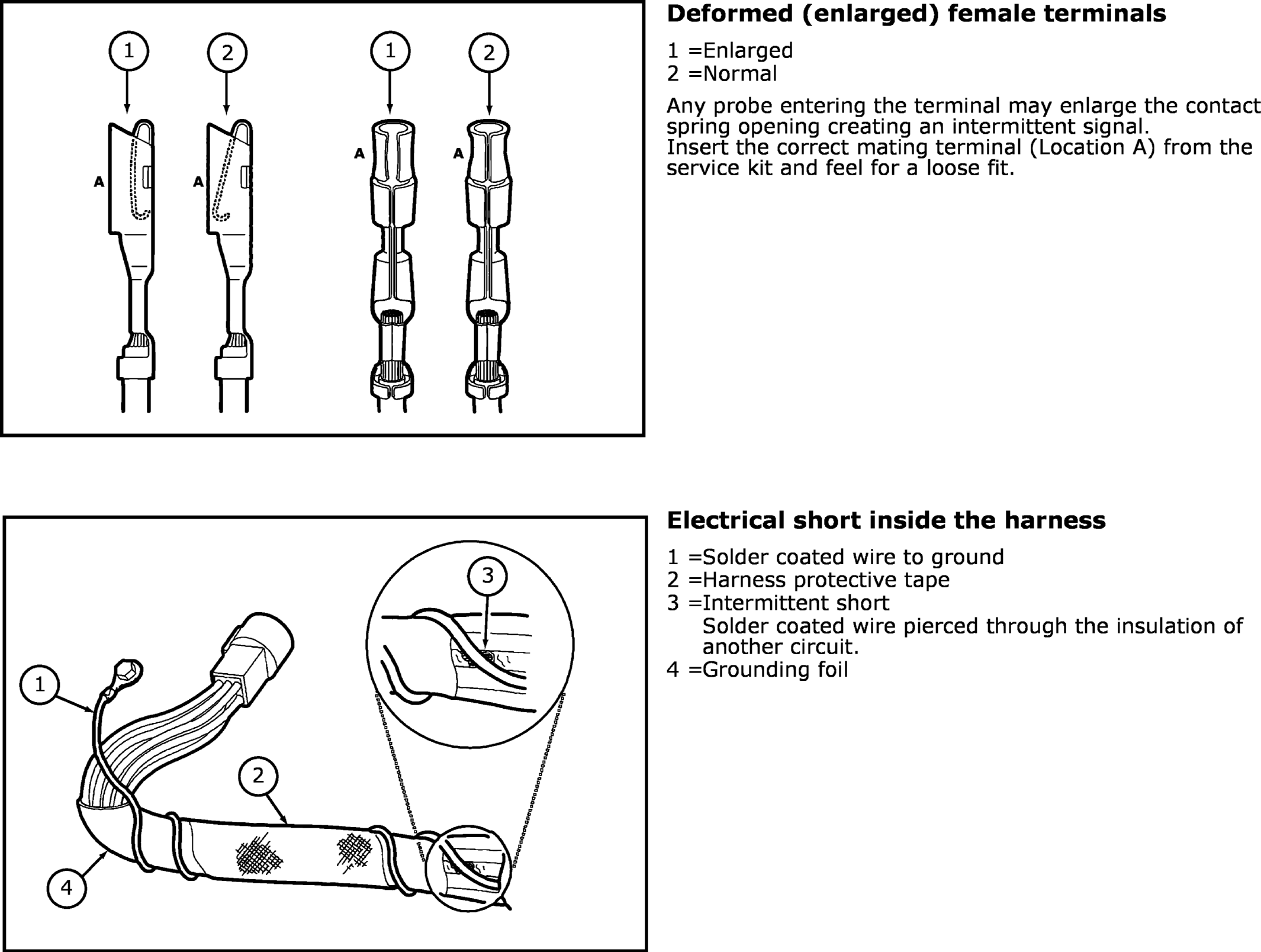

GFDW71791Courtesy of FORD MOTOR COMPANY

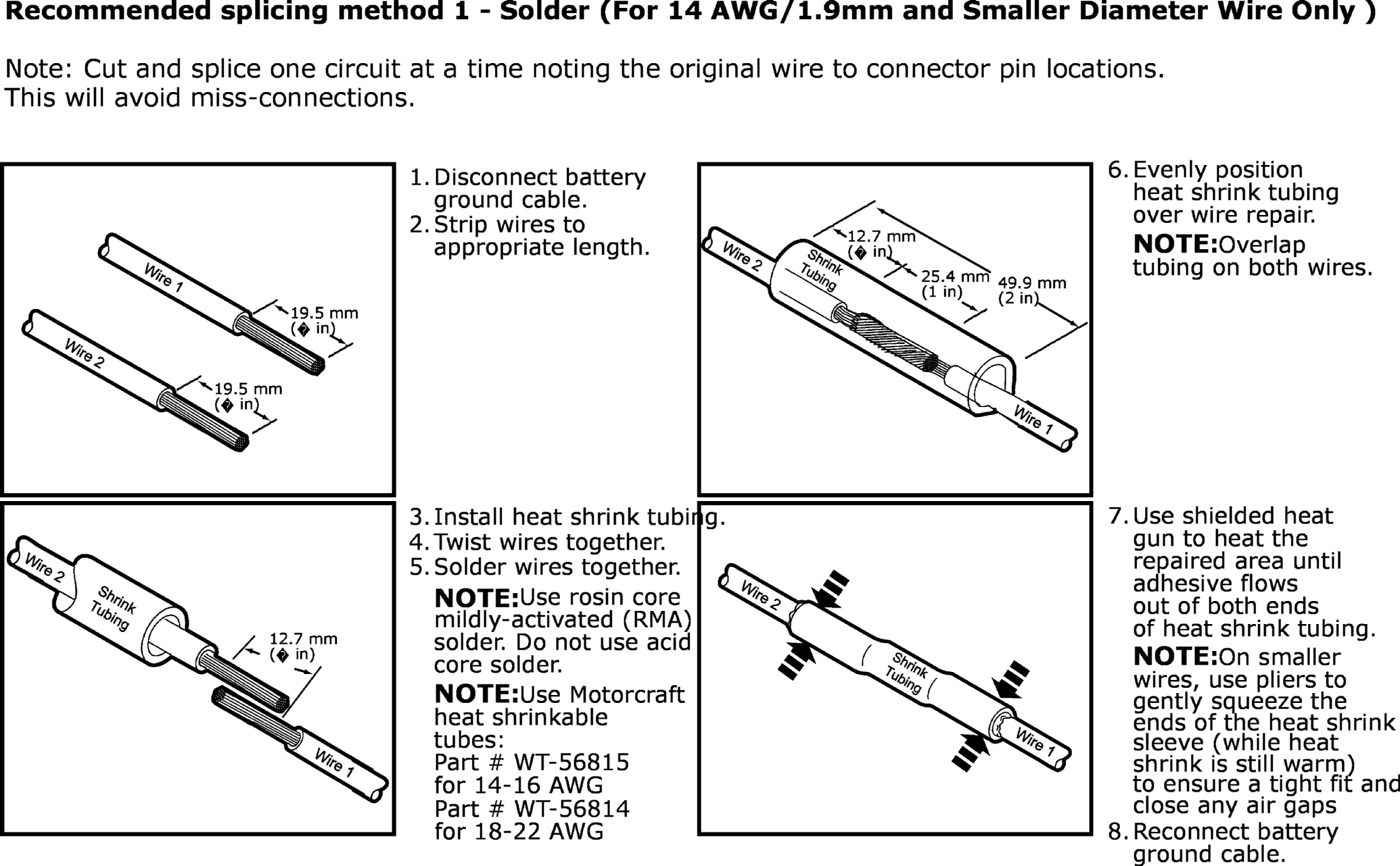

GFDW71792Courtesy of FORD MOTOR COMPANY

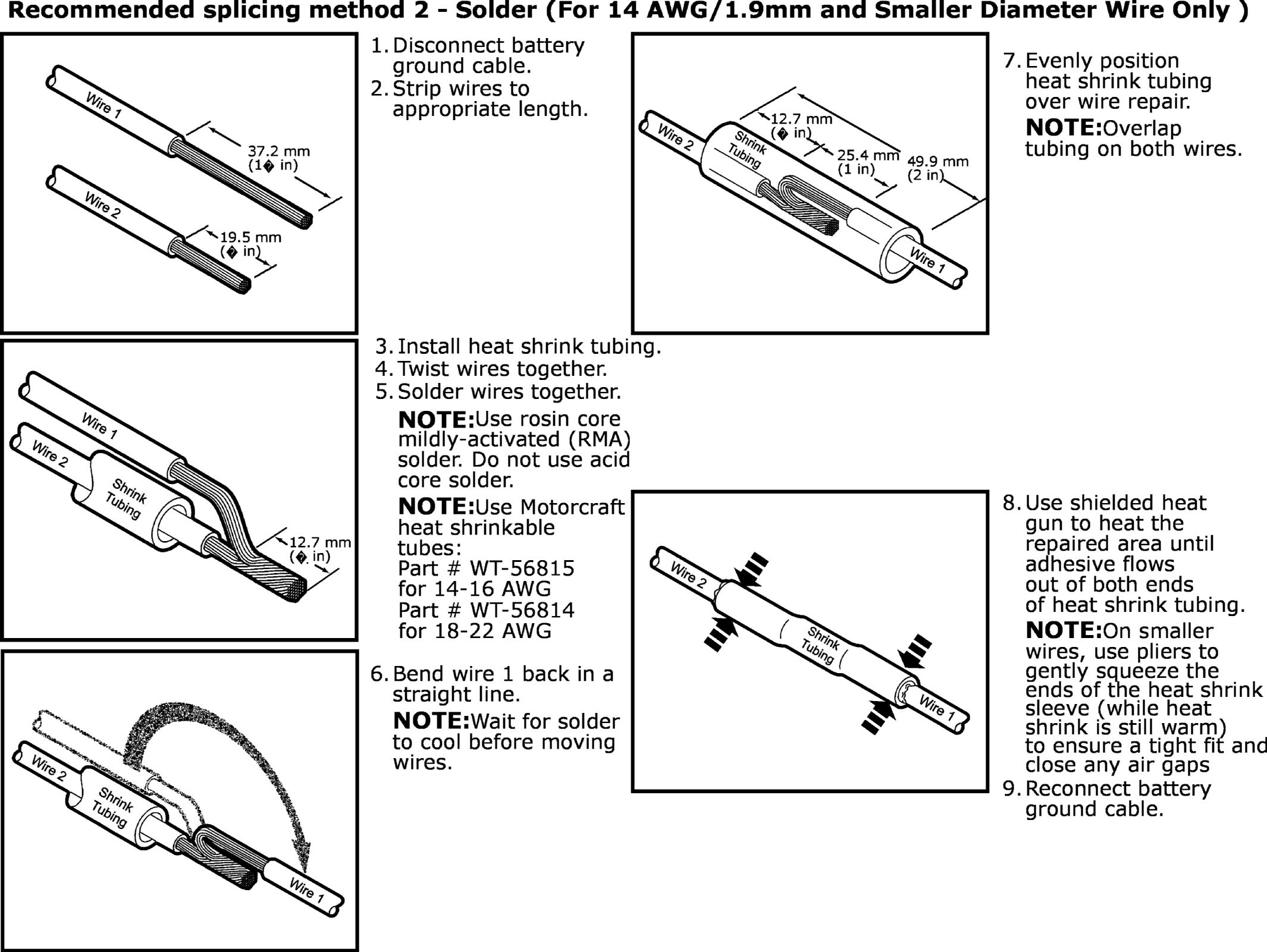

GFDW71793Courtesy of FORD MOTOR COMPANY

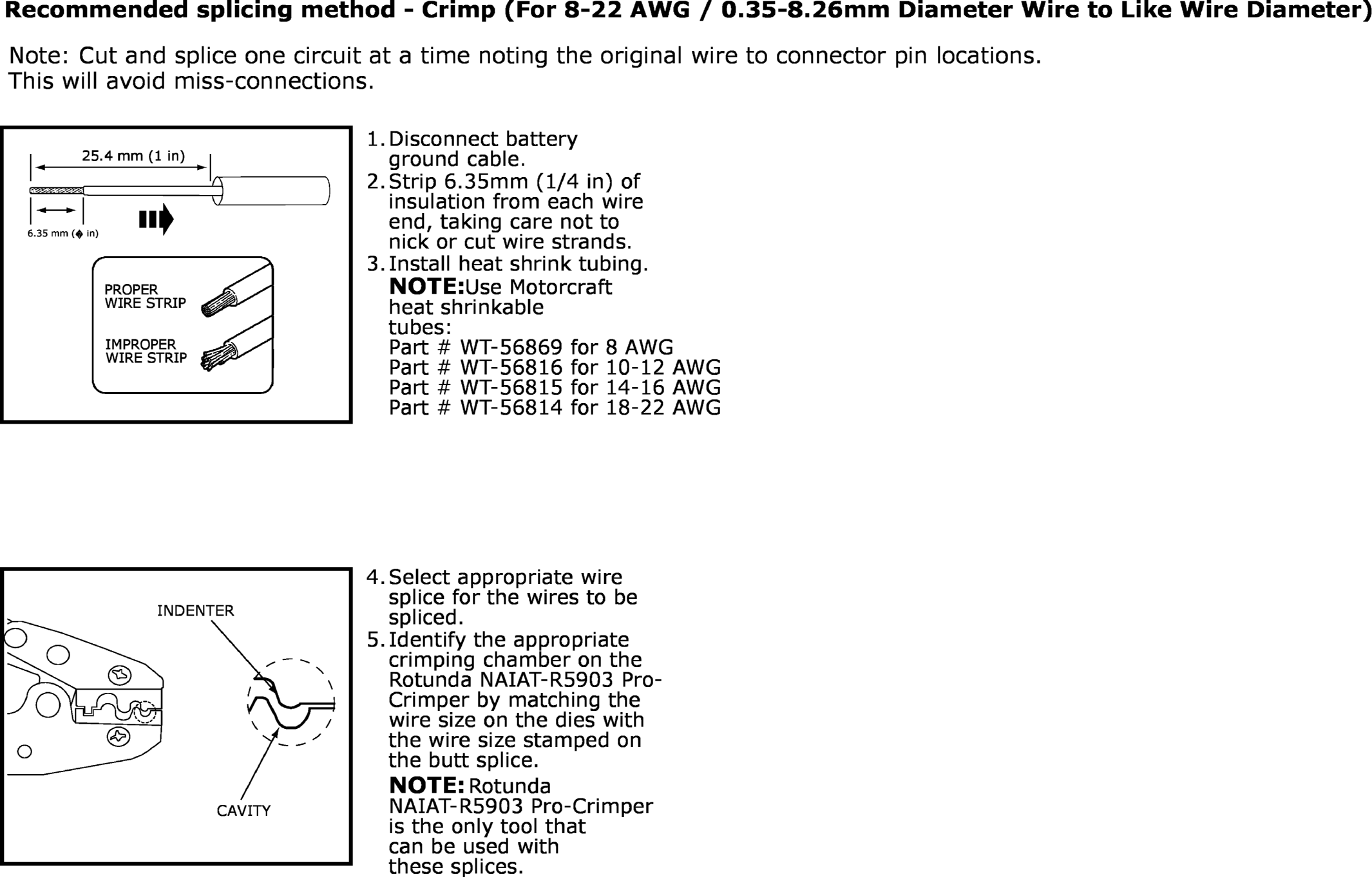

GFDW71794Courtesy of FORD MOTOR COMPANY

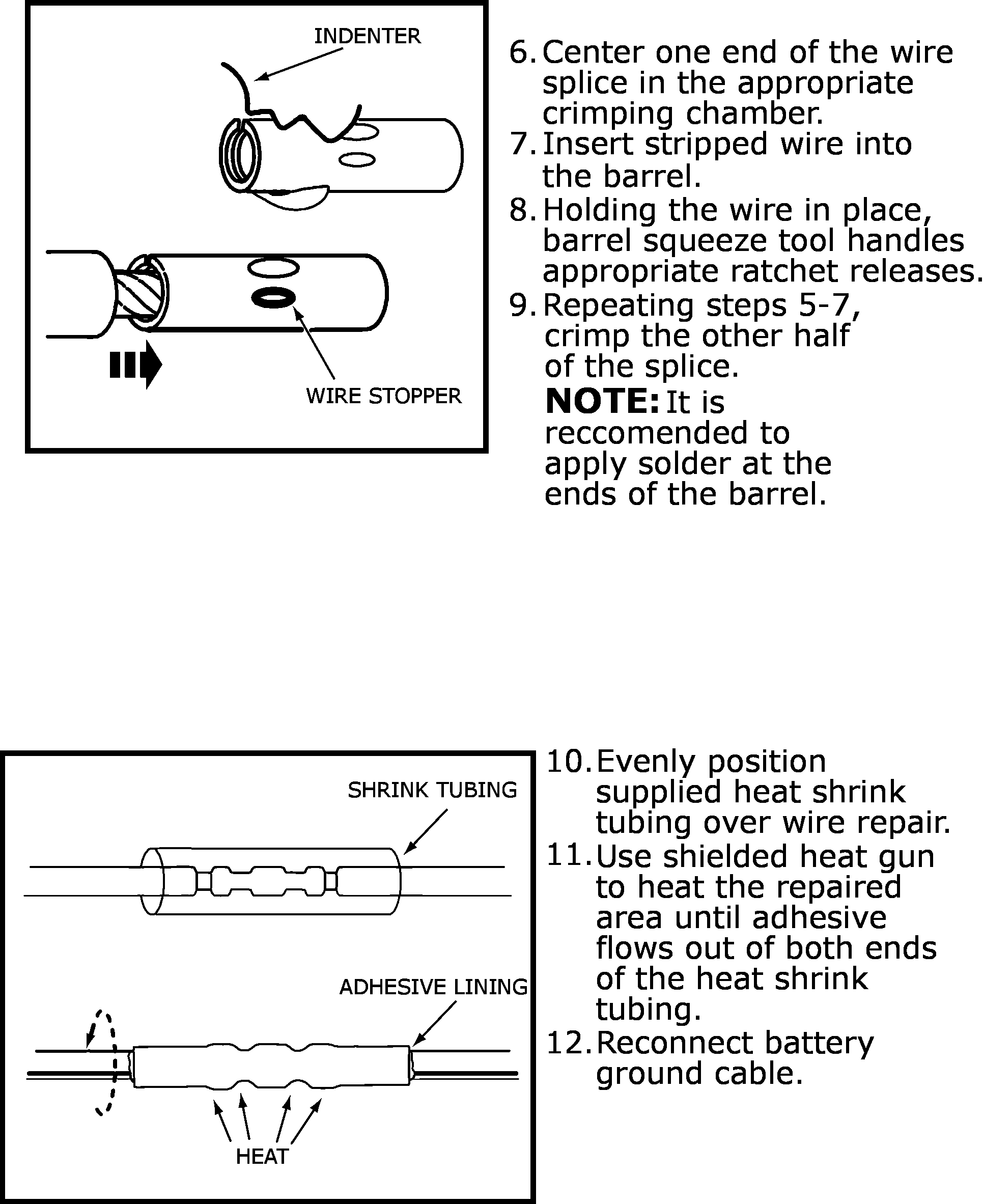

GFDW71795Courtesy of FORD MOTOR COMPANY

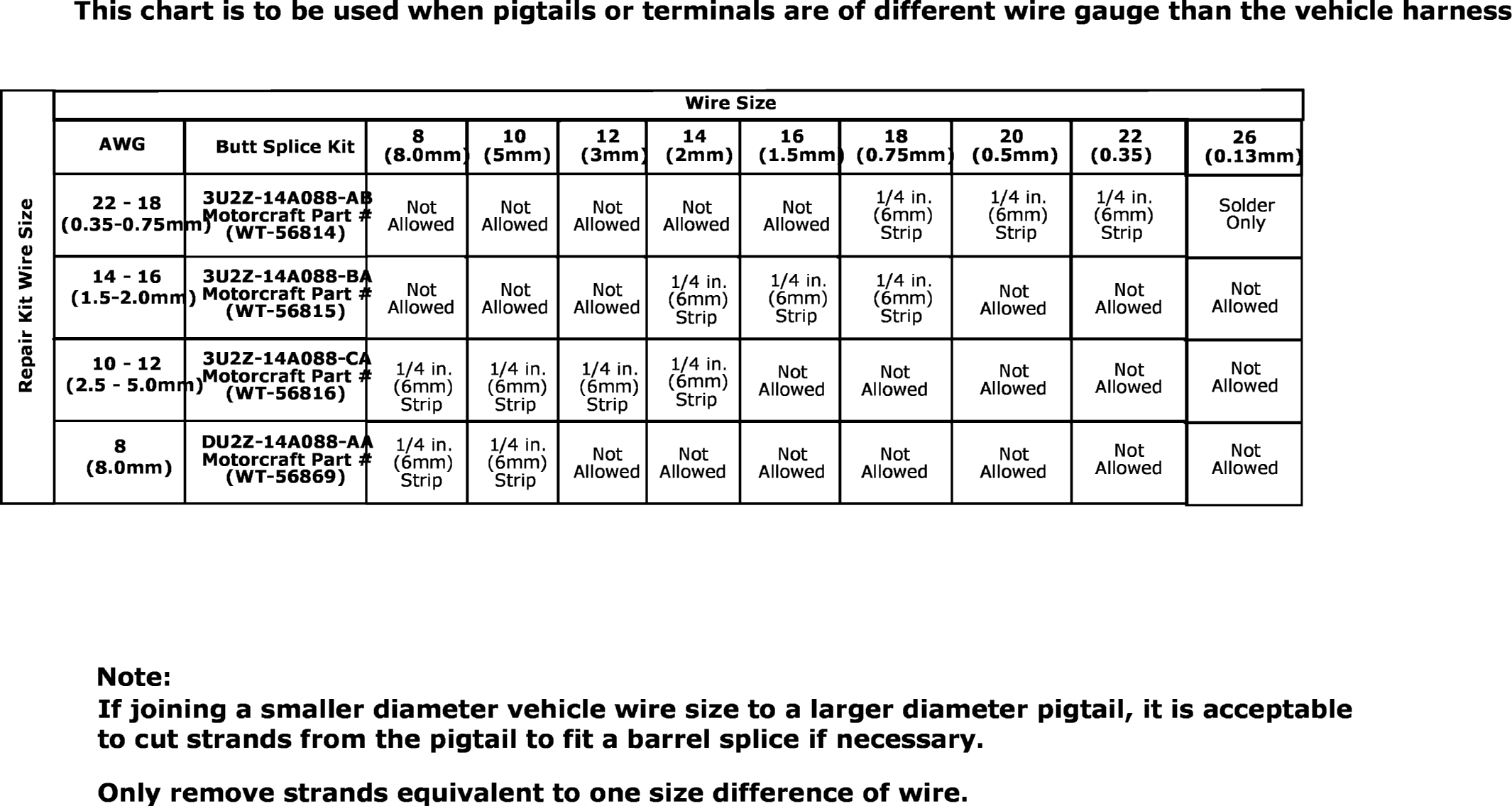

GFDW71796Courtesy of FORD MOTOR COMPANY
