Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

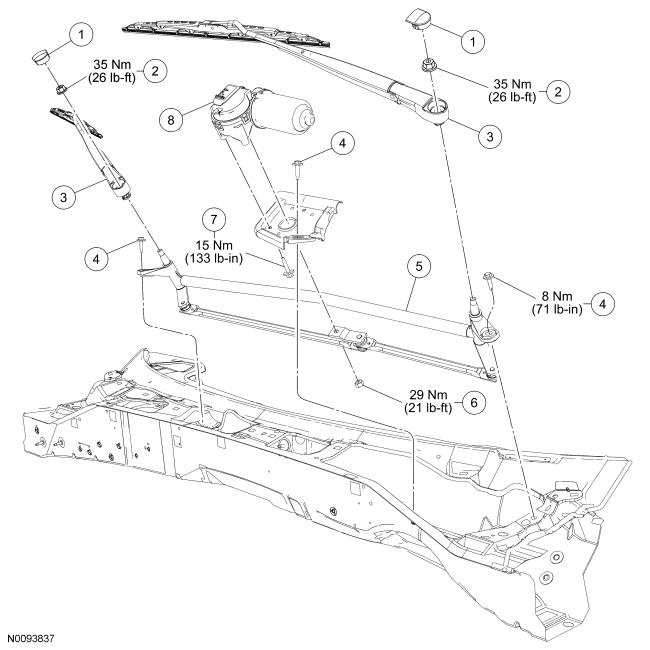

Front Wiper System
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wiper pivot arm nut covers (2 required) |
| 2 | W707014 | Wiper pivot arm nuts |
| 3 | 17526 | Wiper pivot arms (LH and RH) |
| 4 | N808988 | Wiper pivot arm linkage bolts (3 required) |
| 5 | 17508A | Wiper pivot arm linkage assembly (includes wiper motor) |
| 6 | - | Wiper motor crank nut |
| 7 | - | Wiper motor attachment bolt (3 required) |
| 8 | 17504 | Wiper motor |

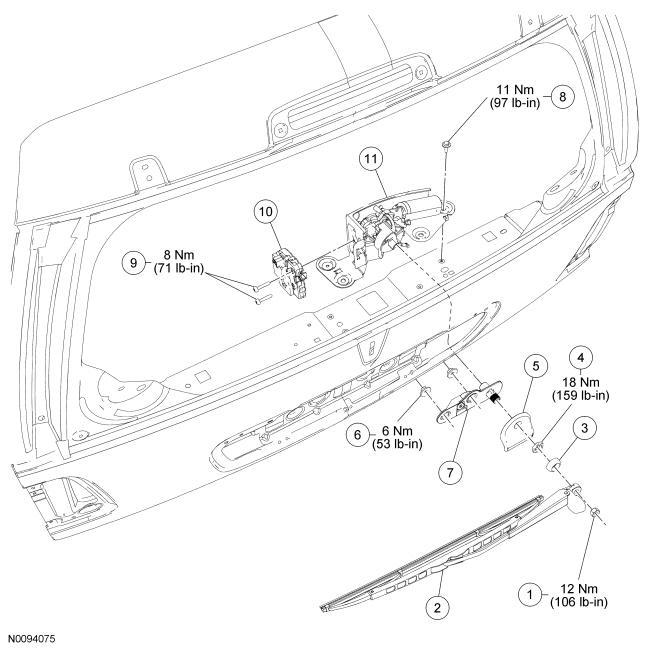

Rear Wiper System
| Item | Part Number | Description |
|---|---|---|
| 1 | W708312 | Wiper pivot arm nut |
| 2 | 17526 | Wiper pivot arm assembly |
| 3 | 17C526A | Dust boot cover |
| 4 | W710357 | Handle retaining nut |
| 5 | 44009 | Rear window glass handle |
| 6 | - | Striker latch nut (2 required) |
| 7 | 17C426 | Striker latch assembly |
| 8 | - | Wiper motor bracket bolt (4 required) |
| 9 | 421A00 | Latch assembly bolts (2 required) |
| 10 | 40860 | Latch assembly |
| 11 | 17508 | Wiper motor assembly |

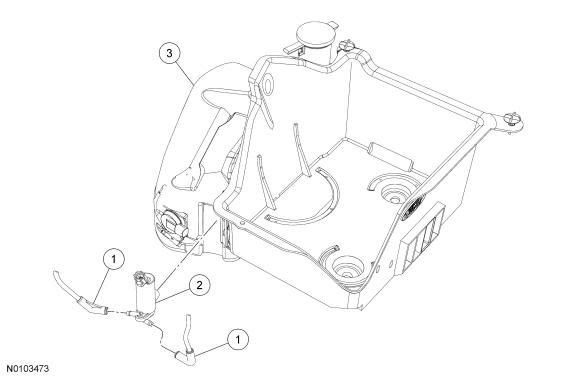

Washer System
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Windshield washer pump hoses |
| 2 | - | Windshield washer pump |
| 3 | - | Windshield washer reservoir (part of battery tray assembly) |
