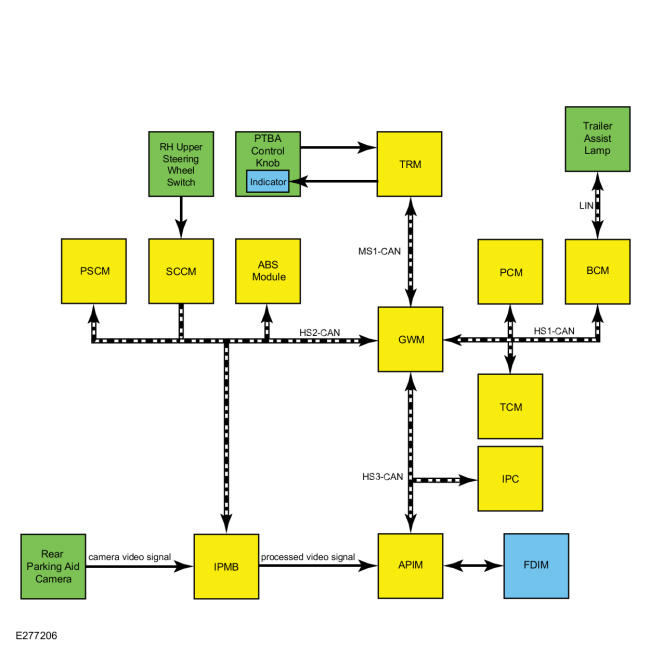

Pro Trailer Backup Assist™ System Diagram

GFD274459Courtesy of FORD MOTOR COMPANY
Item Description
1 FDIM
2 camera video signal
3 processed video signal
4 PCM
5 TCM
6 ABS Module
7 PSCM
8 GVW
9 APIM
10 Rear parking aid camera
11 IPMB
12 IPC
13 SCCM
14 TRM
15 BCM
16 PTBA control knob
17 Indicator
18 RH upper steering wheel switch
19 Trailer assist lamp
