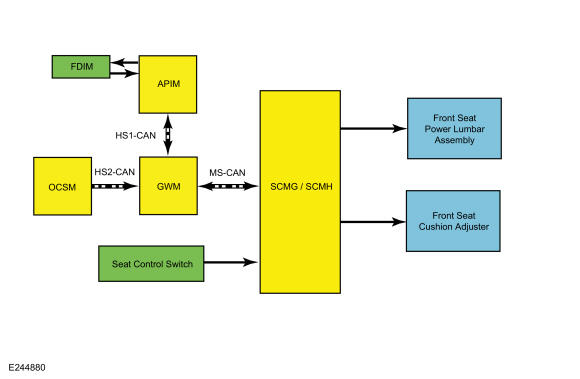

System Diagram - Multi-Contour Front Seats
Courtesy of FORD MOTOR COMPANY
Item
Description
1
FDIM
2
APIM
3
HS1-CAN
4
GWM
5
MS-CAN
6
Seat Control Switch
7
SCMG / SCMH
8
Front Seat Cushion Adjuster
9
Front Seat Power Lumbar Assembly
10
HS2-CAN
11
OCSM
