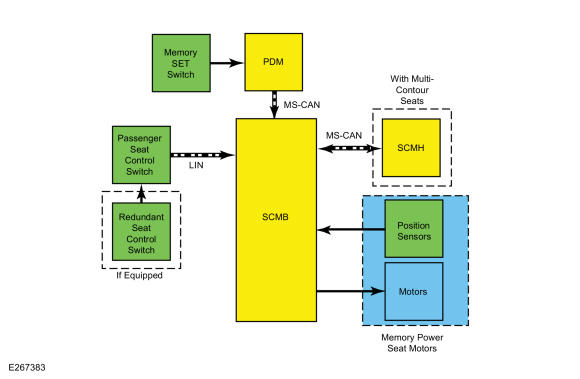

System Diagram - Passenger Memory Seat

GFD275073Courtesy of FORD MOTOR COMPANY
Item Description
1 Memory Power Seat Motors
2 SCMB
3 MS-CAN
4 PDM
5 Motors
6 LIN
7 SCMH
8 MS-CAN
9 With Multi- Contour Seats
10 Passenger Seat Control Switch
11 Memory SET Switch
12 Position Sensors
13 Redundant Seat Control Switch
14 If Equipped
