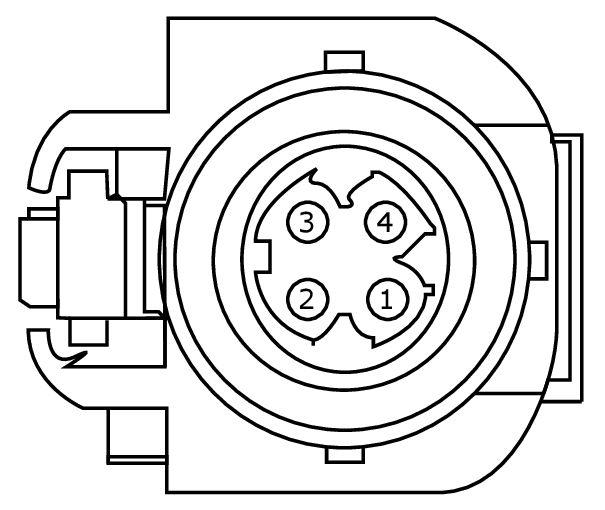

Connector End View C2253 - Front Display Interface Module (FDIM)
DESCRIPTION
FRONT DISPLAY INTERFACE MODULE (FDIM)
COLOR
HARNESS
PIA
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (*) |
* |
GROUNDS |
| 2 |
* (*) |
* |
COMMUNICATION - |
| 3 |
* (*) |
* |
POWER |
| 4 |
* (*) |
* |
COMMUNICATION + |
