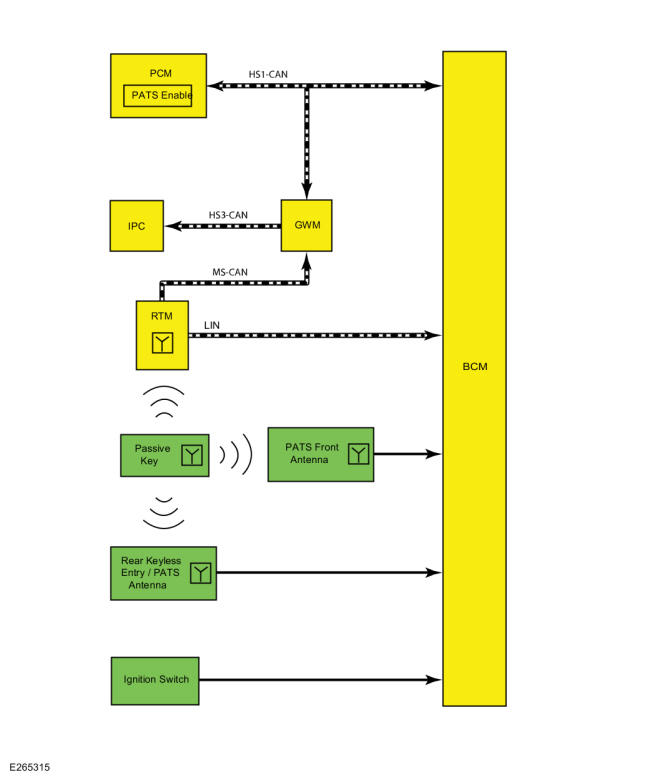

System Diagram

GFD274651Courtesy of FORD MOTOR COMPANY
Item Description
1 BCM
2 Passive Key
3 Rear Keyless Entry / PATS Antenna
4 PATS Front Antenna
5 Ignition Switch
6 IPC
7 GWM
8 PATS Enable
9 PCM
10 RTM
