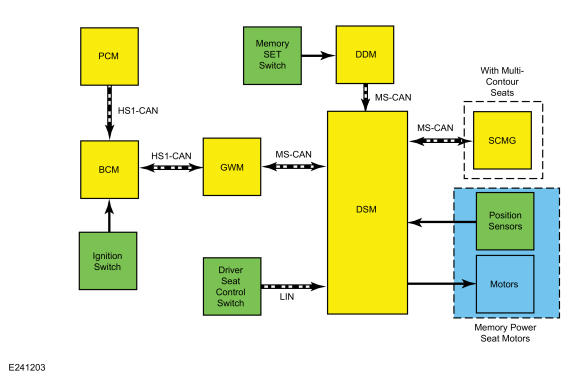

System Diagram - Driver Memory Seat

GFD275072Courtesy of FORD MOTOR COMPANY
Item Description
1 Memory Power Seat Motors
2 HS1-CAN
3 PCM
4 HS1-CAN
5 GWM
6 MS-CAN
7 DSM
8 MS-CAN
9 DDM
10 Motors
11 LIN
12 BCM
13 SCMG
14 MS-CAN
15 With Multi- Contour Seats
16 Ignition Switch
17 Driver Seat Control Switch
18 Memory SET Switch
19 Position Sensors
