Pinpoint Test QB: Keep Alive Power (KAPWR): Introduction

This pinpoint test is intended to diagnose the following:

• battery terminal condition
• KAPWR wire routing
• harness circuit: KAPWR
• powertrain control module (PCM) (12A650)

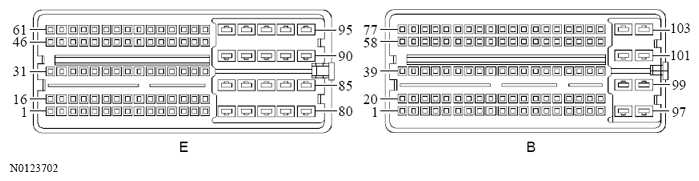

Fig 1: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side
