Pinpoint Test HU: Intake Air Systems: Introduction

This pinpoint test is intended to diagnose the following:

air cleaner assembly (including air cleaner element) (9600)
air inlet tube (9F843)
clean air tube hose and resonator (9R504) and (9F593)
intake manifold runner control bank 1 (IMRC1) solenoid (9J559)
intake manifold runner control bank 2 (IMRC2) solenoid (9J559)
intake manifold runner control bank 1 (IMRC1) sensor (9P471)
intake manifold runner control bank 2 (IMRC2) sensor (9P471)
throttle body assembly (9E926)
harness circuits: IMRC, IMRC1, IMRC1A, IMRC2, IMRC2A, SIGRTN, VPWR and VREF
PCM (12A650)

Fig 1: Intake Manifold Runner Control Bank 1 (IMRC1) Solenoid Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
IMRC1A (Intake Manifold Runner Control Bank 1 Actuator)	2
VPWR (Vehicle Power)	1

Fig 2: Intake Manifold Runner Control Bank 1 (IMRC1) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VREF (Reference Voltage)	2
IMRC1 (Intake Manifold Runner Control Bank 1)	1
SIGRTN (Signal Return)	3

Fig 3: Intake Manifold Runner Control Bank 2 (IMRC2) Solenoid Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
IMRC2A (Intake Manifold Runner Control Bank 2 Actuator)	2
VPWR (Vehicle Power)	1

Fig 4: Intake Manifold Runner Control Bank 2 (IMRC2) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VREF (Reference Voltage)	2
IMRC2 (Intake Manifold Runner Control Bank 2)	1
SIGRTN (Signal Return)	3

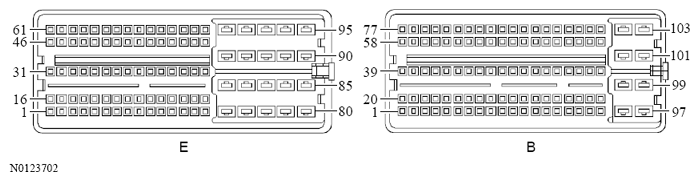

Fig 5: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side

Circuit
