Driver Side Register: Removal

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

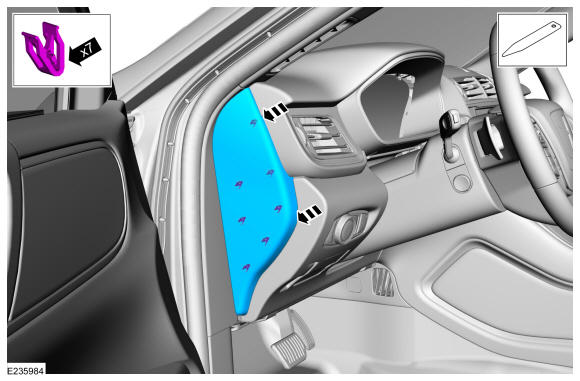

  1. Release the clips and remove the LH instrument panel side trim panel. Use the General Equipment: Interior Trim Remover.
    GFD238023Courtesy of FORD MOTOR COMPANY

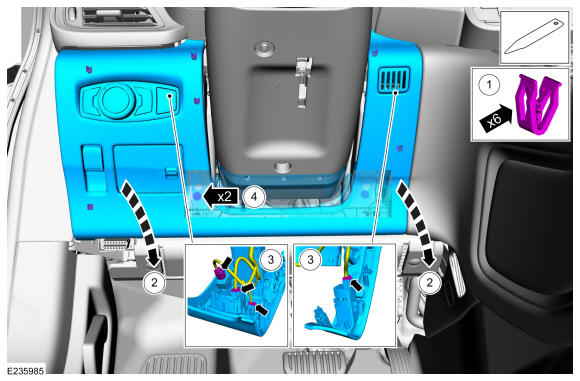

    1. Release the clips. Use the General Equipment: Interior Trim Remover.
    2. Position the steering column opening trim panel.
    3. Disconnect the electrical connectors.
    4. Remove the bolts and the steering column opening trim panel.

      Torque: 22 lb.in (2.5 Nm)

    GFD238024Courtesy of FORD MOTOR COMPANY

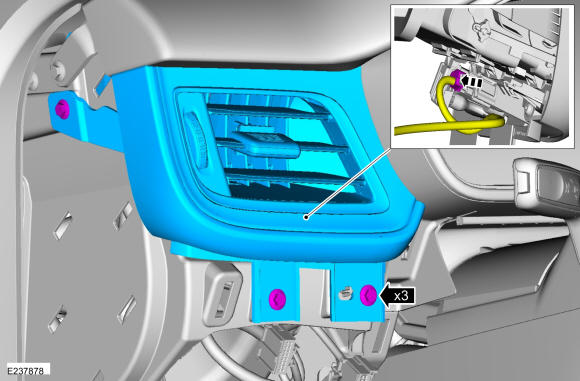

  3. Remove the bolts and the LH instrument panel register.

    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    GFD238025Courtesy of FORD MOTOR COMPANY

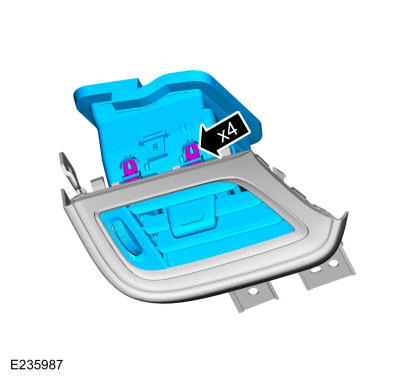

  4. Release the clips and remove the driver side register.
GFD238026Courtesy of FORD MOTOR COMPANY
