Pinpoint Test Hp: High Pressure Fuel Delivery System: Introduction

NOTE: Do not apply battery voltage across the fuel injection pump circuits. Damage to the fuel volume regulator solenoid may result.

This pinpoint test is intended to diagnose the following:

Fig 1: Fuel Injection Pump Connector
G13533265Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
FVR (Fuel Volume Regulator) 2
FVRRTN (Fuel Volume Regulator Return) 1

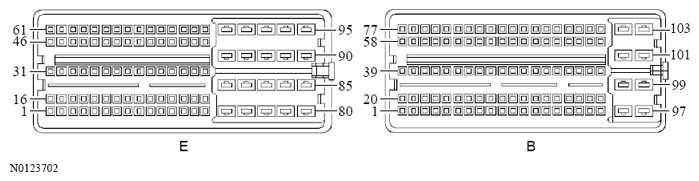

Fig 2: Powertrain Control Module (PCM) Connector - For PCM Connector Views
G13533266Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
FVR (Fuel Volume Regulator) E79
FVRRTN (Fuel Volume Regulator Return) E84
