Timing Chain: Installation

LH timing chain

  1. Install the timing chain sprocket.
    GFD531099Courtesy of FORD MOTOR COMPANY
  2. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.

    1. Install the LH timing chain with the single colored links aligned with the circle  timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    GFD531100Courtesy of FORD MOTOR COMPANY
  3. Install the LH timing chain guide and bolts.

    Torque: 89 lb. in (10 Nm)

    GFD531097Courtesy of FORD MOTOR COMPANY
  4. Install the LH timing chain tensioner arm.
    GFD531096Courtesy of FORD MOTOR COMPANY
  5. Slide the tensioner cylinder out of the LH timing chain tensioner housing.
    GFD531101Courtesy of FORD MOTOR COMPANY
  6. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

    Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

    1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors Use the General Equipment: Flat-Bladed Screwdriver
    2. Rotate the screwdriver clockwise approximately one turn.
    3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

    GFD531102Courtesy of FORD MOTOR COMPANY
  7. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.
    GFD531103Courtesy of FORD MOTOR COMPANY
    1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0. 125 in) below the top of the housing.
    2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.
    GFD531104Courtesy of FORD MOTOR COMPANY
    1. Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the bolts.

      Torque: 89 lb. in (10 Nm)

    3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.
    GFD531105Courtesy of FORD MOTOR COMPANY
  8. Install the crankshaft sprocket.
    GFD531094Courtesy of FORD MOTOR COMPANY

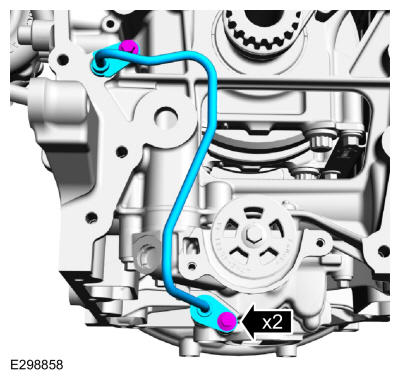

  9. Remove the bolts and the oil pump return tube.
    GFD531106Courtesy of FORD MOTOR COMPANY
  10. Remove and discard the O-ring seals.
    GFD531071Courtesy of FORD MOTOR COMPANY

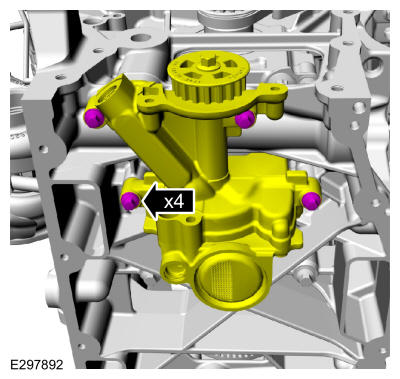

  11. NOTE: Loosening the oil pump bolts will aid in the installation of the oil pump drive belt.

    Loosen the oil pump bolts 5 turns.

    GFD531079Courtesy of FORD MOTOR COMPANY

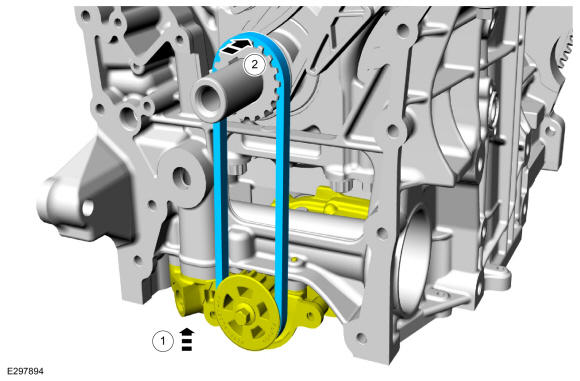

    1. Position the oil pump drive belt onto the oil pump sprocket and raise the front of the oil pump.
    2. Slide the oil pump drive belt onto the crankshaft sprocket.
    GFD531080Courtesy of FORD MOTOR COMPANY

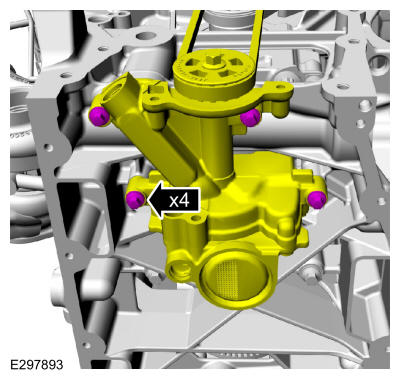

  12. Tighten the oil pump bolts.

    Torque: Stage 1: 89 lb. in (10 Nm) Stage 2: 45°

    GFD531081Courtesy of FORD MOTOR COMPANY

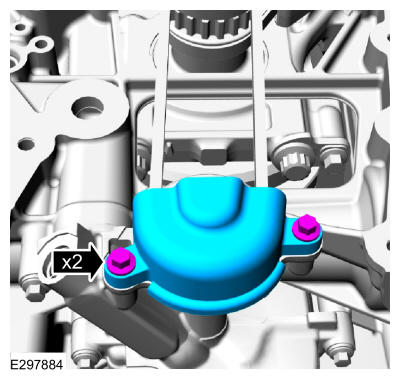

  13. Install the splash shield and the bolts.

    Torque: 89 lb. in (10 Nm)

    GFD531072Courtesy of FORD MOTOR COMPANY
    1. Install new O-ring seals.
    2. Lubricate the O-ring seals with clean engine oil.
    GFD531075Courtesy of FORD MOTOR COMPANY

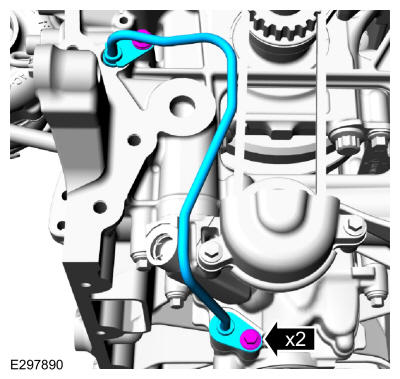

  14. Install the oil pump return tube and the bolts.

    Torque: 89 lb. in (10 Nm)

    GFD531077Courtesy of FORD MOTOR COMPANY
  15. Install the original crankshaft pulley bolt.
    GFD531090Courtesy of FORD MOTOR COMPANY

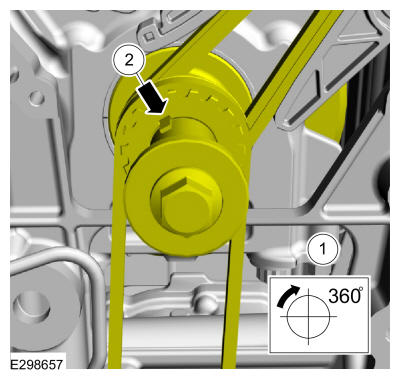

  16. NOTE: The crankshaft must be rotated clockwise one revolution (360 degrees). Failure to do so will result in incorrect camshaft timing.

    1. Rotate the crankshaft clockwise one revolution (360 degrees).
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.

    GFD531107Courtesy of FORD MOTOR COMPANY

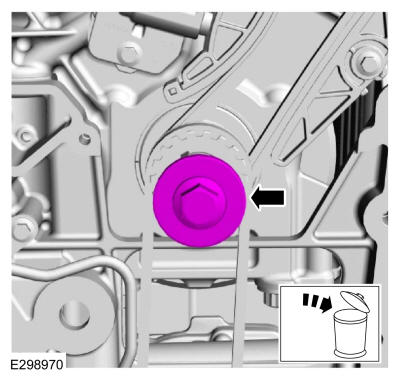

  17. Remove and discard the original crankshaft pulley bolt.
    GFD531108Courtesy of FORD MOTOR COMPANY

    RH and LH timing chains

  18. Install the timing chain sprocket.
    GFD531089Courtesy of FORD MOTOR COMPANY
  19. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.

    1. Install the RH timing chain with the single colored links aligned with the triangle  timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    GFD531109Courtesy of FORD MOTOR COMPANY
  20. Install the RH timing chain guide and bolts.

    Torque: 89 lb. in (10 Nm)

    GFD531086Courtesy of FORD MOTOR COMPANY
  21. Install the RH timing chain tensioner arm.
    GFD531085Courtesy of FORD MOTOR COMPANY
  22. Slide the tensioner cylinder out of the RH timing chain tensioner housing.
    GFD531110Courtesy of FORD MOTOR COMPANY
  23. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

    Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

    1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors Use the General Equipment: Flat-Bladed Screwdriver
    2. Rotate the screwdriver clockwise approximately one turn.
    3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

    GFD531102Courtesy of FORD MOTOR COMPANY
  24. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.
    GFD531111Courtesy of FORD MOTOR COMPANY
    1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0. 125 in) below the top of the housing.
    2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.
    GFD531112Courtesy of FORD MOTOR COMPANY
    1. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the bolts.

      Torque: 89 lb. in (10 Nm)

    3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.
    GFD531113Courtesy of FORD MOTOR COMPANY
  25. Install the engine front cover.
