Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.
NOTE: The PAM is integral to the BCM. This step is only necessary if the BCM is being replaced.

Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.
Remove the glove compartment. Refer to: Glove Compartment .

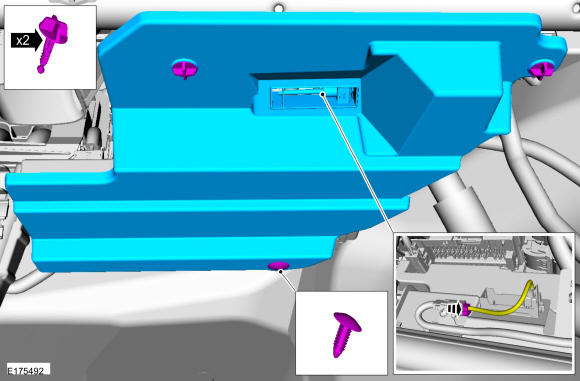

Remove the lower RH side instrument panel insulator.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

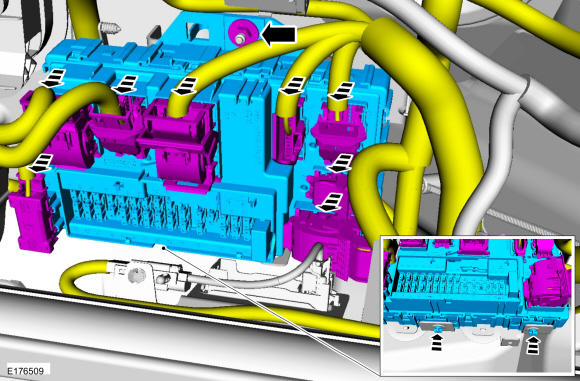

Disconnect the 8 electrical connectors, remove the fastener and the BCM.
Torque:

44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
