Driveshaft Alignment Bushing: Assembly

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not over-lubricate the driveshaft components. Using excessive grease may damage the driveshaft components.

NOTE: Wipe off any excess grease.

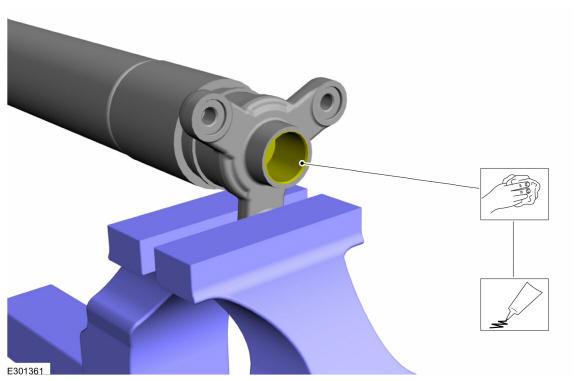

Clean and lubricate the driveshaft flange at alignment bushing mating surface.. Use the General Equipment: Vise

Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY

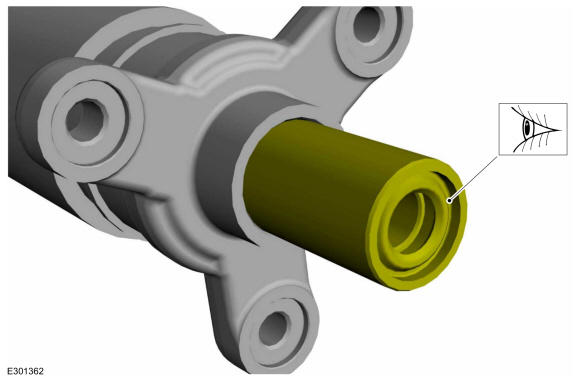

NOTE: Make sure that new components are installed.

NOTE: Make sure that the rubber seal end of the bushing is facing outward.

NOTE: Press the component by hand initially.

Position the driveshaft alignment bushing into the driveshaft.

Courtesy of FORD MOTOR COMPANY

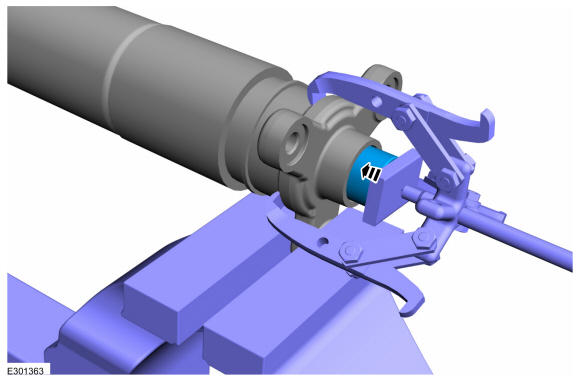

Using the general equipments, press-in the new driveshaft alignment bushing until it has bottomed out inside of the driveshaft flange.. Use the General Equipment: Vise. Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY
Ensure the final press in height of the new driveshaft alignment bushing should be 16 mm as shown.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not over-lubricate the driveshaft components. Using excessive grease may damage the driveshaft components.

NOTE: Wipe off any excess grease.

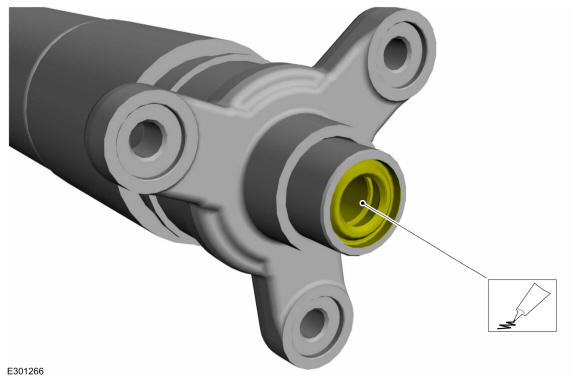

Lubricate the driveshaft alignment bushing cavity with grease before installing the driveshaft.

Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY
Install the driveshaft flexible coupling. Refer to: Driveshaft Flexible Coupling .
Install the rear driveshaft. Refer to: Rear Driveshaft .
