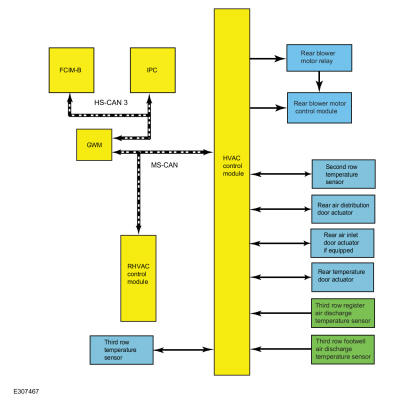

System Diagram - Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module - Vehicles With: Triple Zone Automatic Temperature Control

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
