Radio Transceiver Module (RTM): Removal
WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Carry out the PMI procedure for the RTM. Refer to: Module Configuration - System Operation and Component Description .
- Lower the headliner. Refer to: Headliner - Lowering .

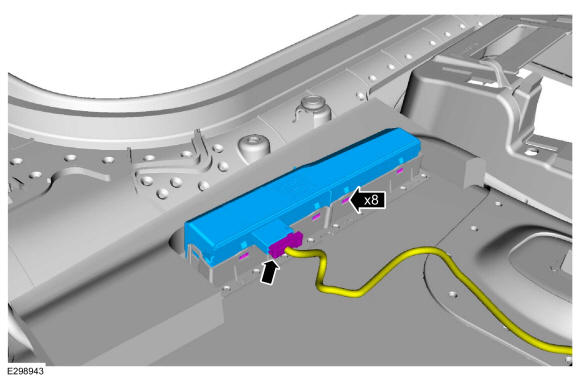

- Release the tabs and remove the RTM from the bracket.
- Disconnect the electrical connector.
