Second Row Seat Climate Control Module: Removal

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The SCMF (rear seat climate control module) is located under the RH (right-hand) second row seat cushion frame.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI (programmable module installation) process must begin with the current SCMF (rear seat climate control module) installed. If the current SCMF (rear seat climate control module) does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using the diagnostic scan tool, begin the PMI process for the SCMF following the on-screen instructions.

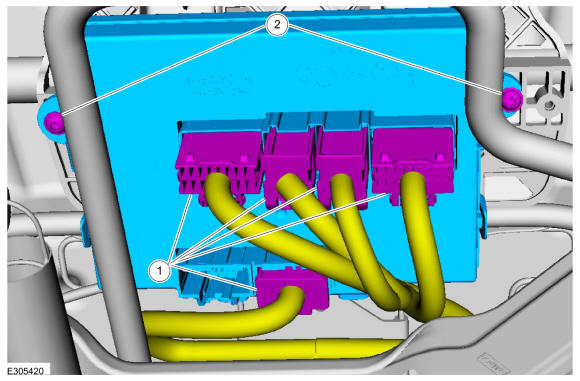

Remove the SCMF.
1. Disconnect the SCMF electrical connectors.
2. Remove the SCMF screws.
  Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
