Second Row Blower Motor Control Module: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the floor console. Refer to: Floor Console .

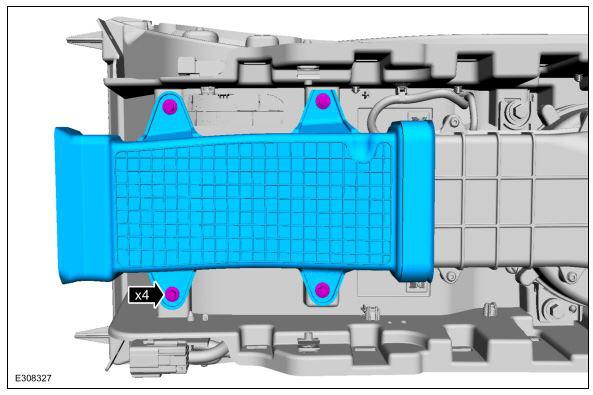

Remove the bolts the front duct section.
Torque: 25 lb.in (2.77 Nm)

Courtesy of FORD MOTOR CO.

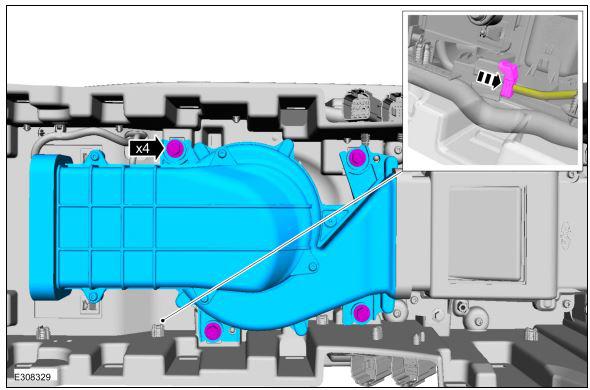

Remove the bolts and the second row blower motor control module.
- Disconnect the electrical connector.
  Torque: 71 lb.in (8.0 Nm)
Courtesy of FORD MOTOR CO.
