Fuel Pump Driver Module (FPDM): Installation

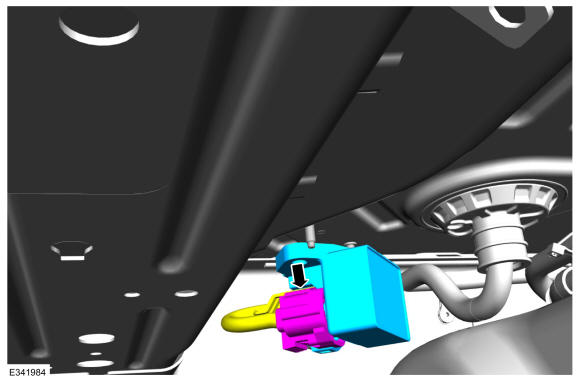

  1. Connect the fuel pump driver module electrical connector.
    GFD619199Courtesy of FORD MOTOR COMPANY

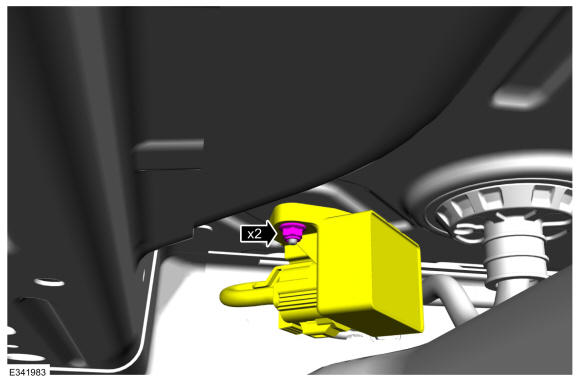

  2. Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.

    Torque

    : 36 lb.in (4.1 Nm)

    GFD619198Courtesy of FORD MOTOR COMPANY

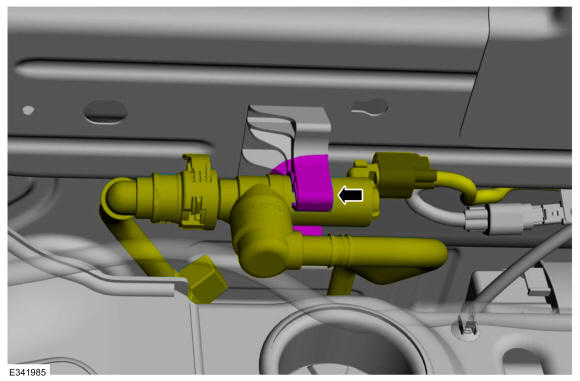

  3. Position back the EVAP blocking valve and hoses.
GFD619197Courtesy of FORD MOTOR COMPANY
