Gear Shift Module (GSM): Installation

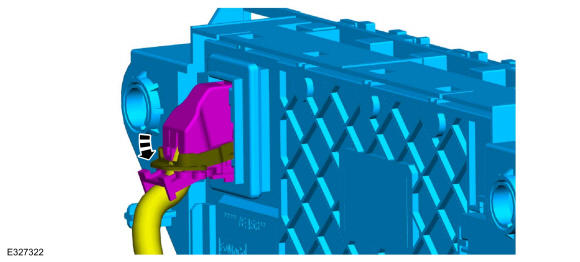

- Connect the GSM electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

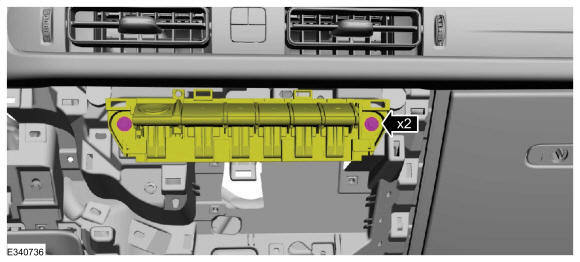

- Install the GSM and the screws.
 Courtesy of FORD MOTOR COMPANY
|

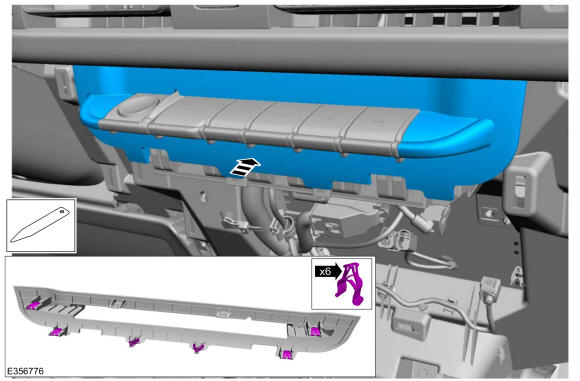

- Install the GSM finish panel.
 Courtesy of FORD MOTOR COMPANY
|

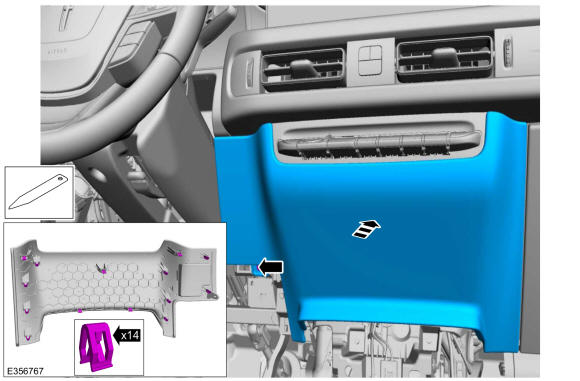

- Install the trim panel and the screw.
 Courtesy of FORD MOTOR COMPANY
|
- Install the floor console. Refer to: Floor Console
.
- Install the driver knee air bag. Refer to: Driver Knee Airbag
.
- If a new GSM was installed, verify the calibration is at the latest level. Refer to: Module Programming
.
