System Diagrams
NOTE:
The Phone As A Key feature can also be used to lock/unlock the vehicle. Refer to Passive Anti-Theft System (PATS) - System Operation and Component Description
for information regarding this feature.
NOTE:
Not all vehicles come equipped with all the items listed in the system diagrams. The door latch control modules are identified as follows:
- Left front door - DCME
- Right front door - DCMF
- Left rear door - DCMG
- Right rear door - DCMH

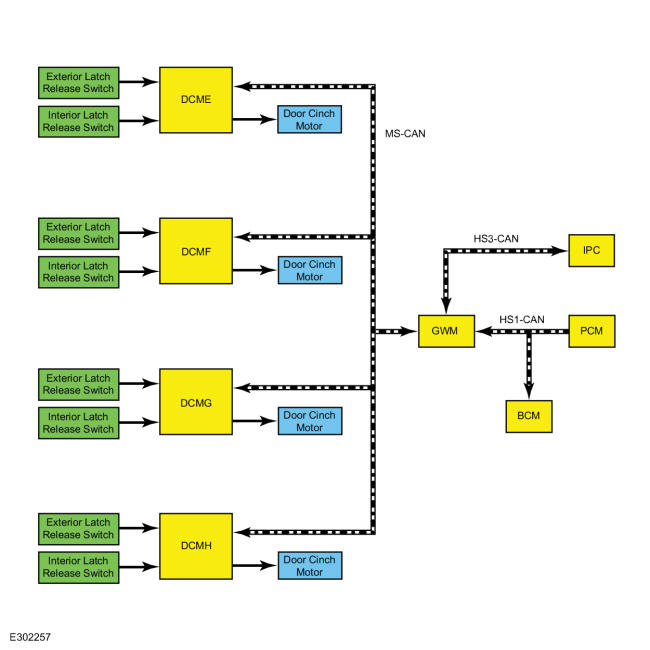

Door Unlatch Request and Door Cinch

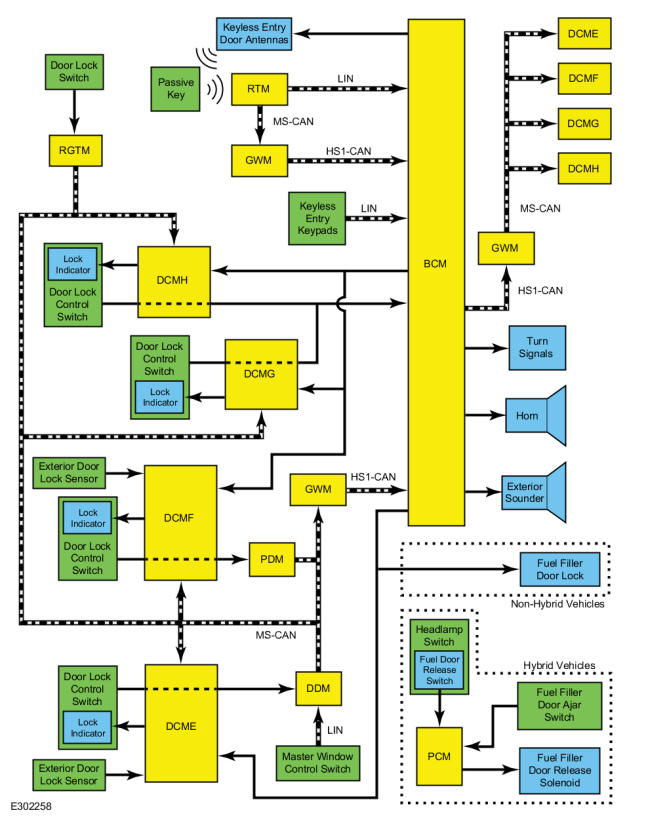

Door Lock/Unlock

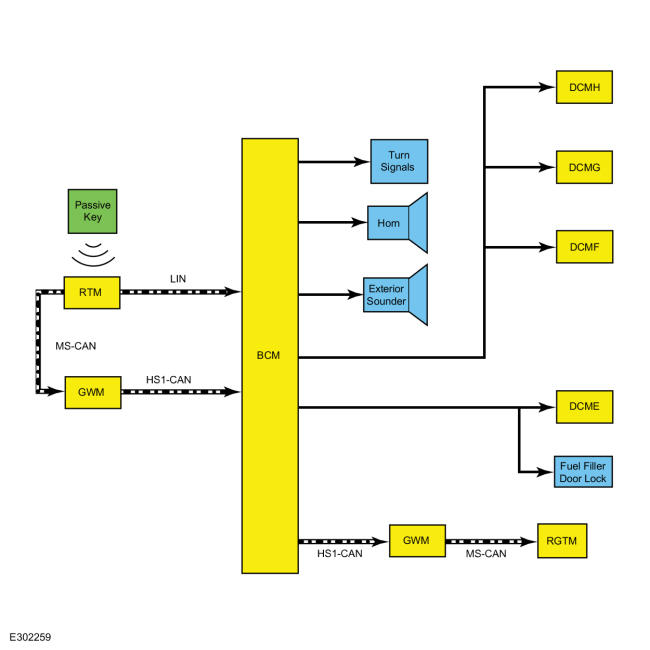

RKE Transmitter

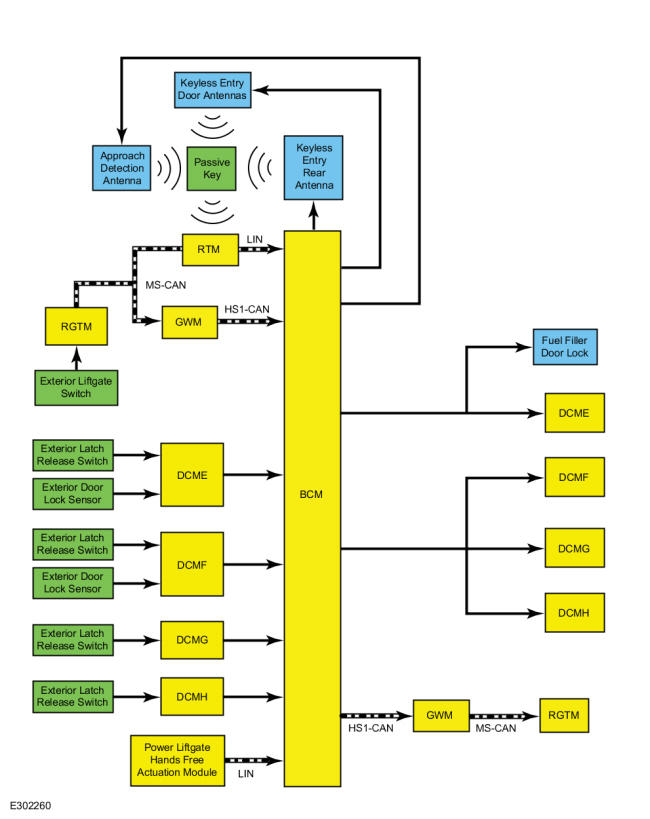

Approach Detection and Passive Entry
