Pedestrian Alert Control Module (PACM): Removal

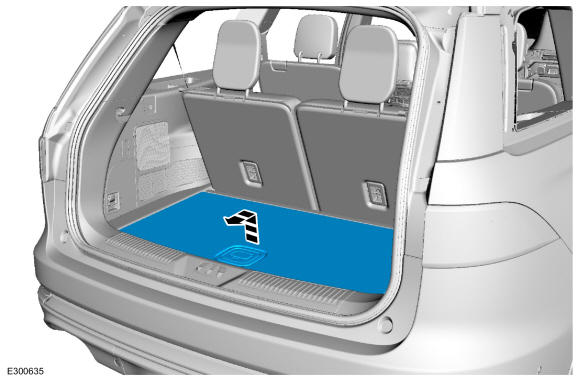

  1. Remove the luggage compartment floor cover.
    GFD798931Courtesy of FORD MOTOR COMPANY

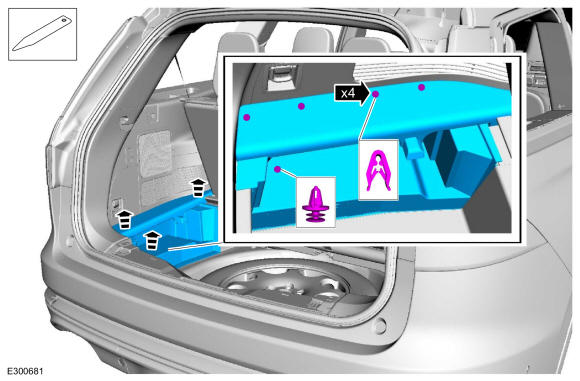

  2. Release the clips and the luggage compartment side trim panel.Use the General Equipment: Interior Trim Remover
    GFD798932Courtesy of FORD MOTOR COMPANY

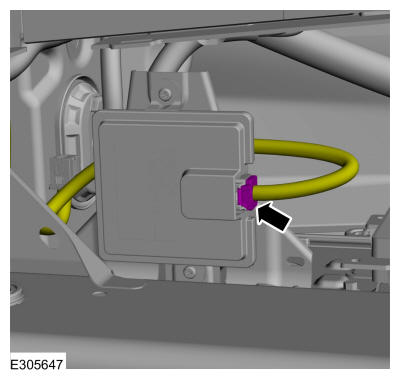

  3. Disconnect the electrical connectors and position the wiring harness aside.
    GFD798933Courtesy of FORD MOTOR COMPANY

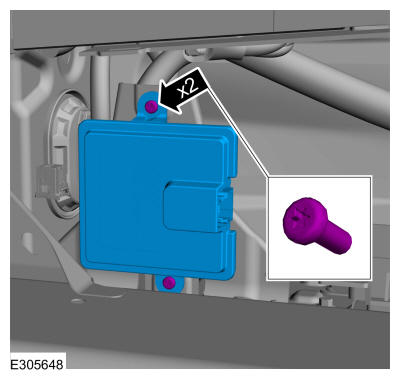

  4. Remove the screws and the PACM.
GFD798934Courtesy of FORD MOTOR COMPANY
