System Diagrams

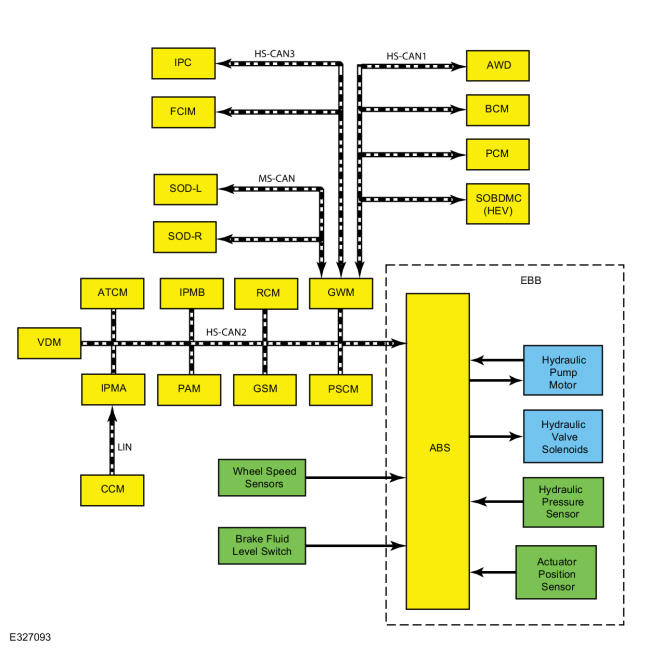

Anti-Lock Brake System (ABS) and Stability Control

GFD795700Courtesy of FORD MOTOR COMPANY

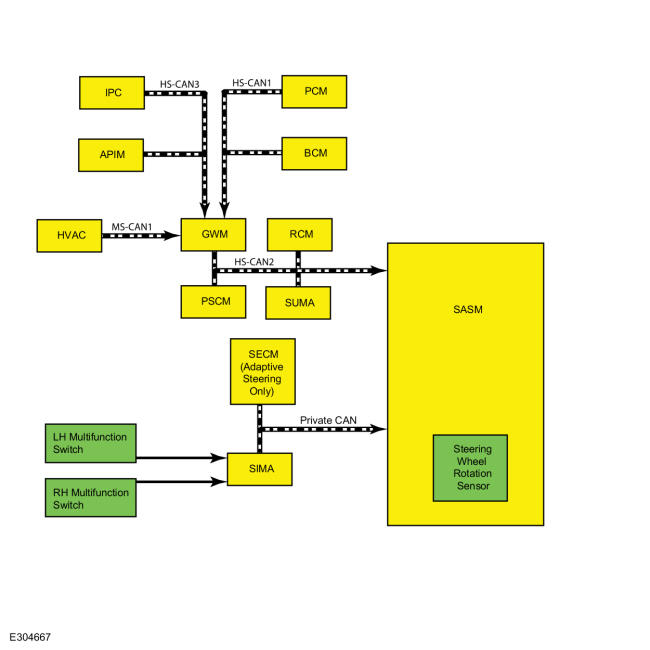

Steering Angle Sensor Module (SASM) -- Vehicles With Adaptive Steering

GFD795701Courtesy of FORD MOTOR COMPANY
