Connector Repair Procedures

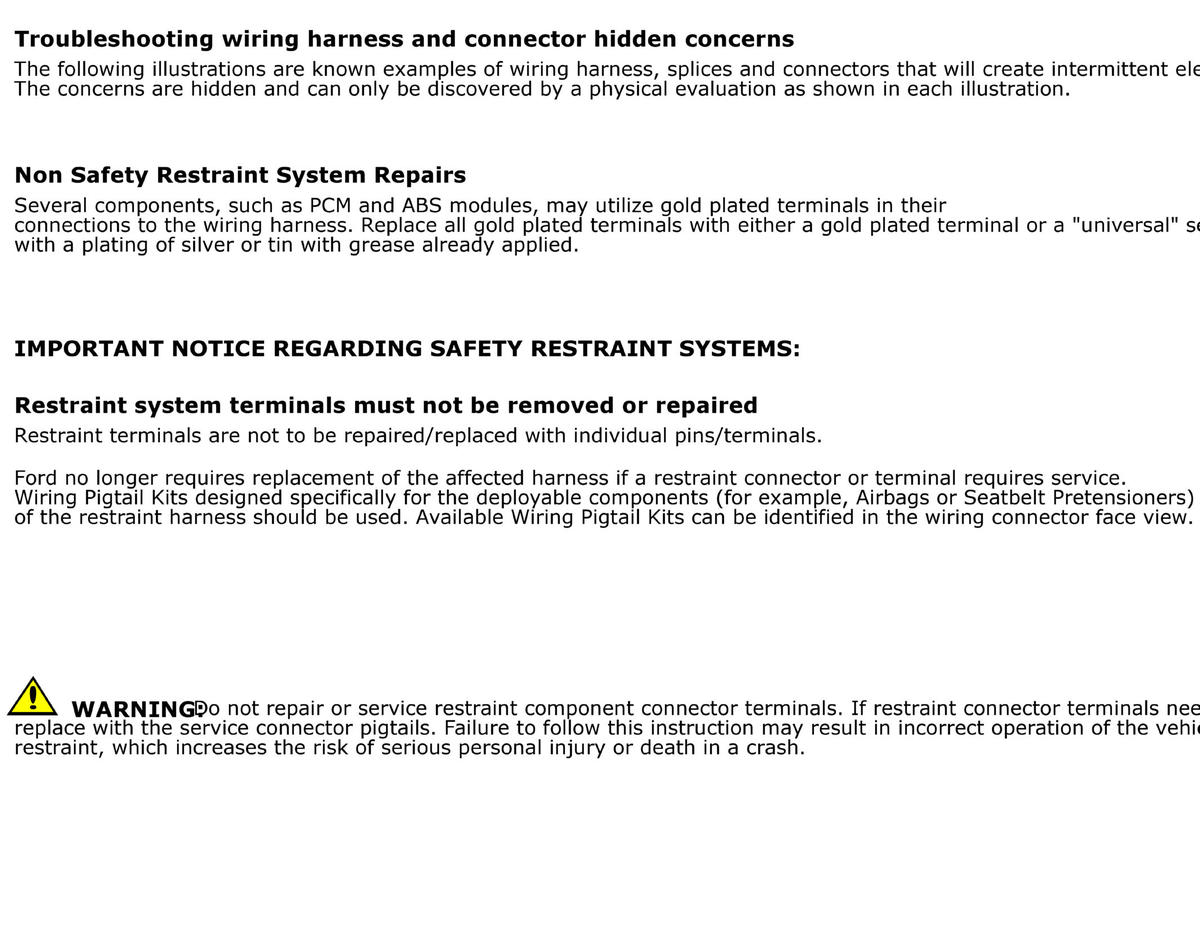

GFDWR218441Courtesy of FORD MOTOR COMPANY

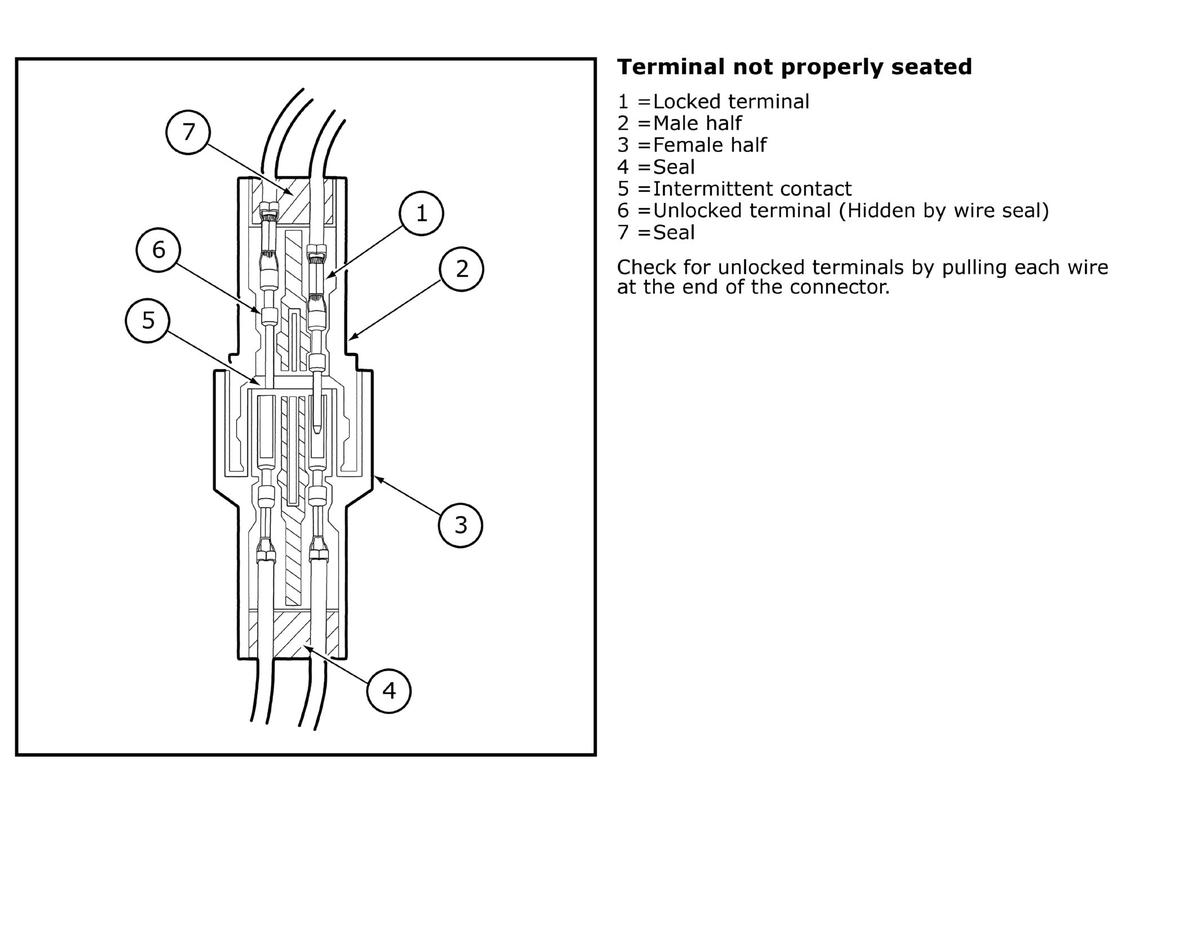

GFDWR218442Courtesy of FORD MOTOR COMPANY

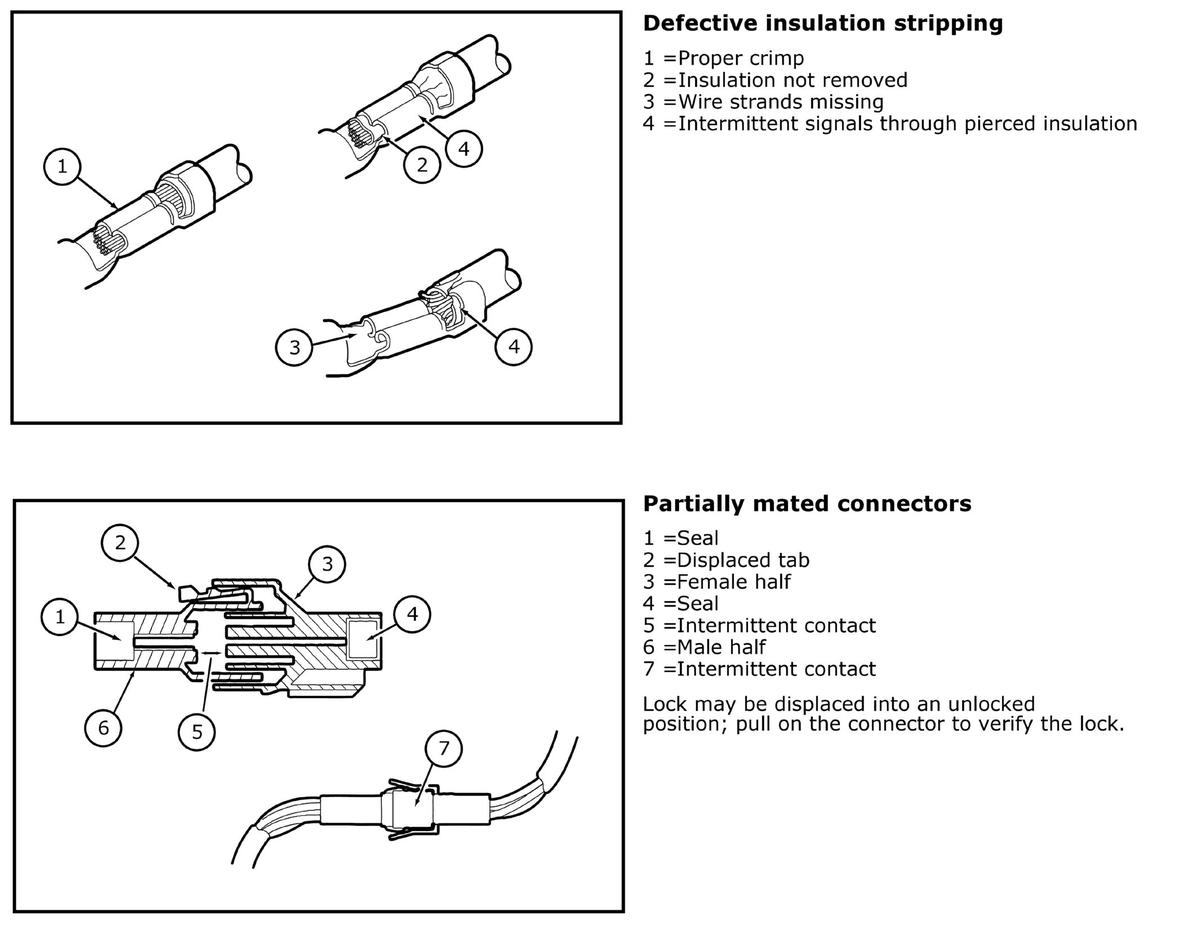

GFDWR218443Courtesy of FORD MOTOR COMPANY

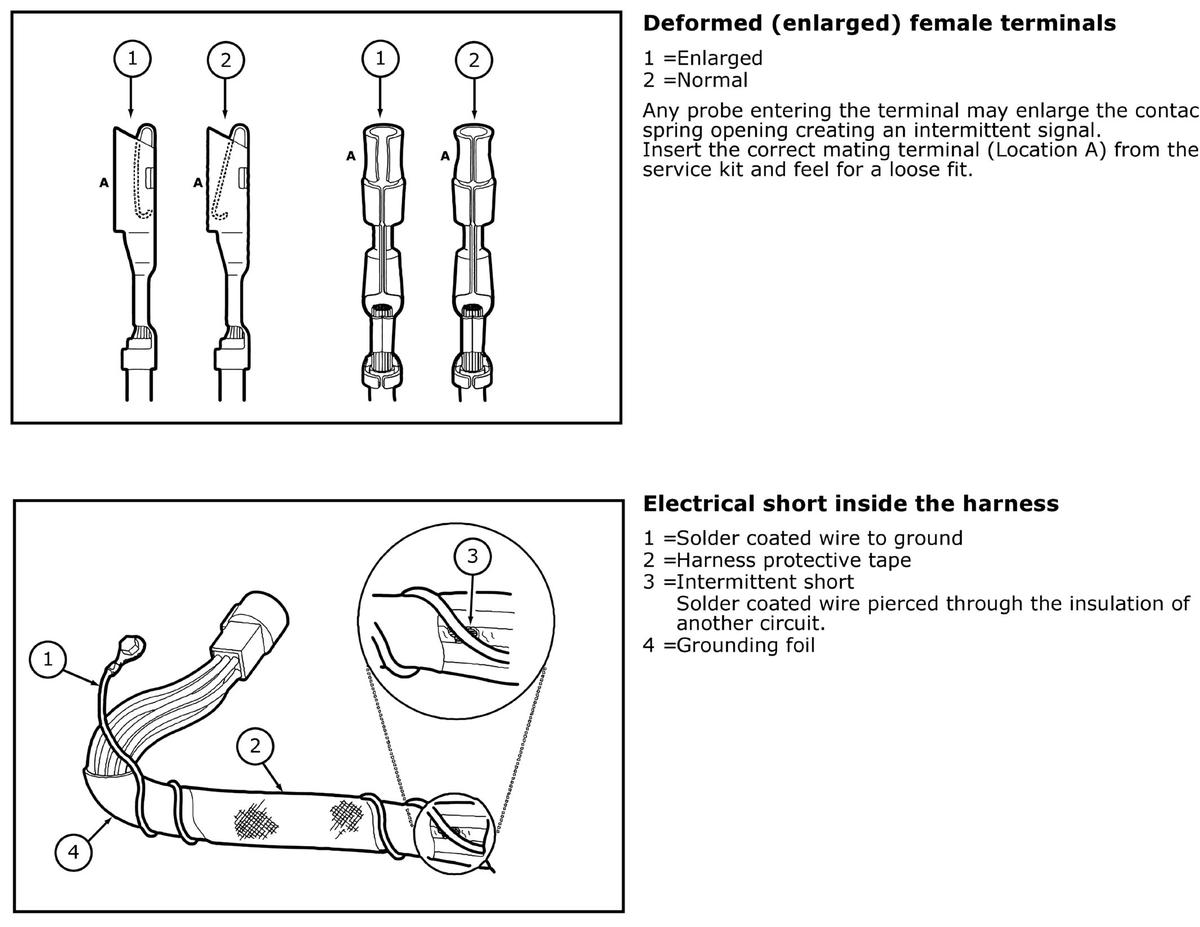

GFDWR218444Courtesy of FORD MOTOR COMPANY

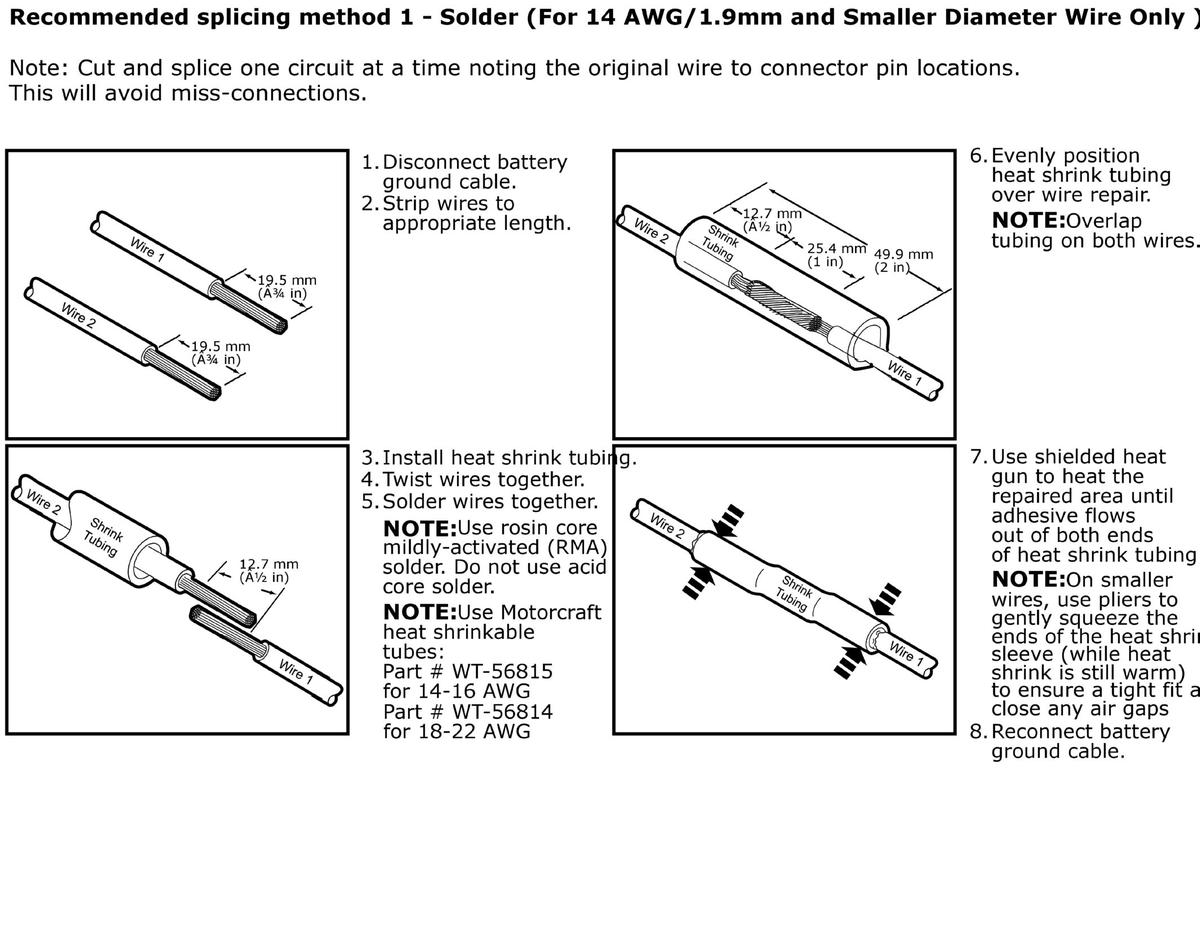

GFDWR218445Courtesy of FORD MOTOR COMPANY

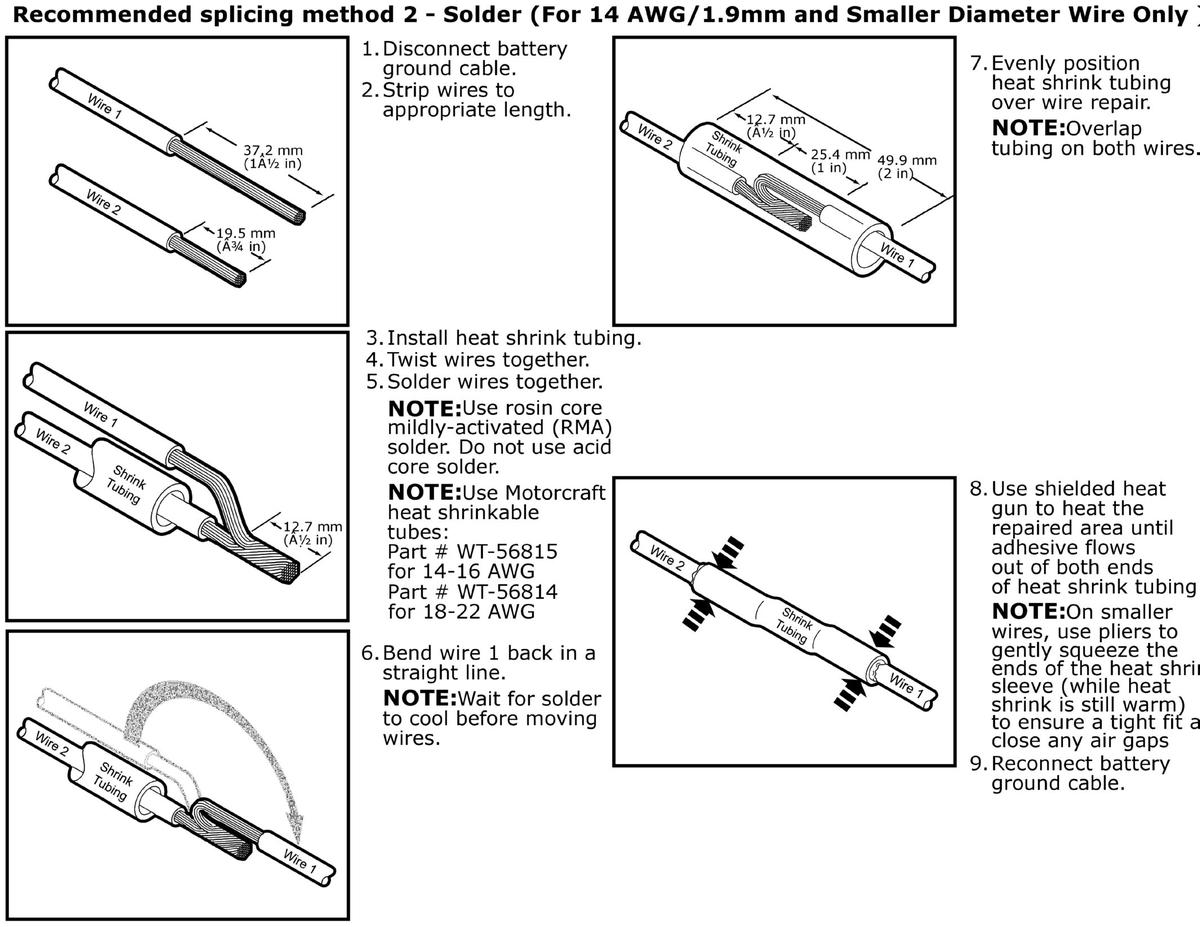

GFDWR218446Courtesy of FORD MOTOR COMPANY

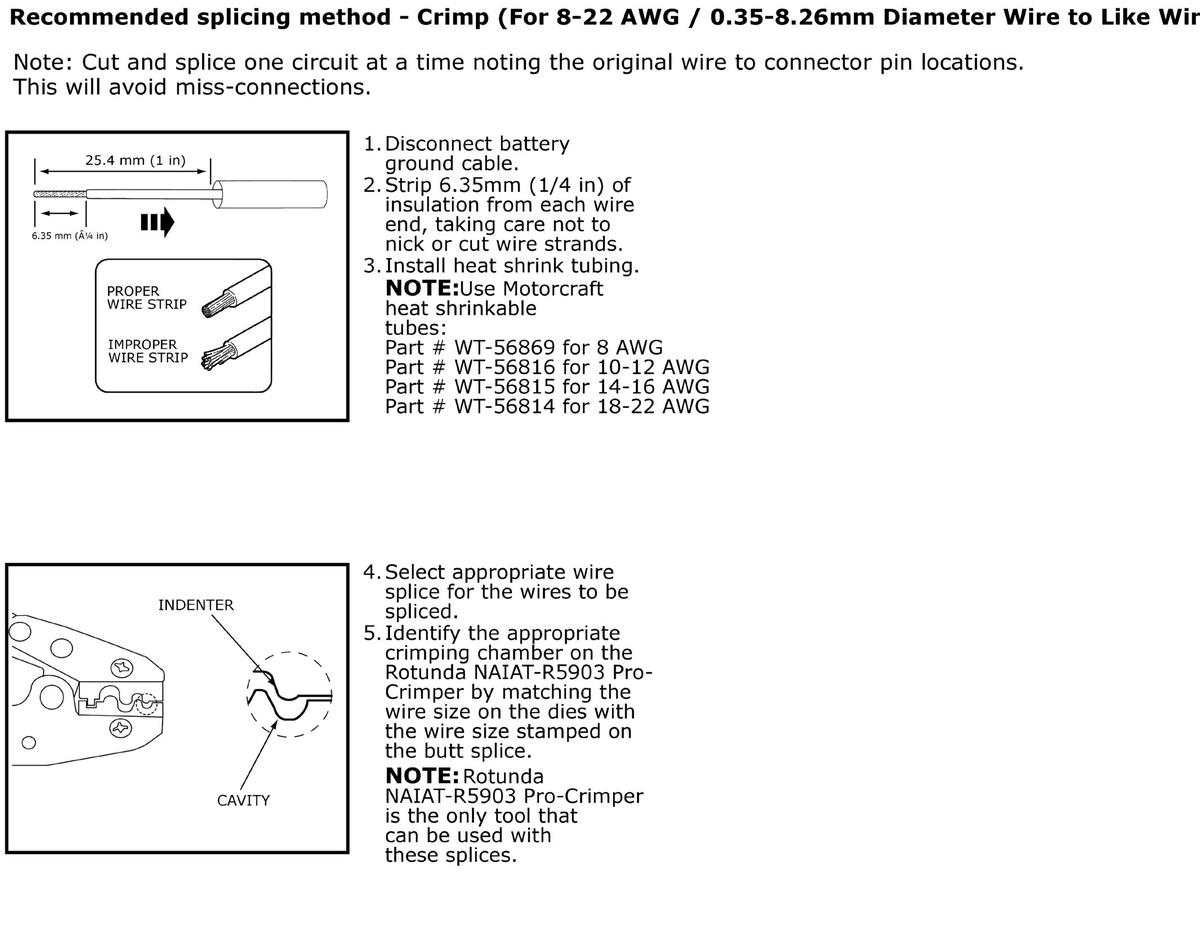

GFDWR218447Courtesy of FORD MOTOR COMPANY

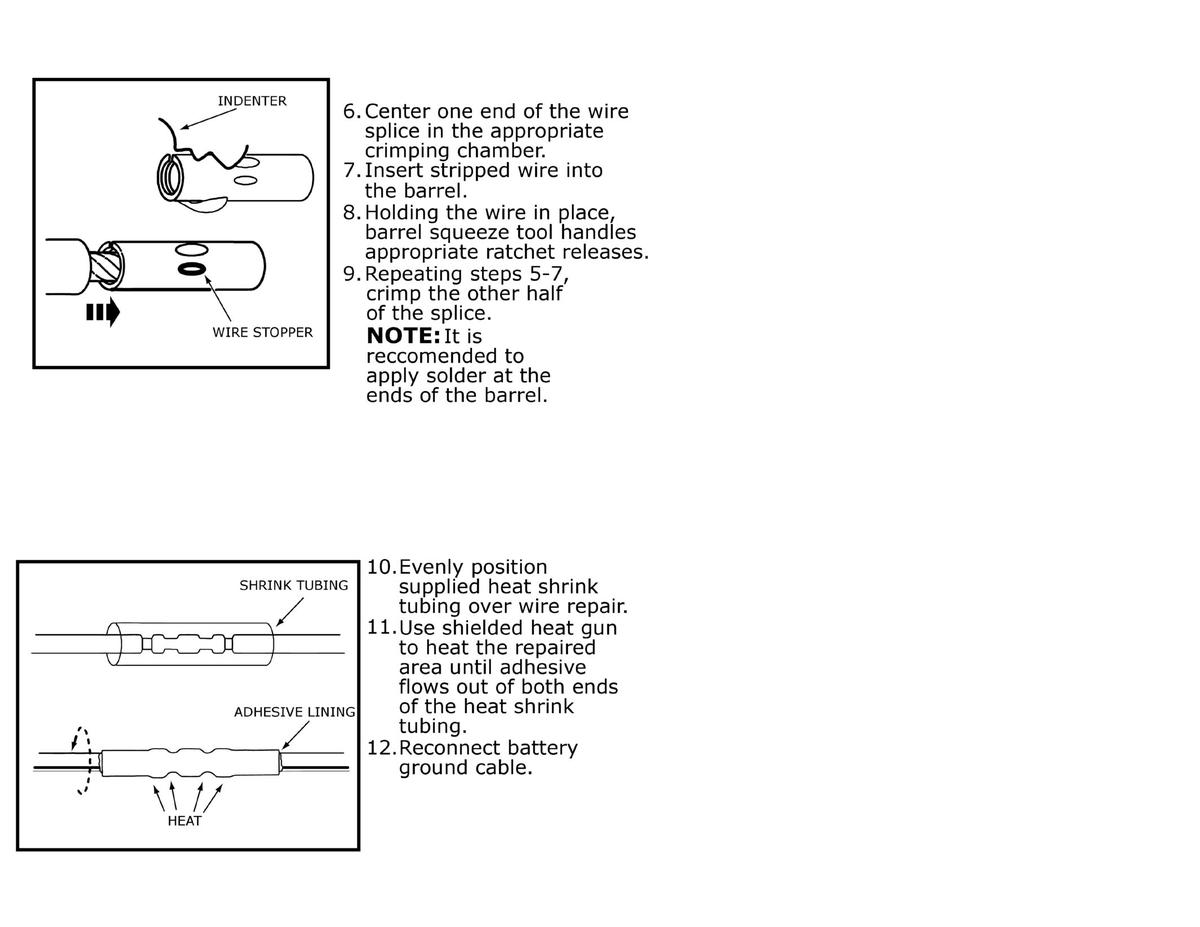

GFDWR218448Courtesy of FORD MOTOR COMPANY

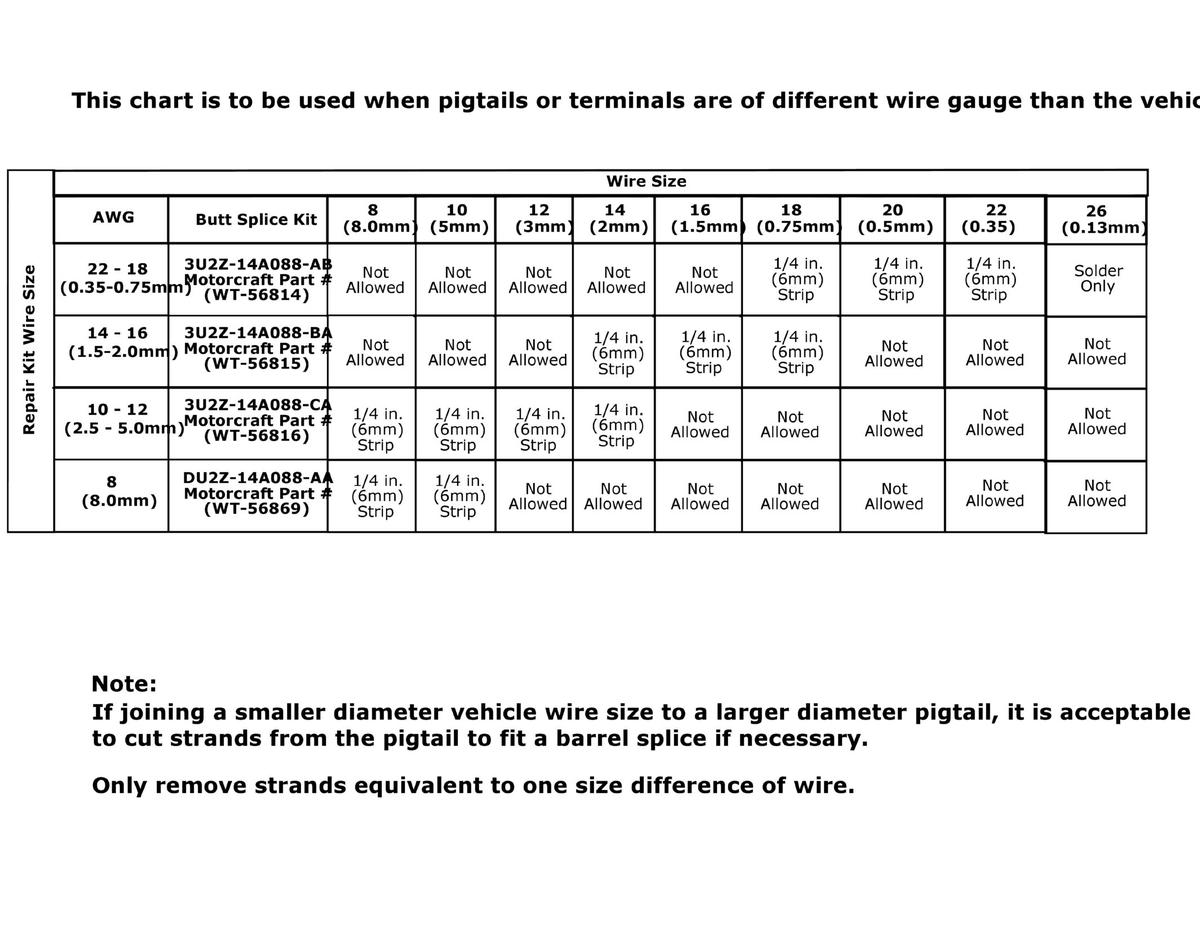

GFDWR218449Courtesy of FORD MOTOR COMPANY
