All-Wheel Drive (AWD) Module: Installation

  1. To install, reverse the removal procedure.
  2. NOTE: Carry out the remaining steps only if installing a new all - wheel drive module.

    Using the scan tool, complete the PMI process for the AWD module following the on-screen instructions.

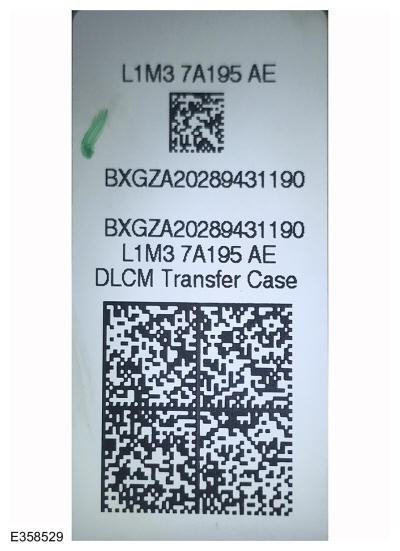

  3. NOTE: The transfer case 16-Digit alpha numeric bar code is located on the label attached to the transfer case.

    Using the scan tool, complete the Active Torque Coupling Configuration for the AWD module.

GFD798335Courtesy of FORD MOTOR COMPANY
