Transfer Case Control Module (TCCM): Removal

  1. Remove the CJB cover.

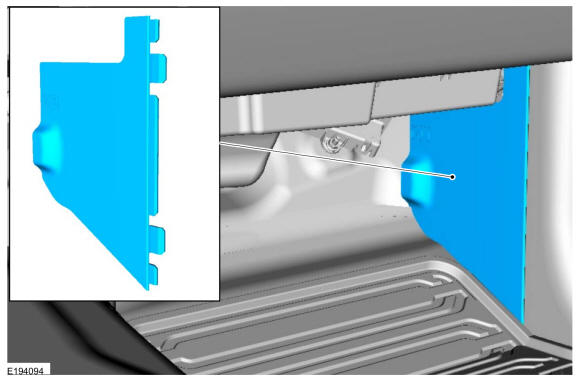

    GFD707446Courtesy of FORD MOTOR COMPANY
  2. Remove and disconnect the lower access panel.

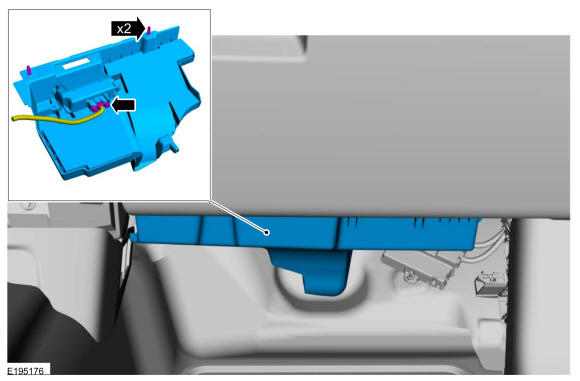

    GFD707447Courtesy of FORD MOTOR COMPANY
  3. NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LH TCCM nut when removing the TCCM.

    Loosen the LH (Left-hand) TCCM nut and remove the RH (right-hand) TCCM nut.

    Torque: 62 lb.in (7 Nm)

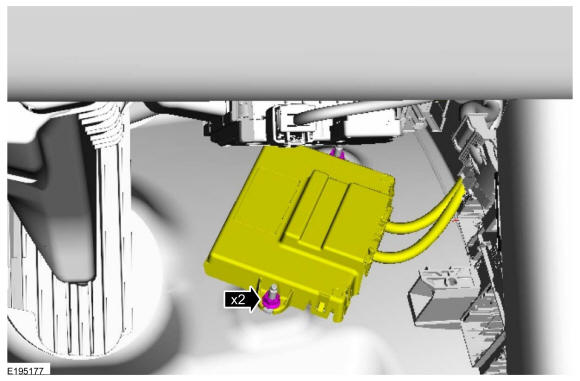

    GFD707448Courtesy of FORD MOTOR COMPANY
  4. Disconnect the electrical connectors and remove the TCCM.

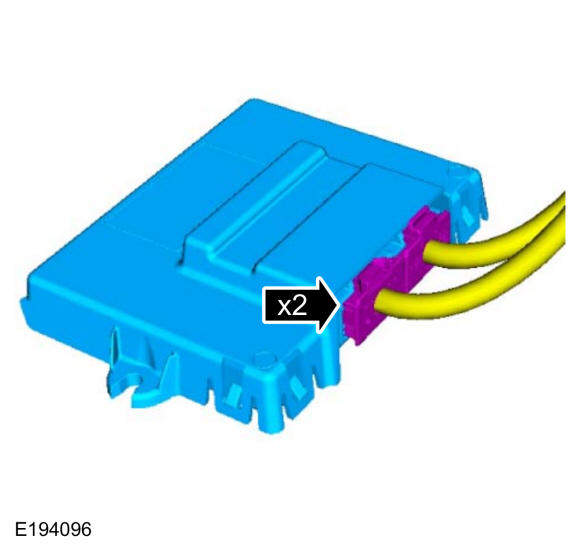

GFD707449Courtesy of FORD MOTOR COMPANY
