Connector Repair Procedures

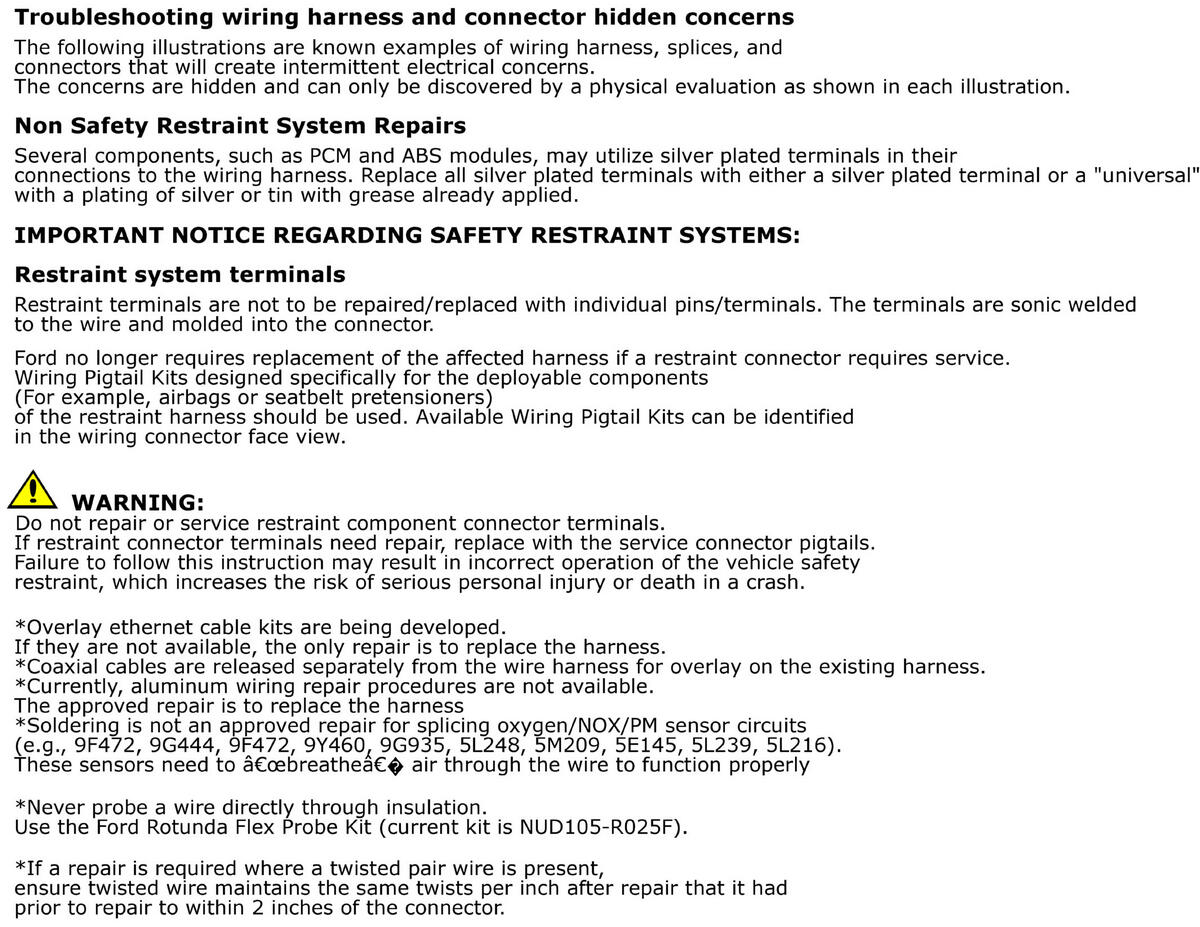

GFDWR262968Courtesy of FORD MOTOR COMPANY

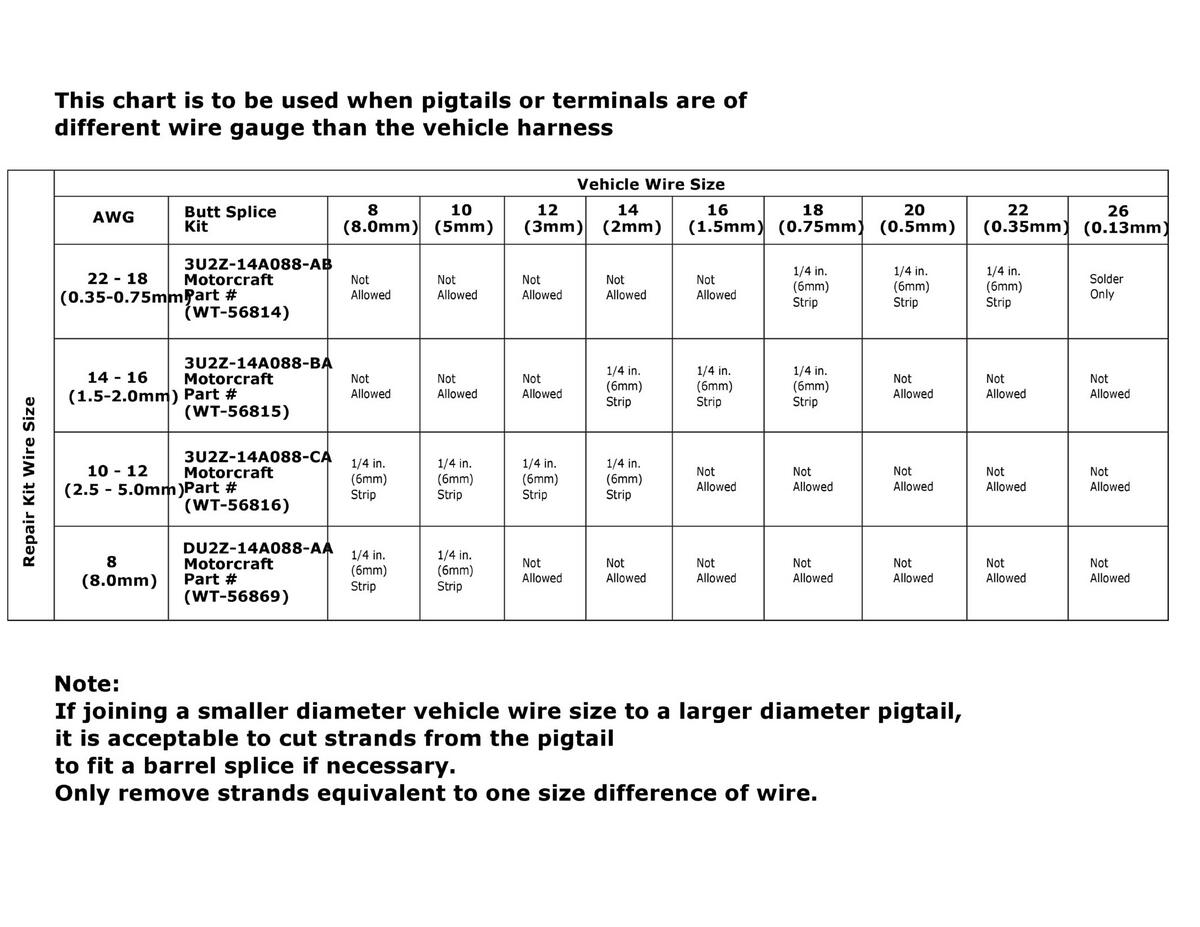

GFDWR262969Courtesy of FORD MOTOR COMPANY

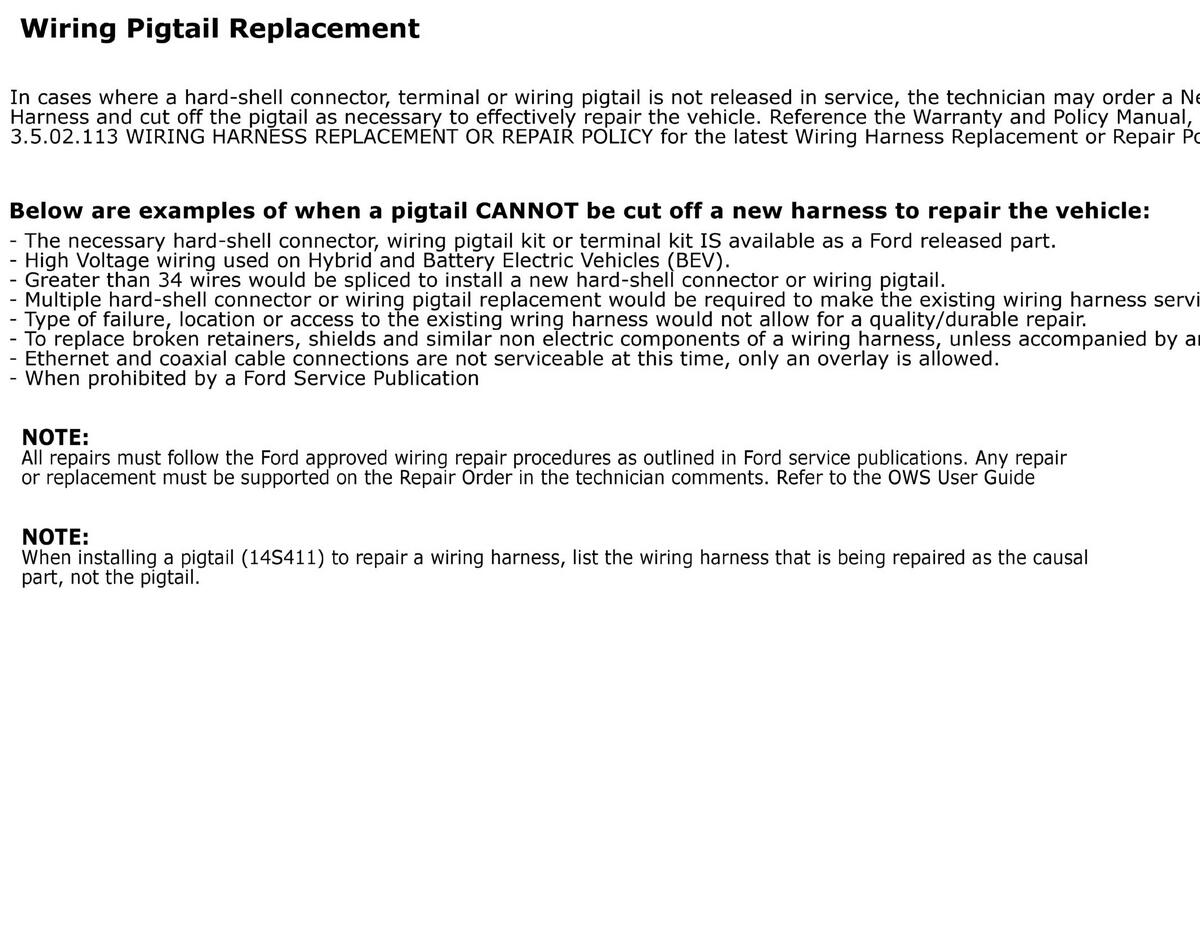

GFDWR262970Courtesy of FORD MOTOR COMPANY

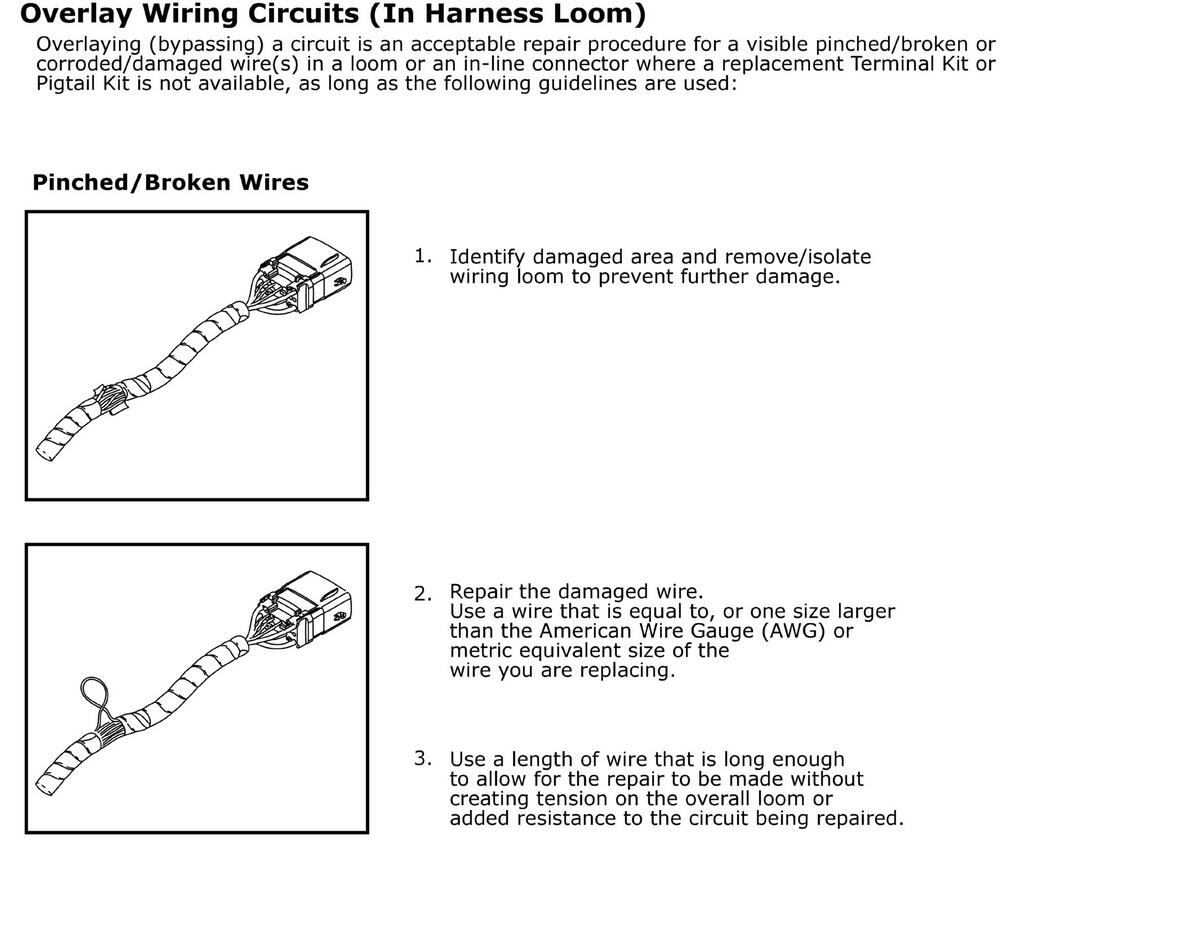

GFDWR262971Courtesy of FORD MOTOR COMPANY

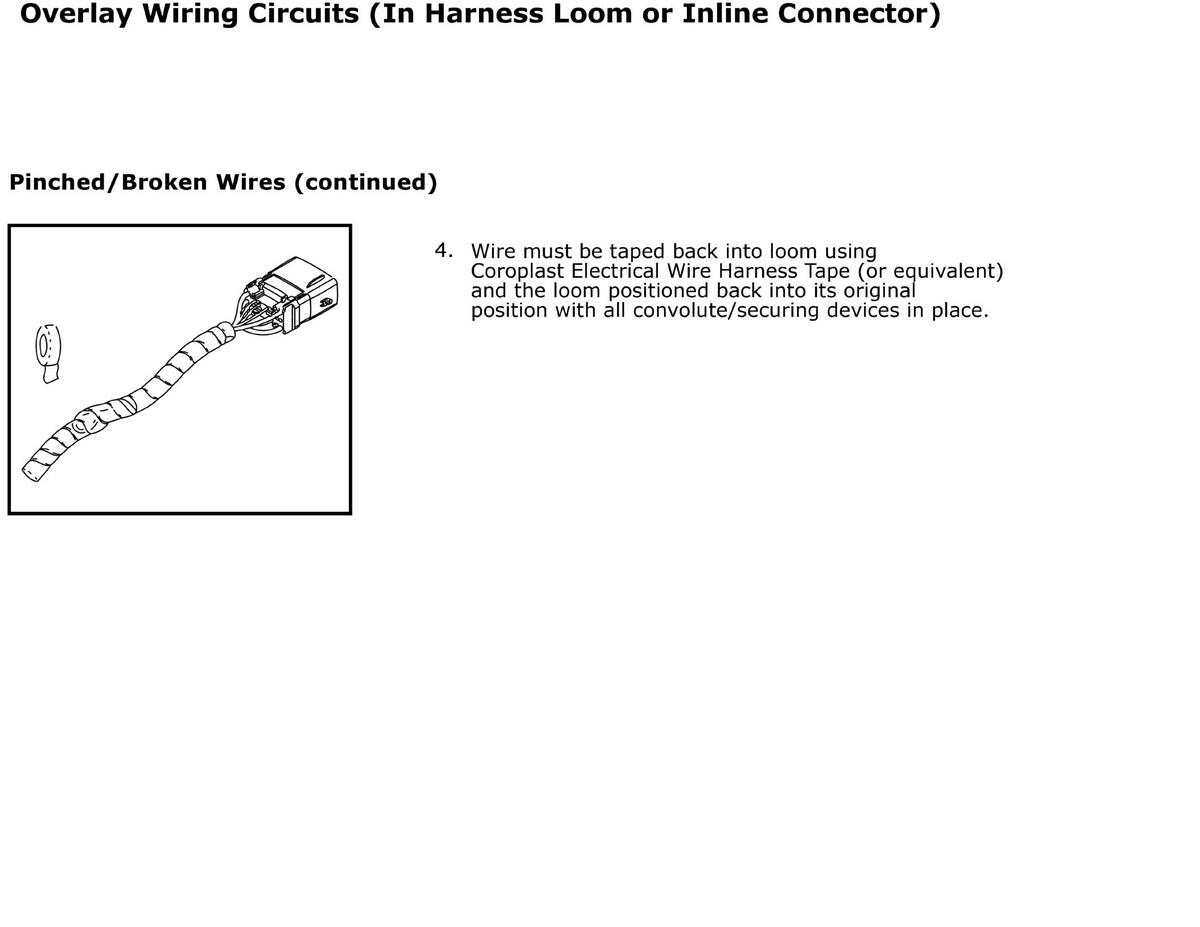

GFDWR262972Courtesy of FORD MOTOR COMPANY

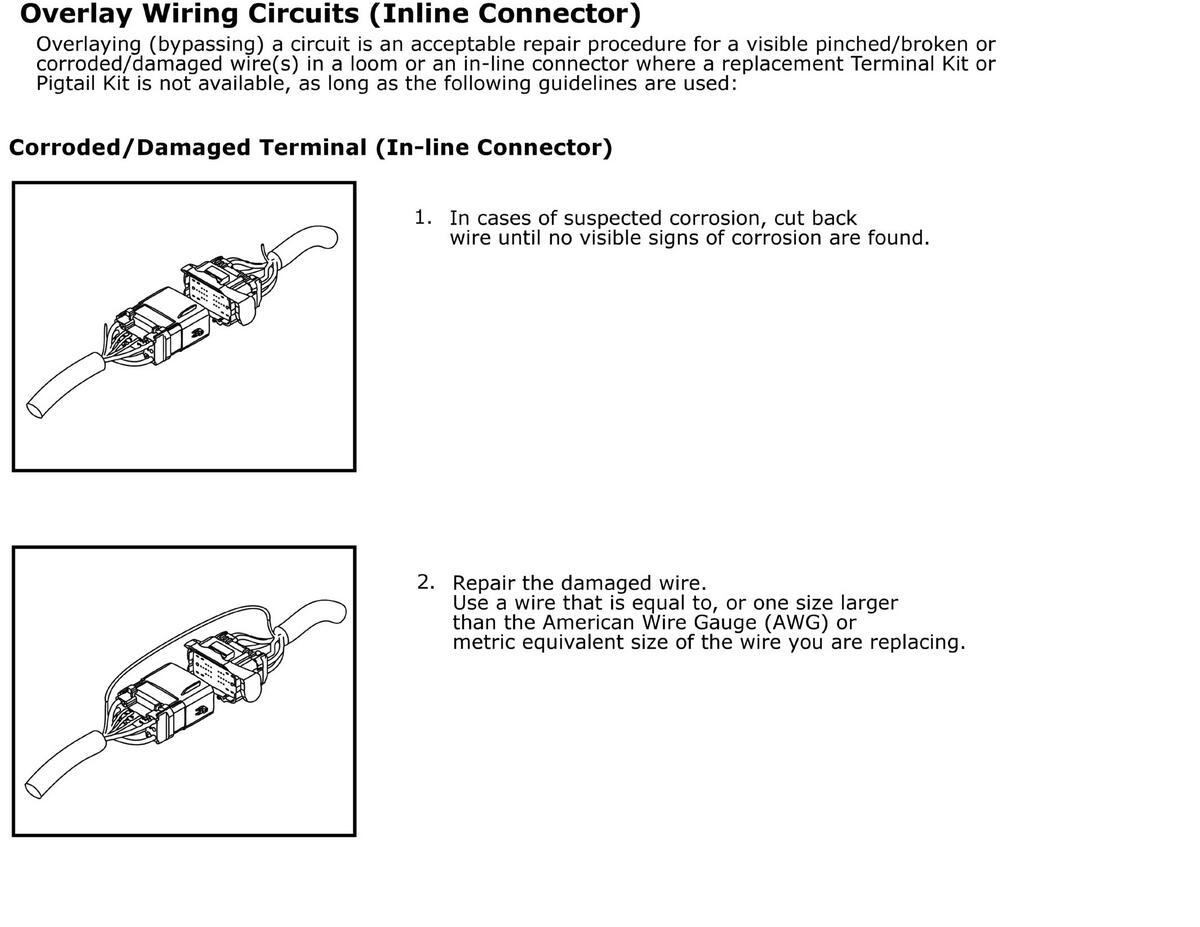

GFDWR262973Courtesy of FORD MOTOR COMPANY

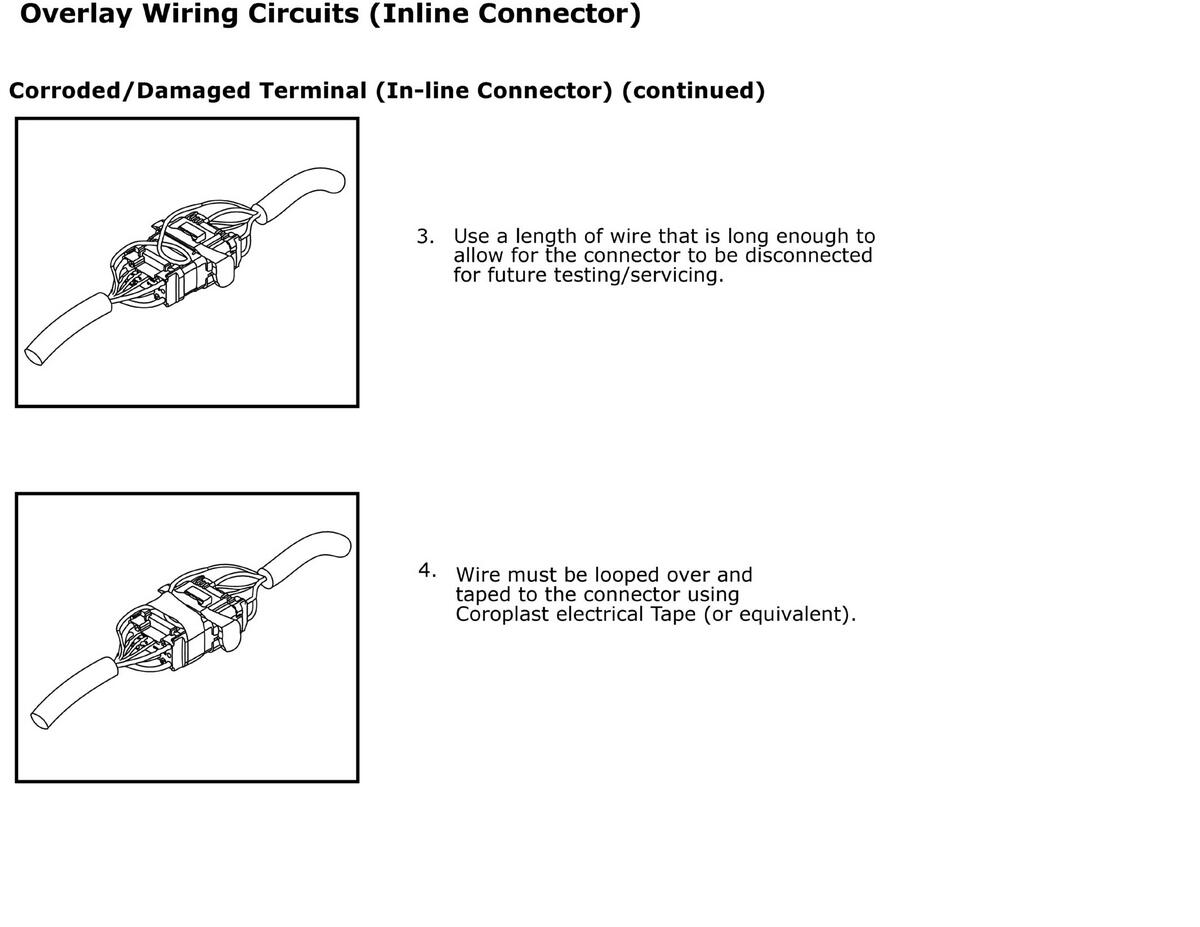

GFDWR262974Courtesy of FORD MOTOR COMPANY

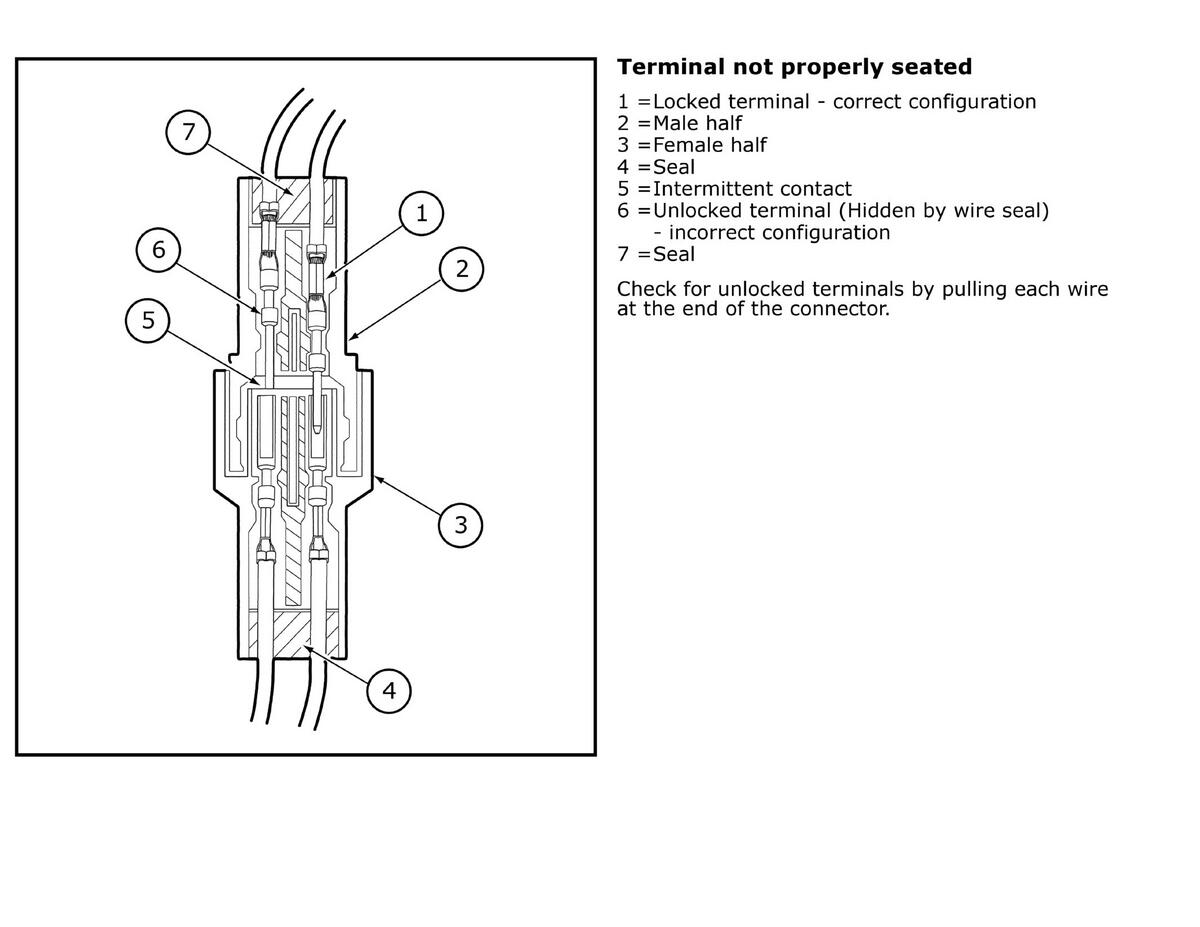

GFDWR262975Courtesy of FORD MOTOR COMPANY

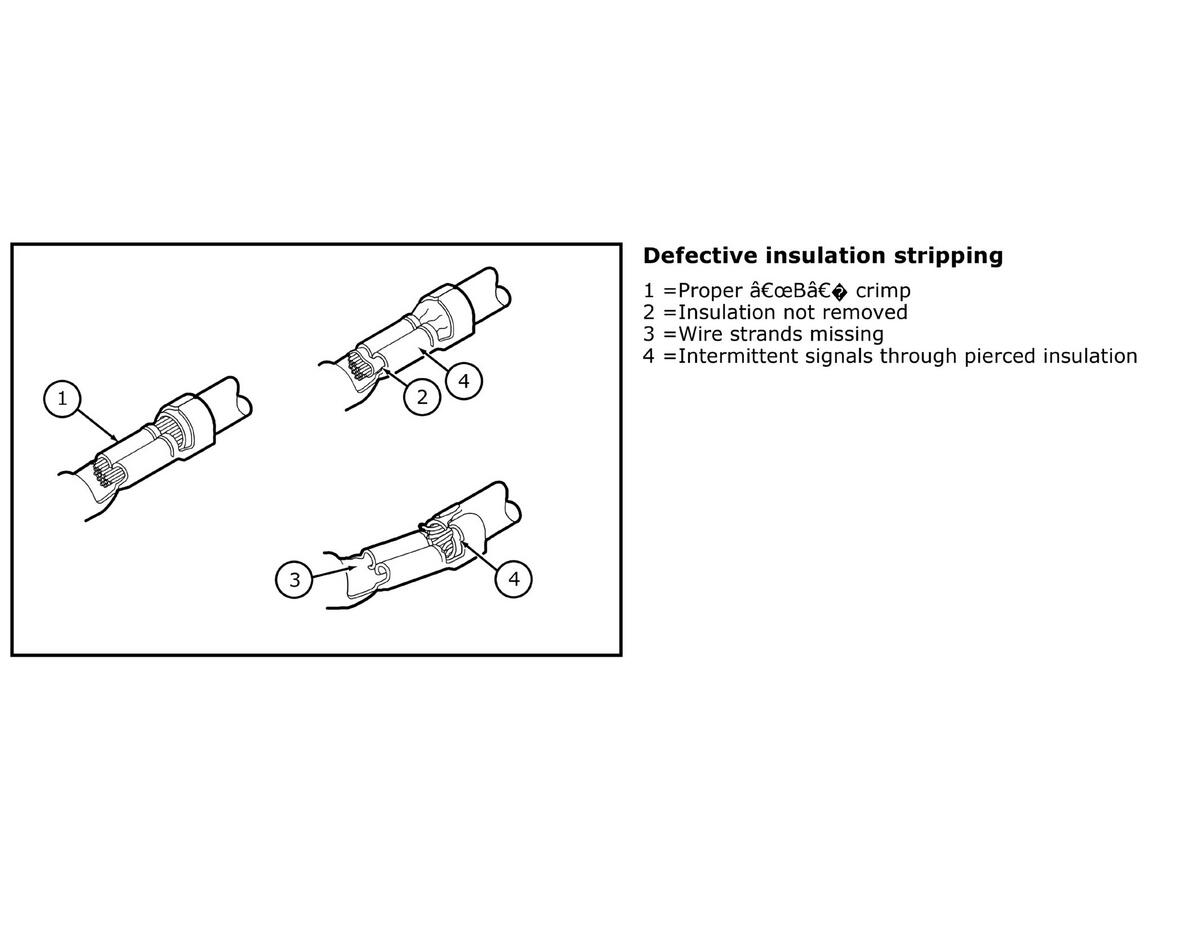

GFDWR262976Courtesy of FORD MOTOR COMPANY

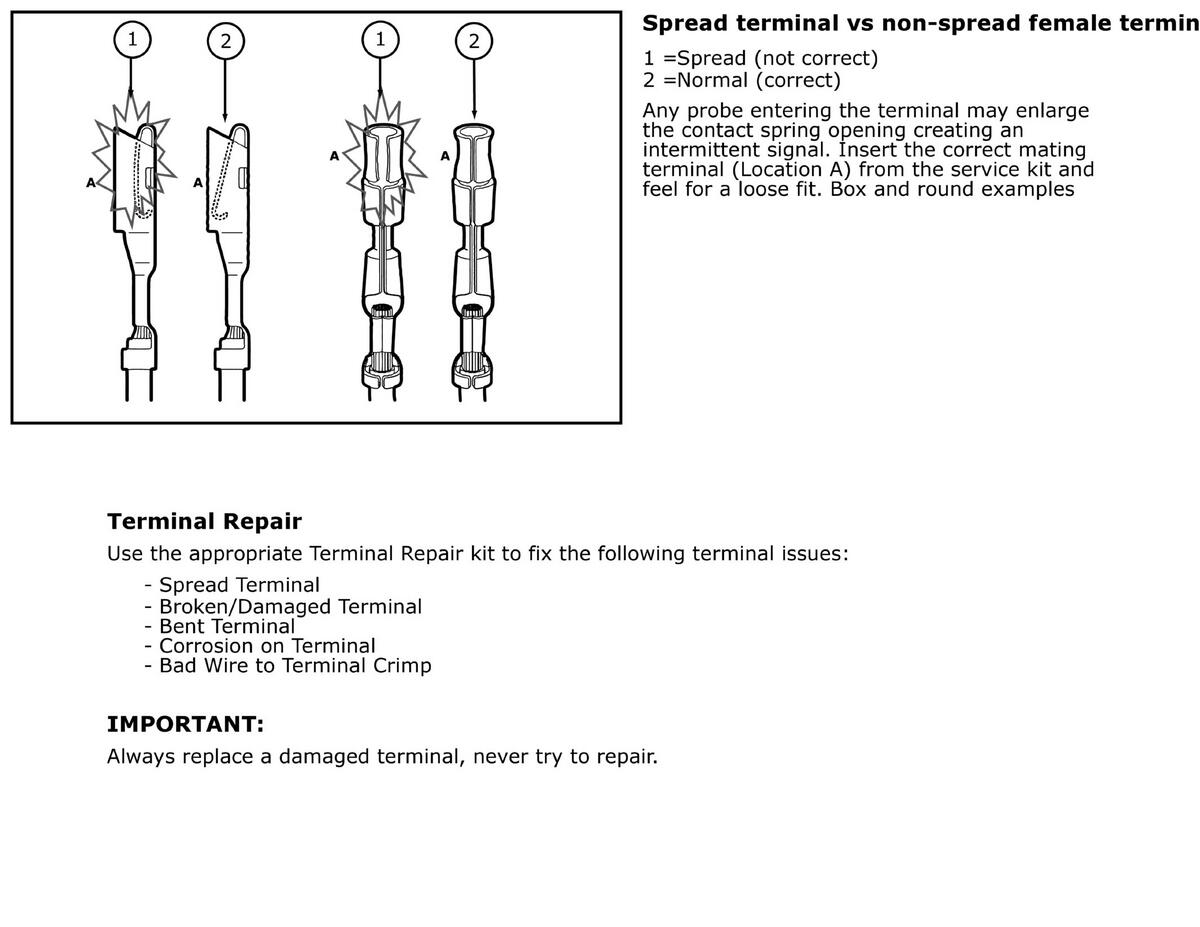

GFDWR262977Courtesy of FORD MOTOR COMPANY

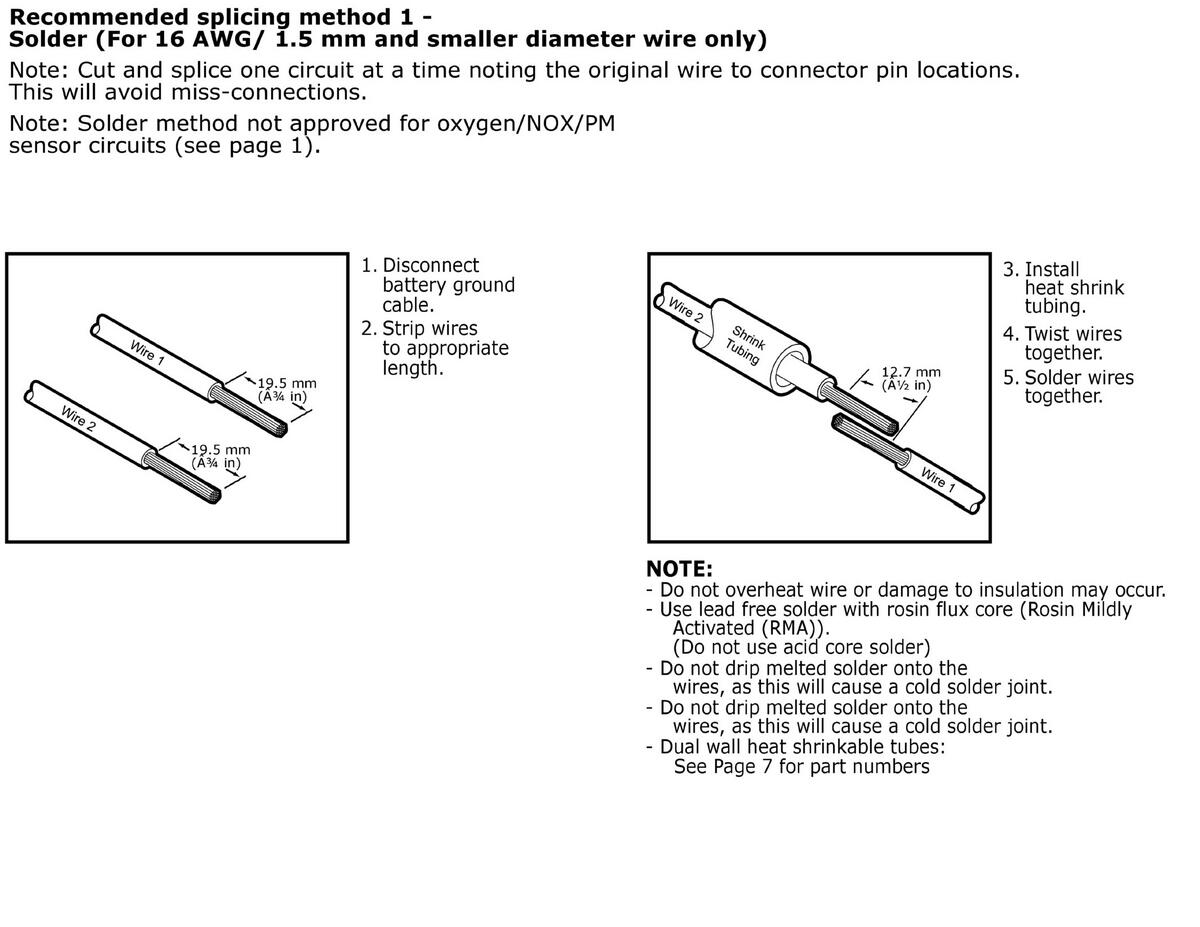

GFDWR262978Courtesy of FORD MOTOR COMPANY

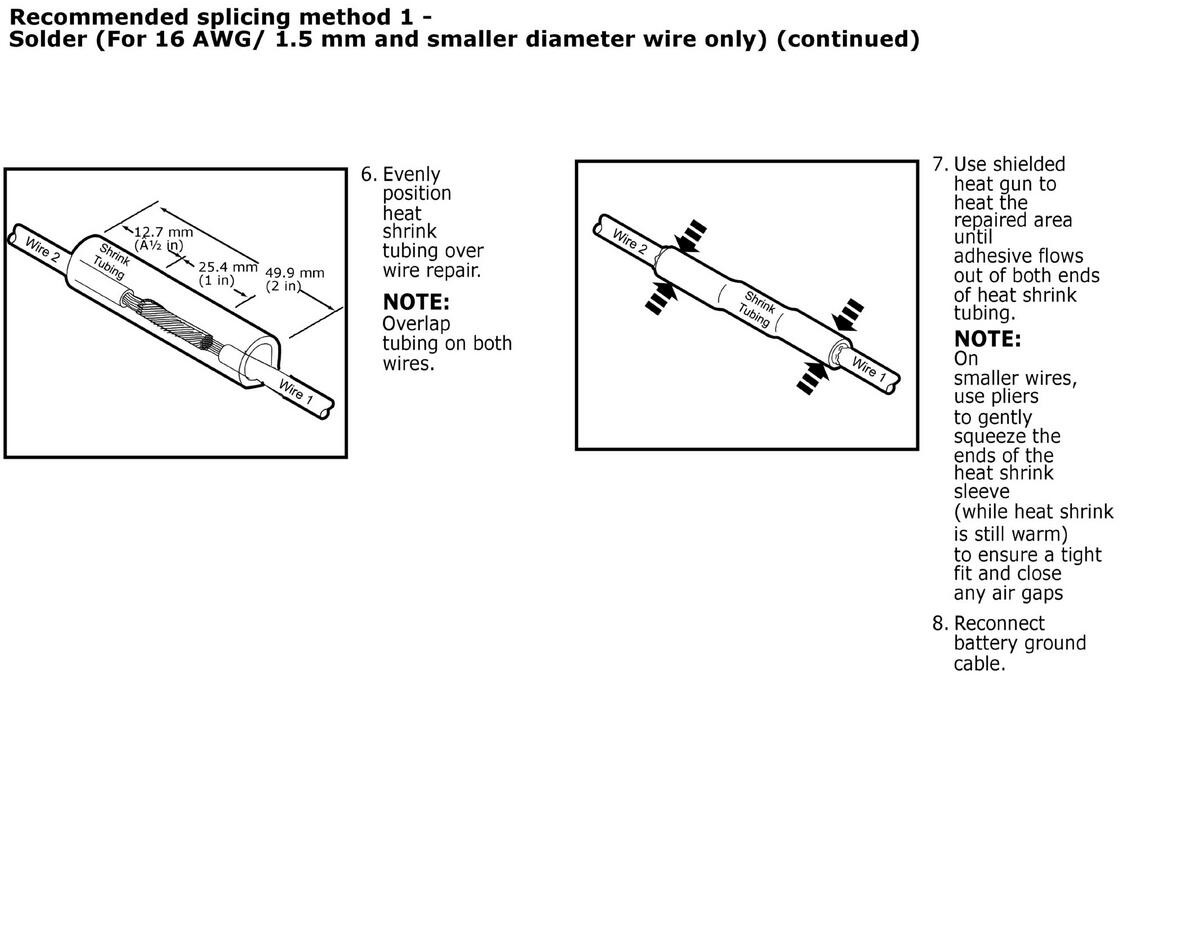

GFDWR262979Courtesy of FORD MOTOR COMPANY

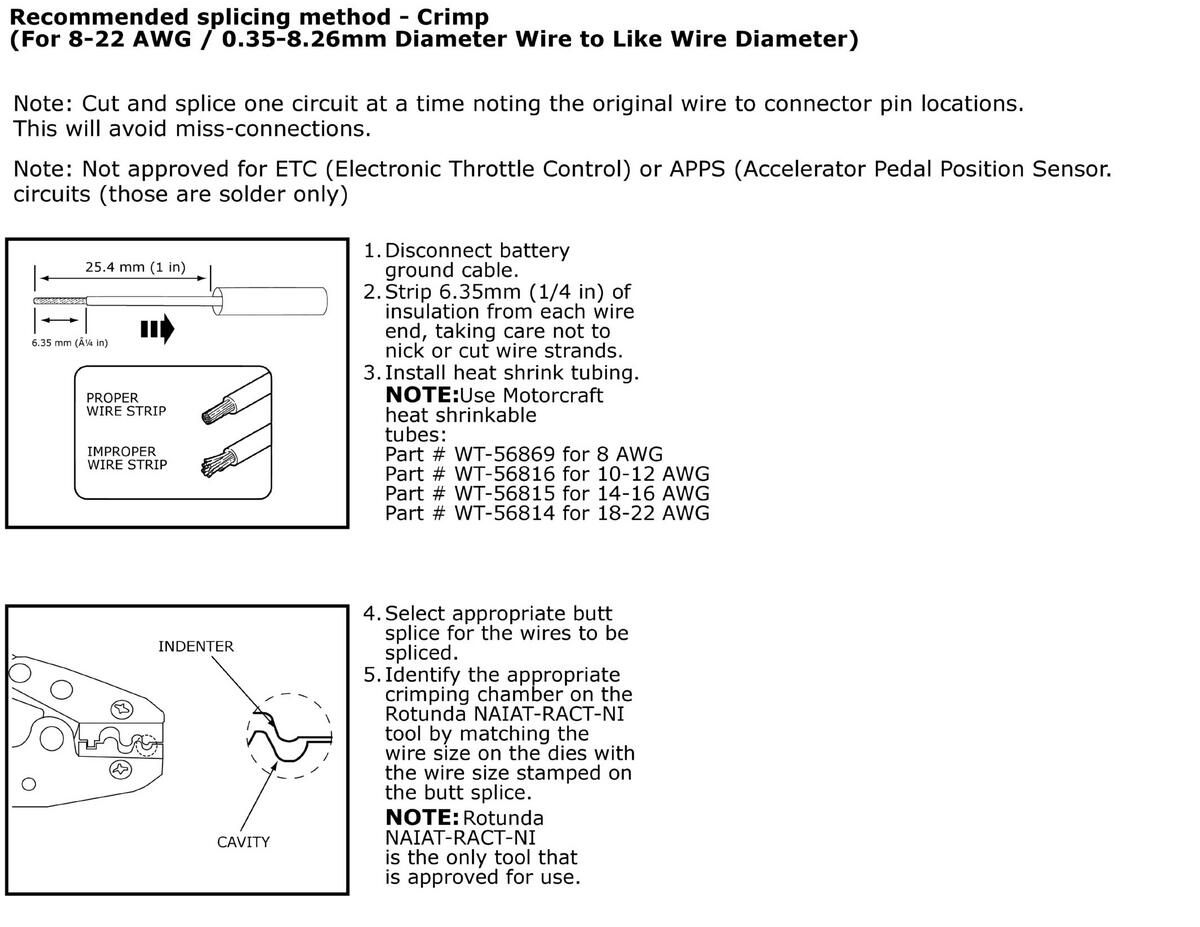

GFDWR262980Courtesy of FORD MOTOR COMPANY

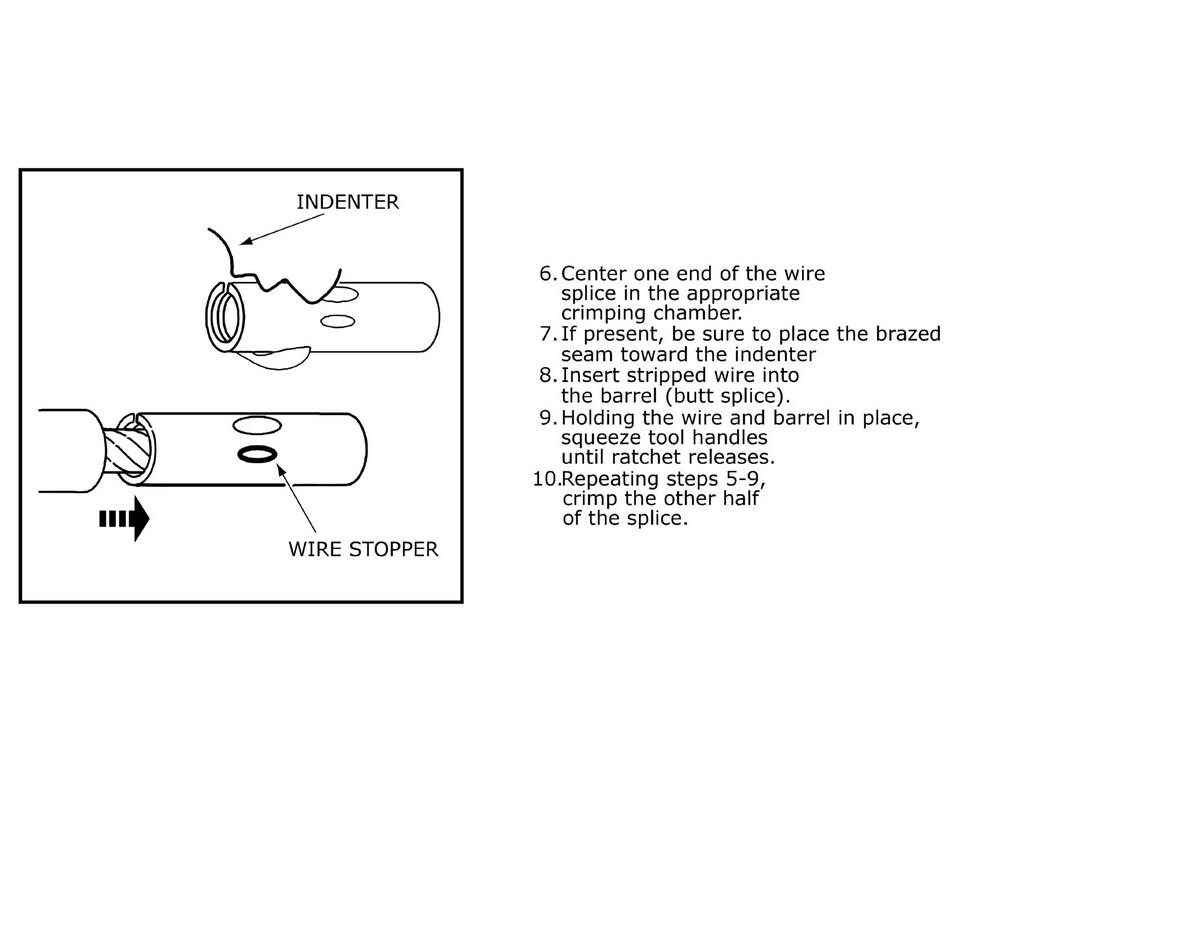

GFDWR262981Courtesy of FORD MOTOR COMPANY

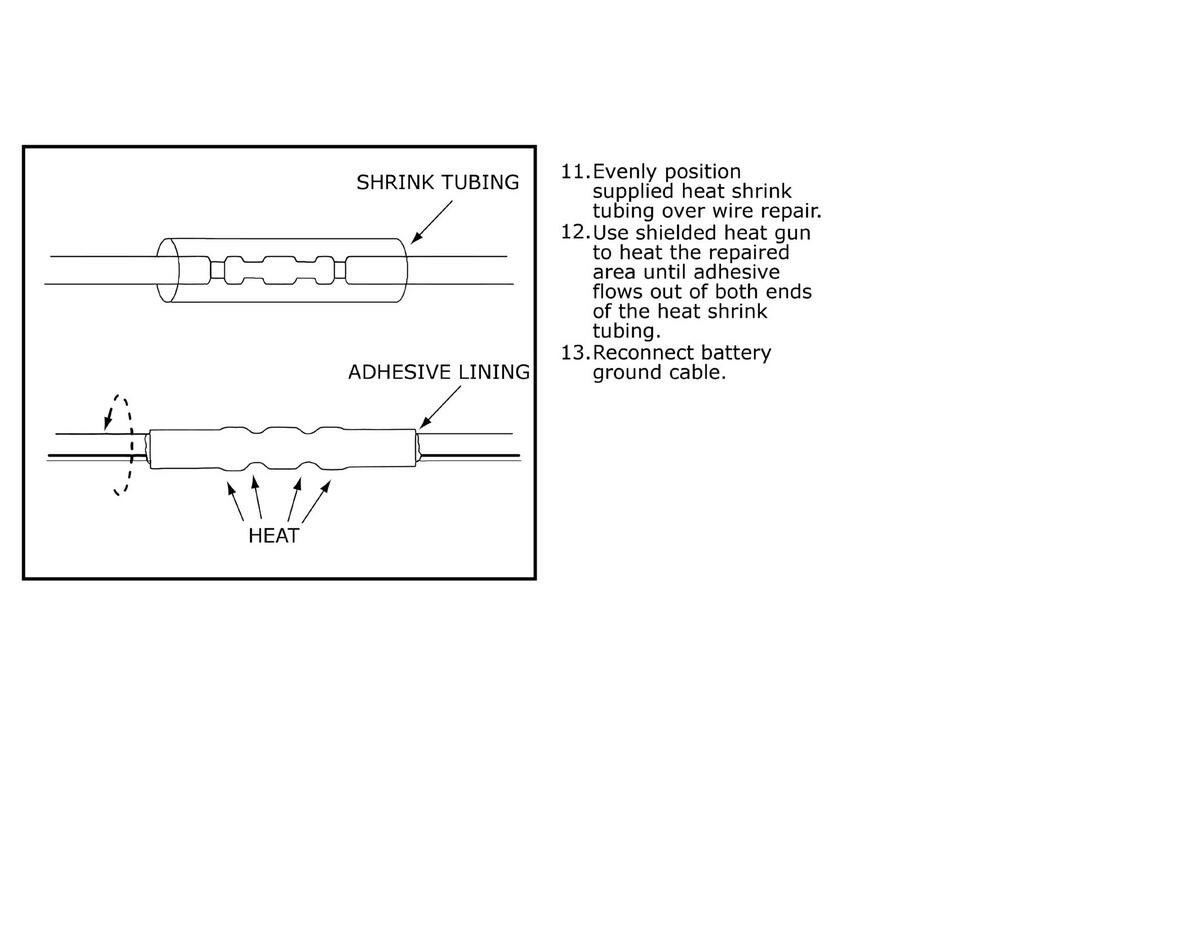

GFDWR262982Courtesy of FORD MOTOR COMPANY
