MITSUBISHI Alternators: Application

Model Part No.
Arrow & Colt
  1600cc AH2045K1
  2000cc AH2045G1
Courier (1)D47Z-10346-A
Mazda
  RX-3, 808(1300cc) 1011 18 300
  RX-4, Cosmo 8735 18 300
  808(1600cc) 0453 18 300A
  Rotary Pickup 0571 18 300A
  GLC 0483 18 300
(1) Ford Part N umber.

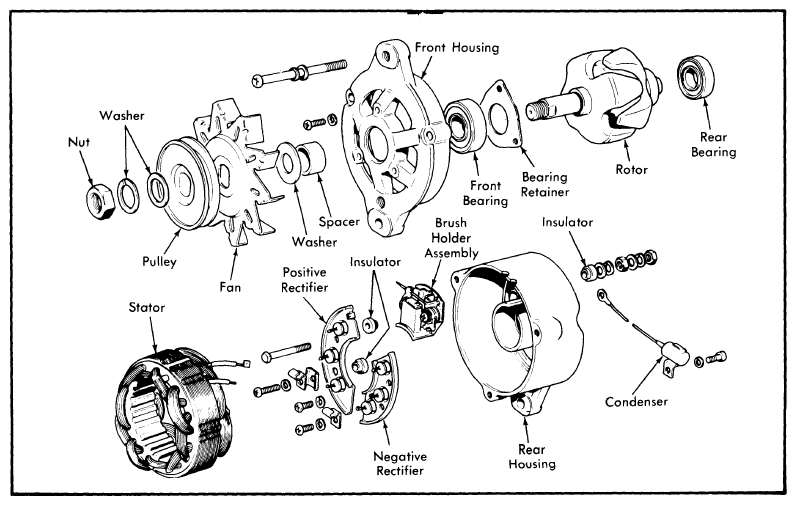

Fig 1: 1 Exploded View of Mitsubishi Alternator
G09362795Courtesy of NOT AVAILABLE
