Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location
Fuse Block Below left side of dash.
Fusible Links On left inner fender panel (right side radiator support RWD).
Heater Blower Motor Resistor Below right side of dash.
Lights & Ignition Key Chime Below left side of dash.

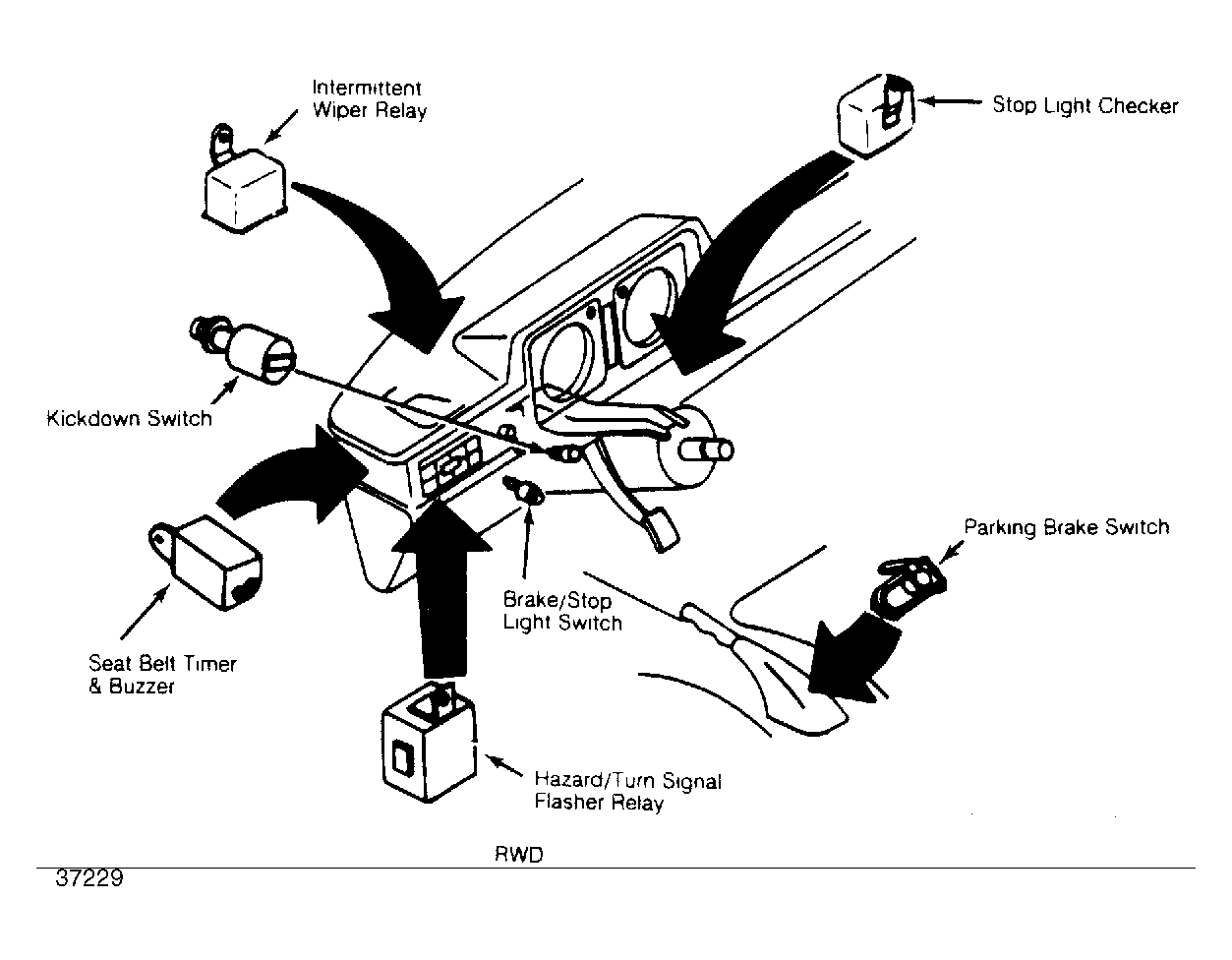

Stop Light Checker Below left kick panel. See Figure & Figure .
