Except California

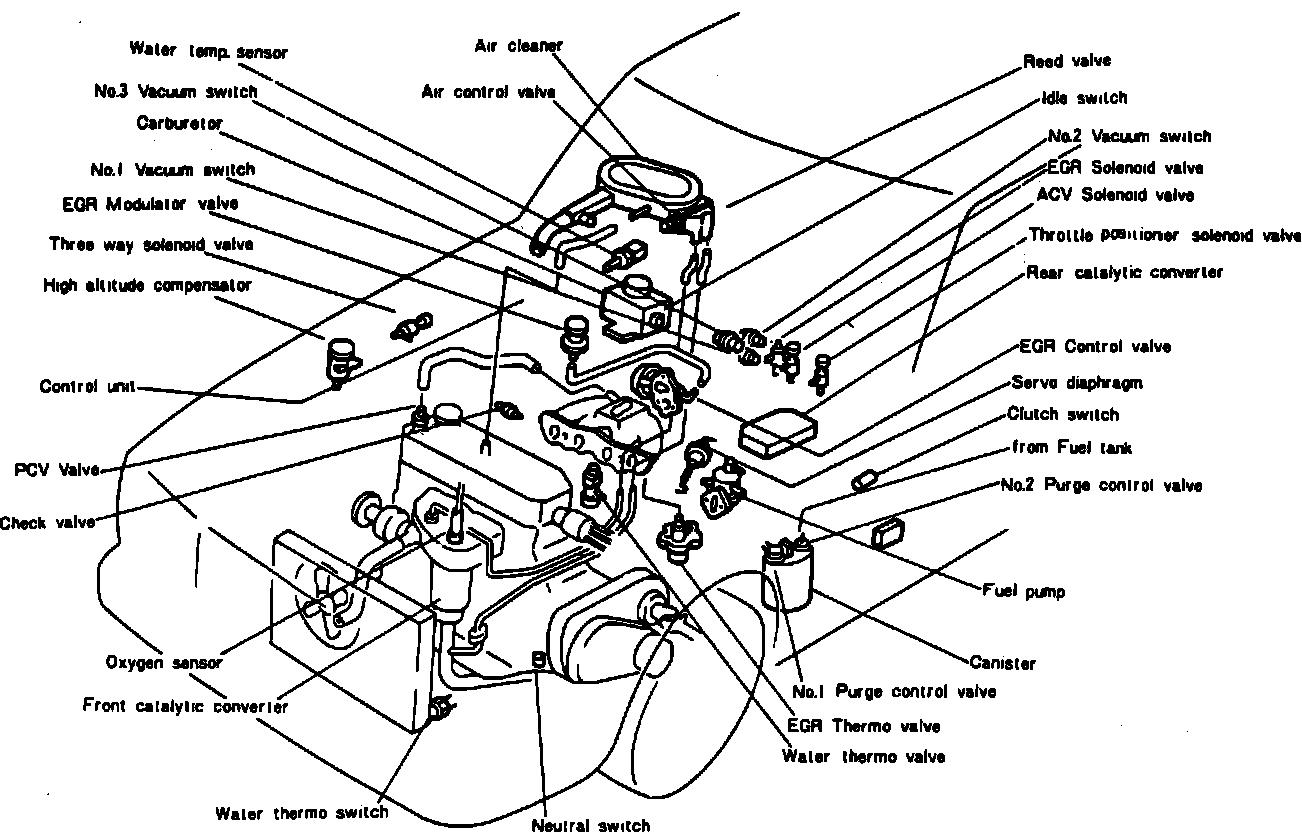

Engine Compartment Reference Diagram.:

RH Side Of Engine Compartment

Applicable to: 1983 Except Calif. Models
