Home
>>
Mazda
>>
1983
>>
GLC L4-1490cc 1.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>
California
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
California

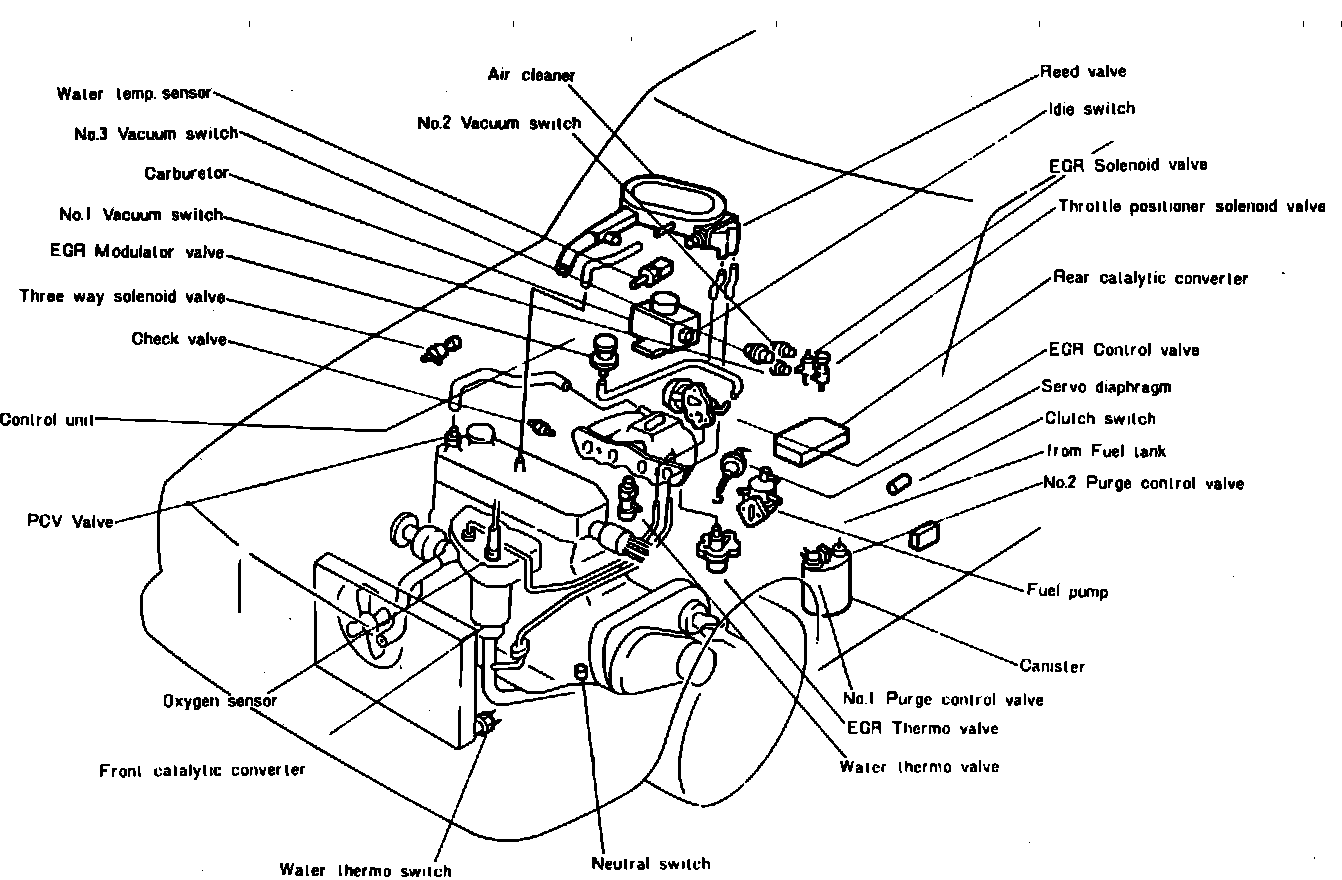

Engine Compartment Reference Diagram.:
RH Side Of Engine Compartment
Applicable to: 1983 Calif. Models
