Torque Specifications

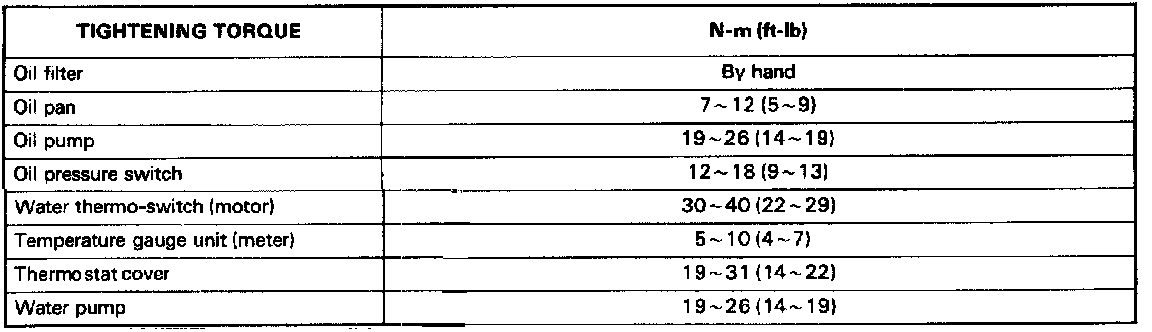

Torque Chart:

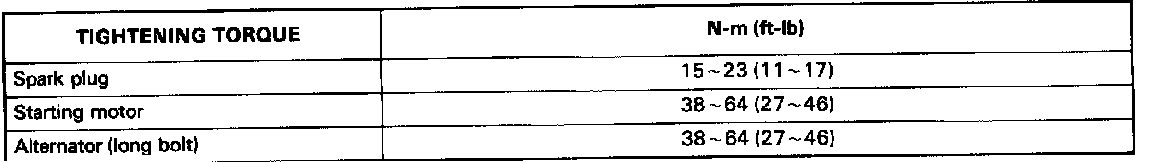

Torque Chart:

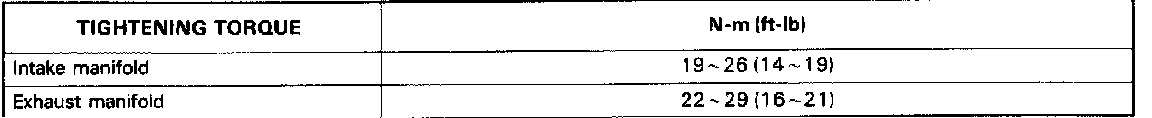

Torque Chart:

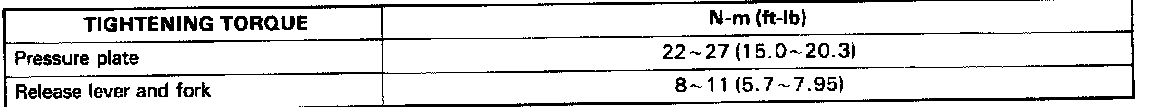

Torque Chart:

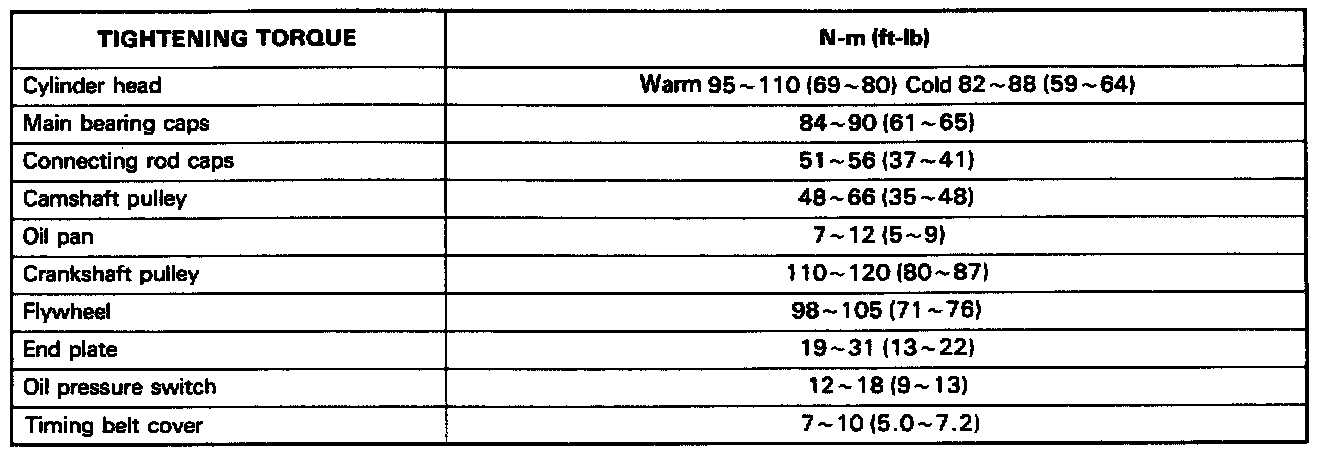

Torque Chart:






Torque Chart:

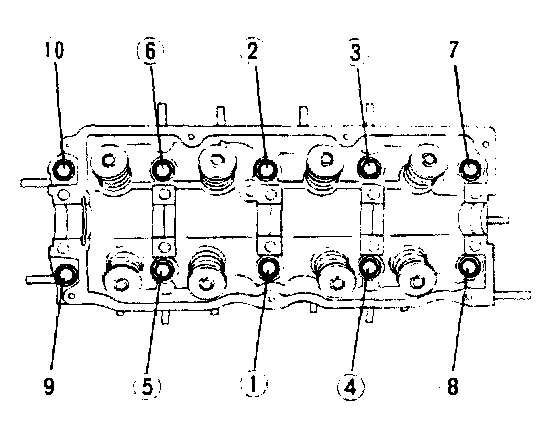

Cylinder Head Installation:






Tighten cylinder head bolts in sequence in several passes to 69-80 ft.lbs (warm) or 59-64 ft.lbs(cold).
