Neutral Switch

Disconnect wiring harness from switch. Using an ohmmeter, check continuity between switch terminals. Continuity should be indicated when transmission is in any gear (except Neutral). No continuity should exist when transmission is in Neutral. If readings are incorrect, replace switch.

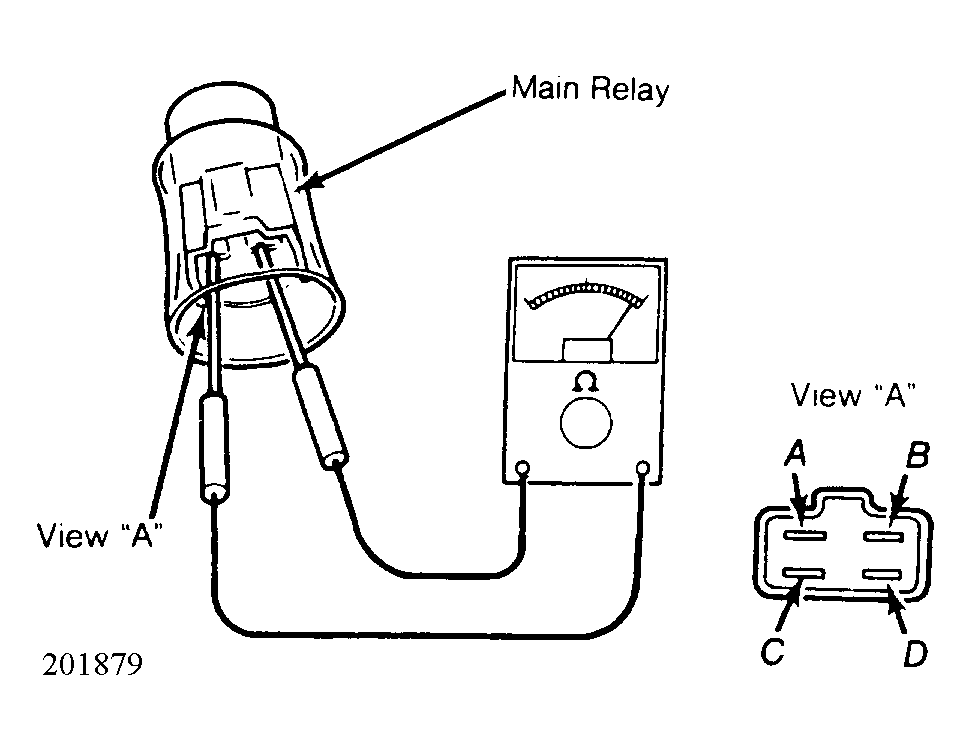

Fig 1: Measuring Resistance On Main Relay

Courtesy of MAZDA MOTORS CO.
