Service Point Locations

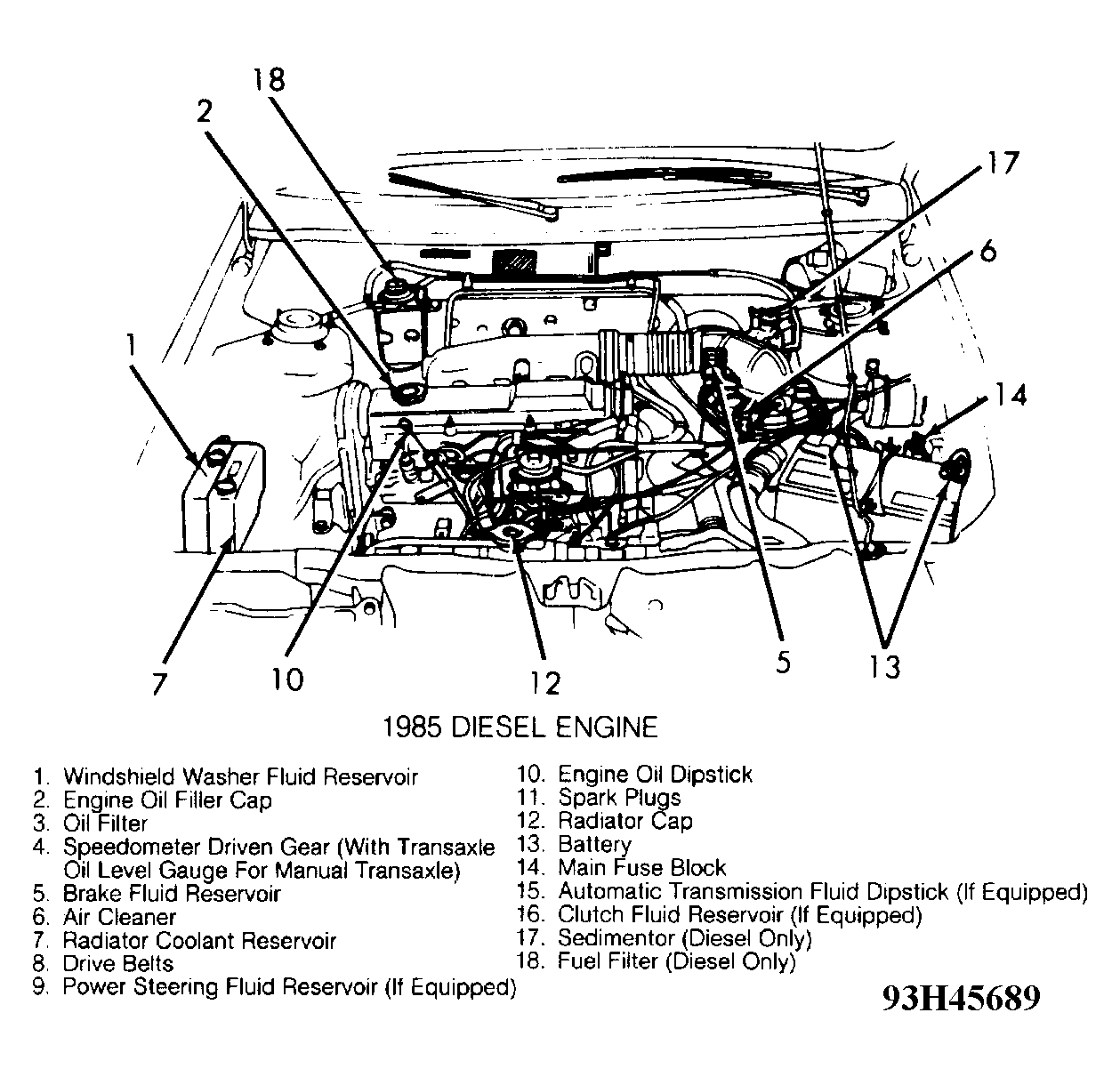

Fig 1: Service Point Locations (1985 Diesel Engine)
G93H45689Courtesy of MAZDA MOTOR OF AMERICA, INC.

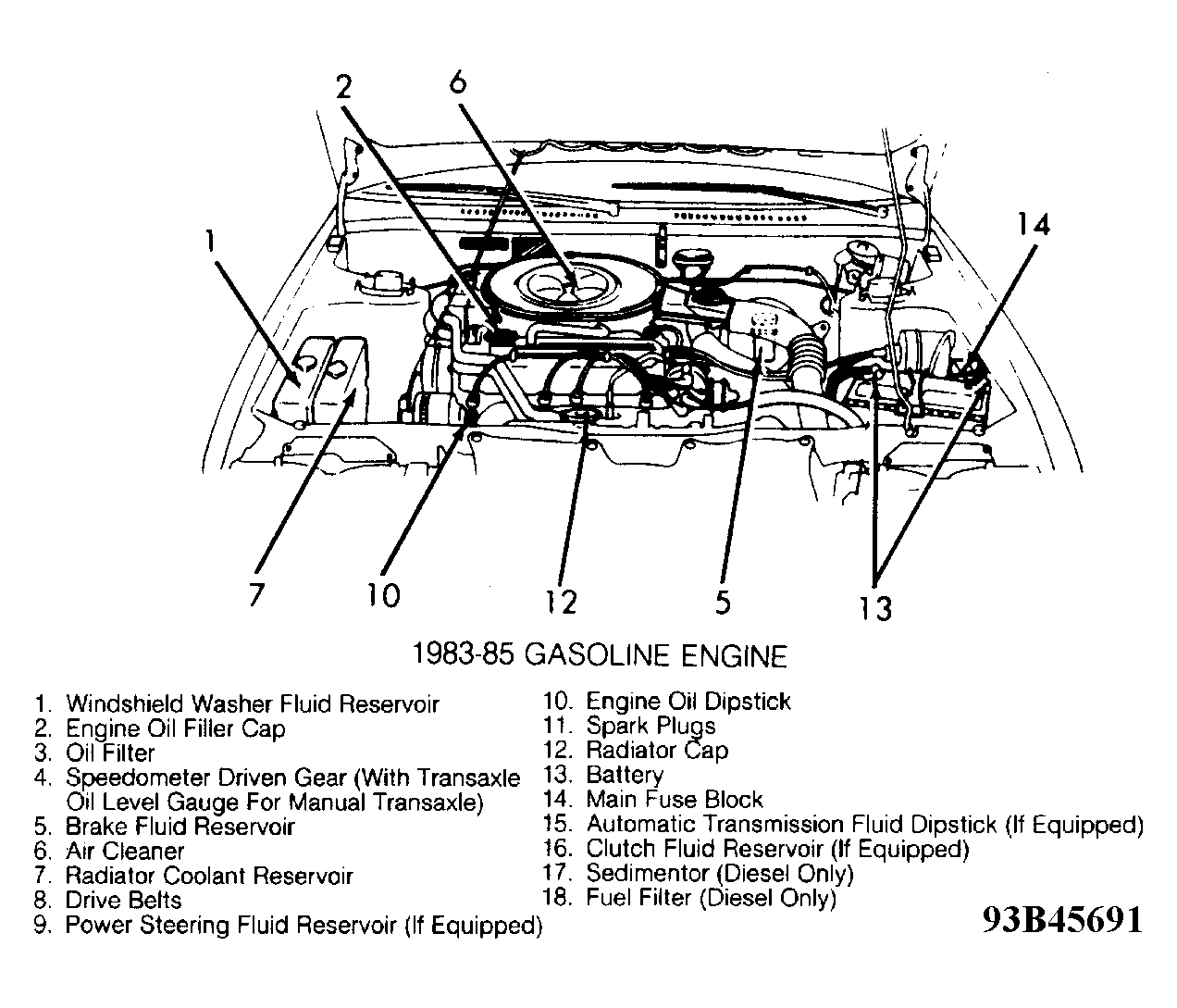

Fig 2: Service Point Locations (1983-85 Gasoline Engine)
G93B45691Courtesy of MAZDA MOTOR OF AMERICA, INC.

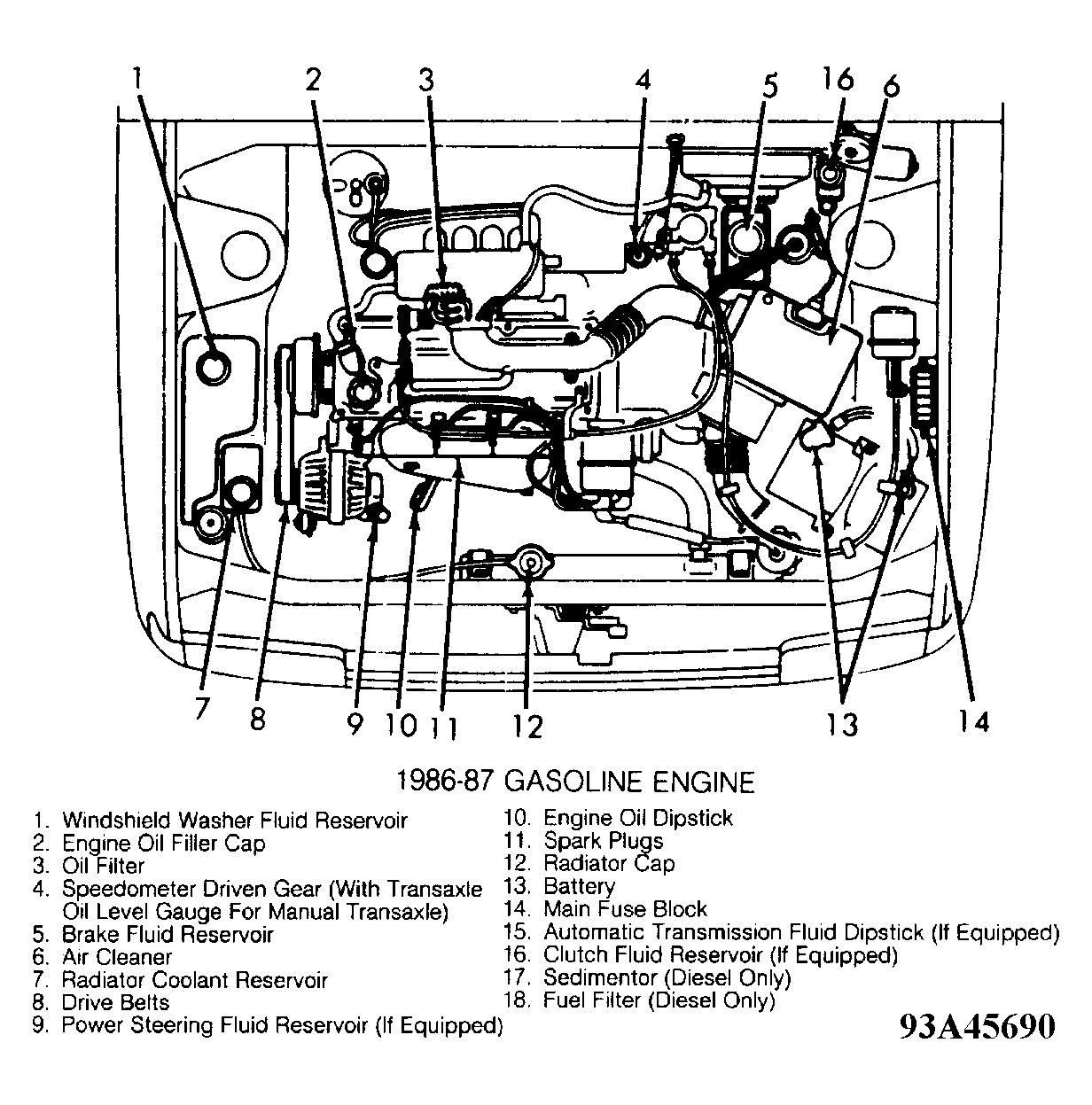

Fig 3: Service Point Locations (1986-87 Gasoline Engine)
G93A45690Courtesy of MAZDA MOTOR OF AMERICA, INC.

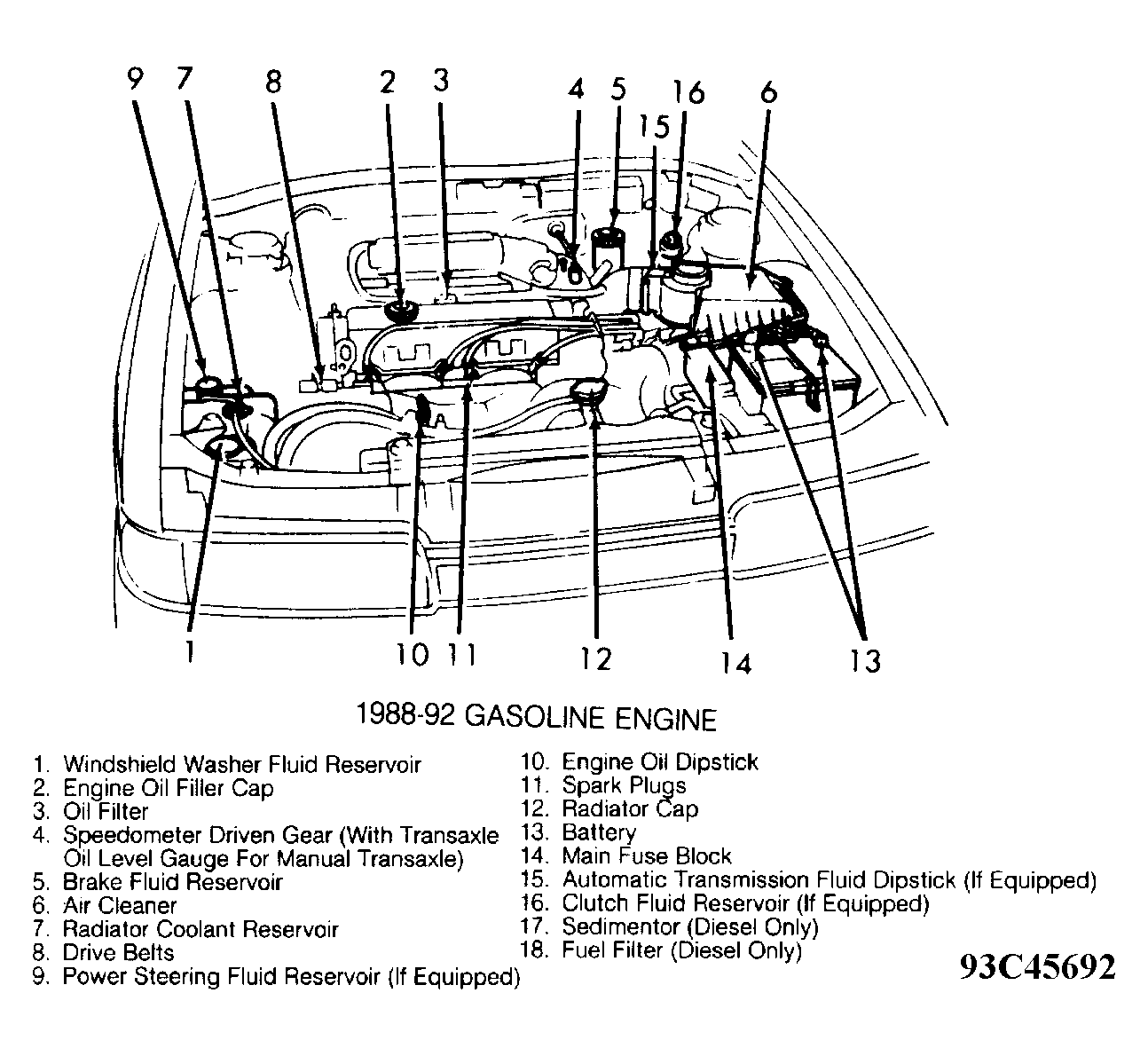

Fig 4: Service Point Locations (1988-92 Gasoline Engine)
G93C45692Courtesy of MAZDA MOTOR OF AMERICA, INC.

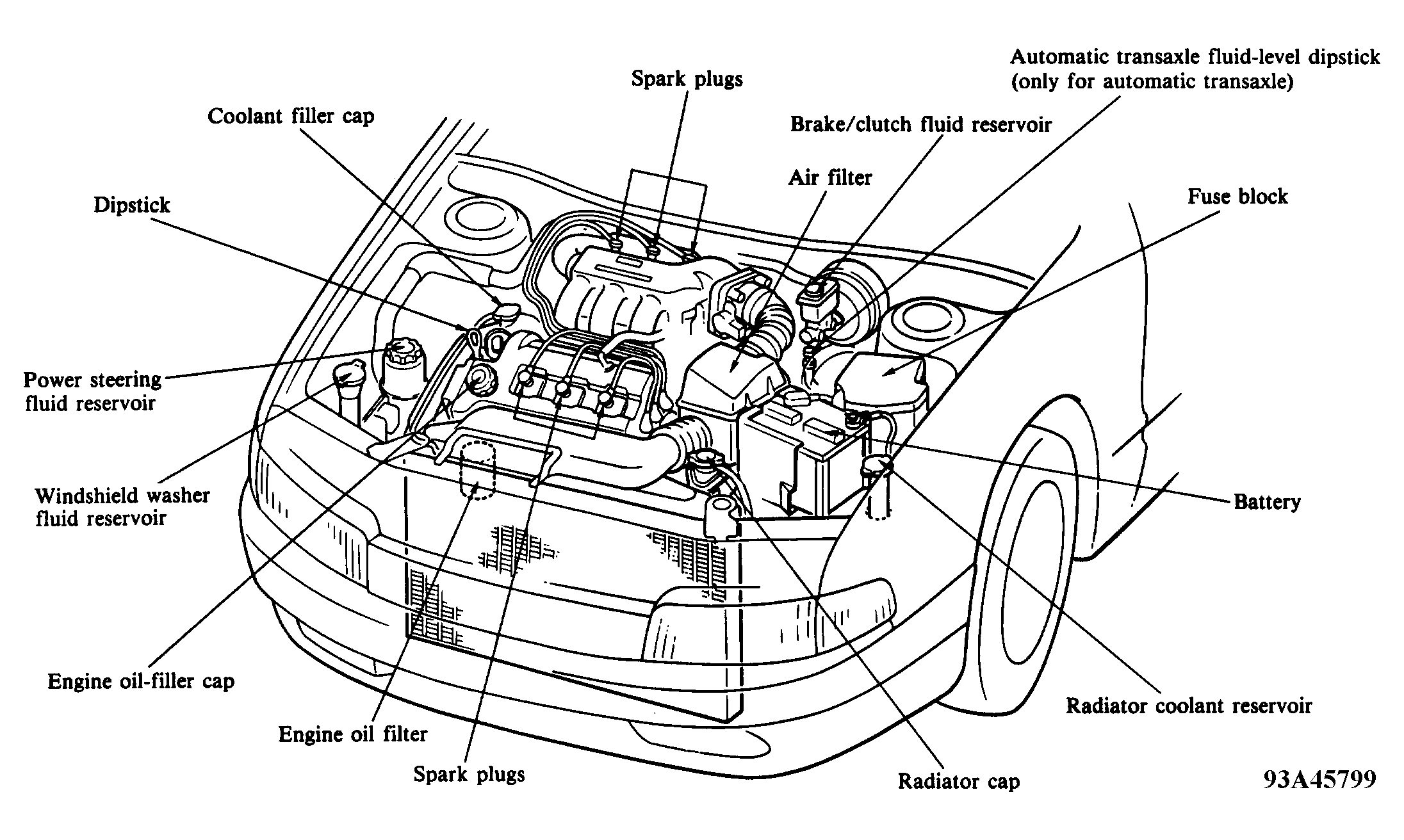

Fig 5: Service Point Locations (1993-96 2.5L V6 Engine)
G93A45799Courtesy of MAZDA MOTOR OF AMERICA, INC.

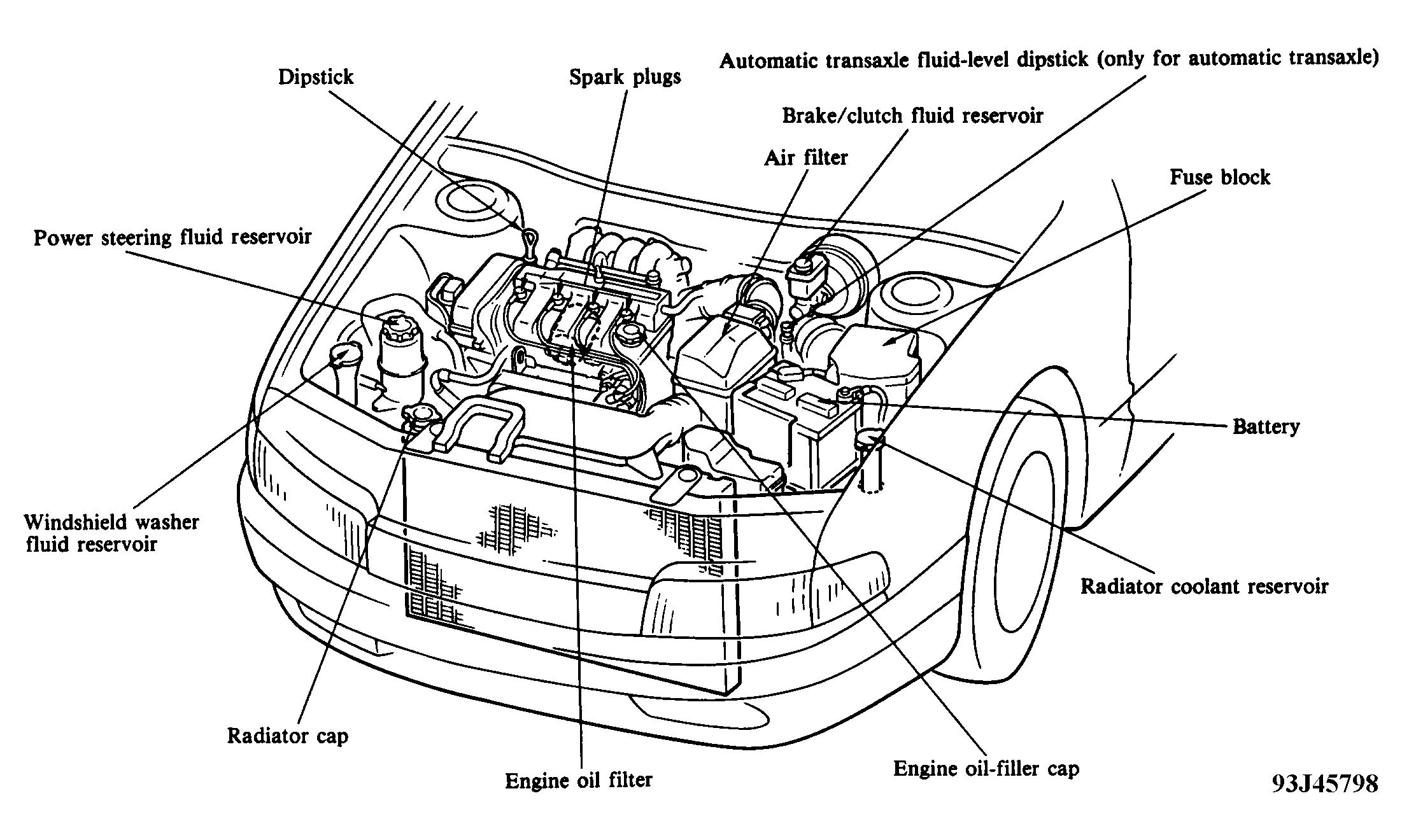

Fig 6: Service Point Locations (1993-96 2.0L 4-Cylinder Engine)
G93J45798Courtesy of MAZDA MOTOR OF AMERICA, INC.
