Wiring Diagrams

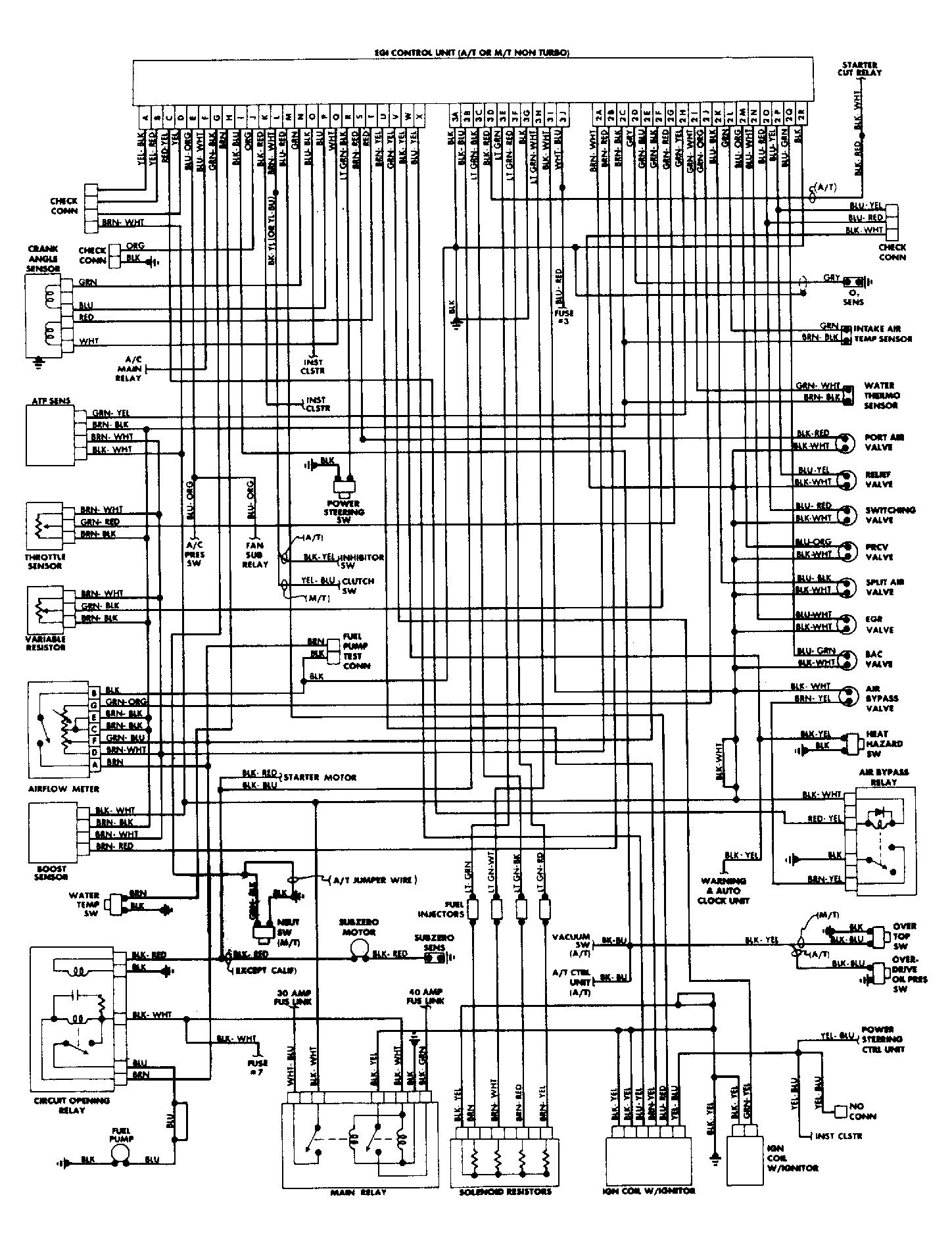

Fig 1: Mazda RX7 Non-Turbo Computer Control System Wiring Diagram
G61590

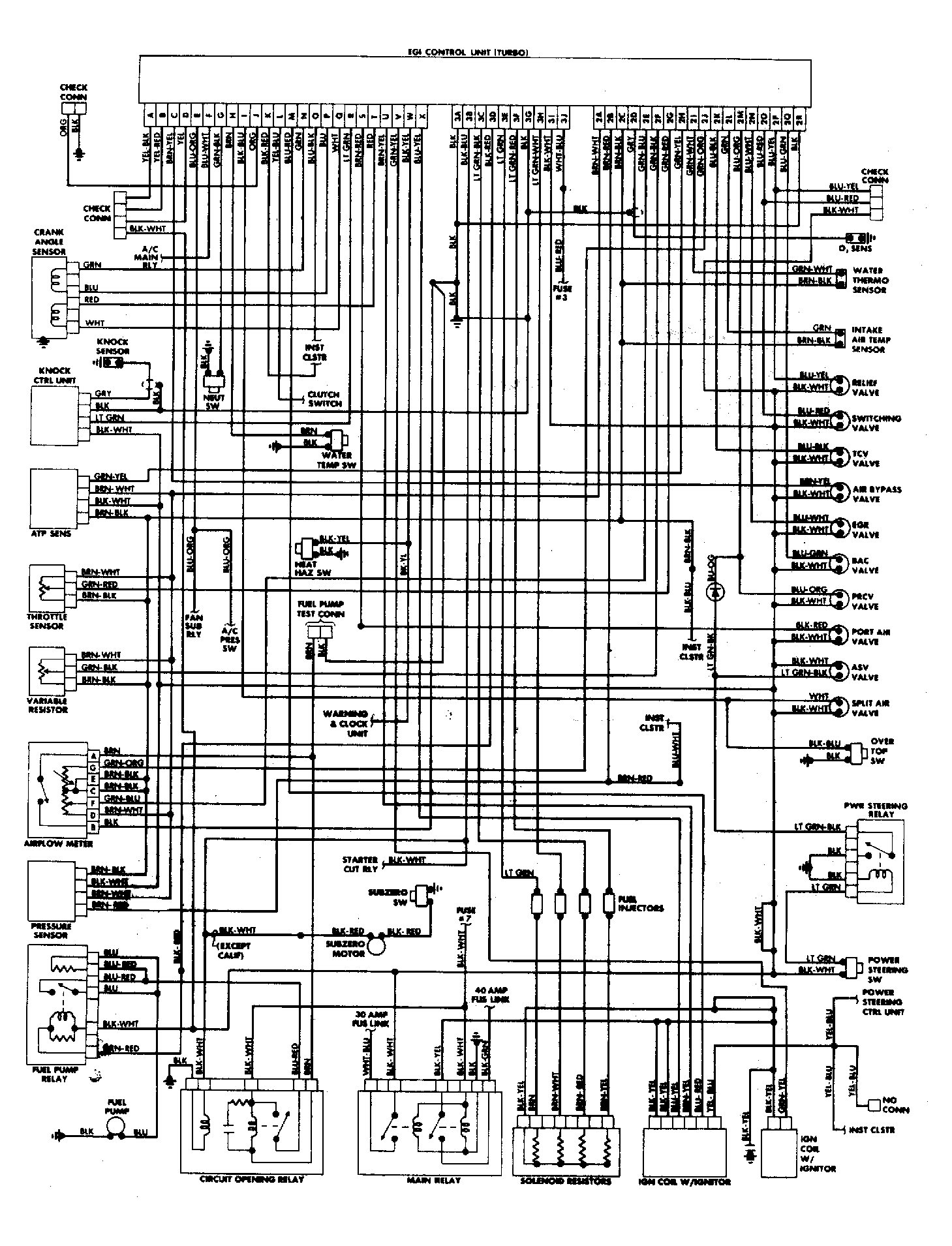

Fig 2: Mazda RX7 Turbo Computer Control System Wiring Diagram
G61591
