Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

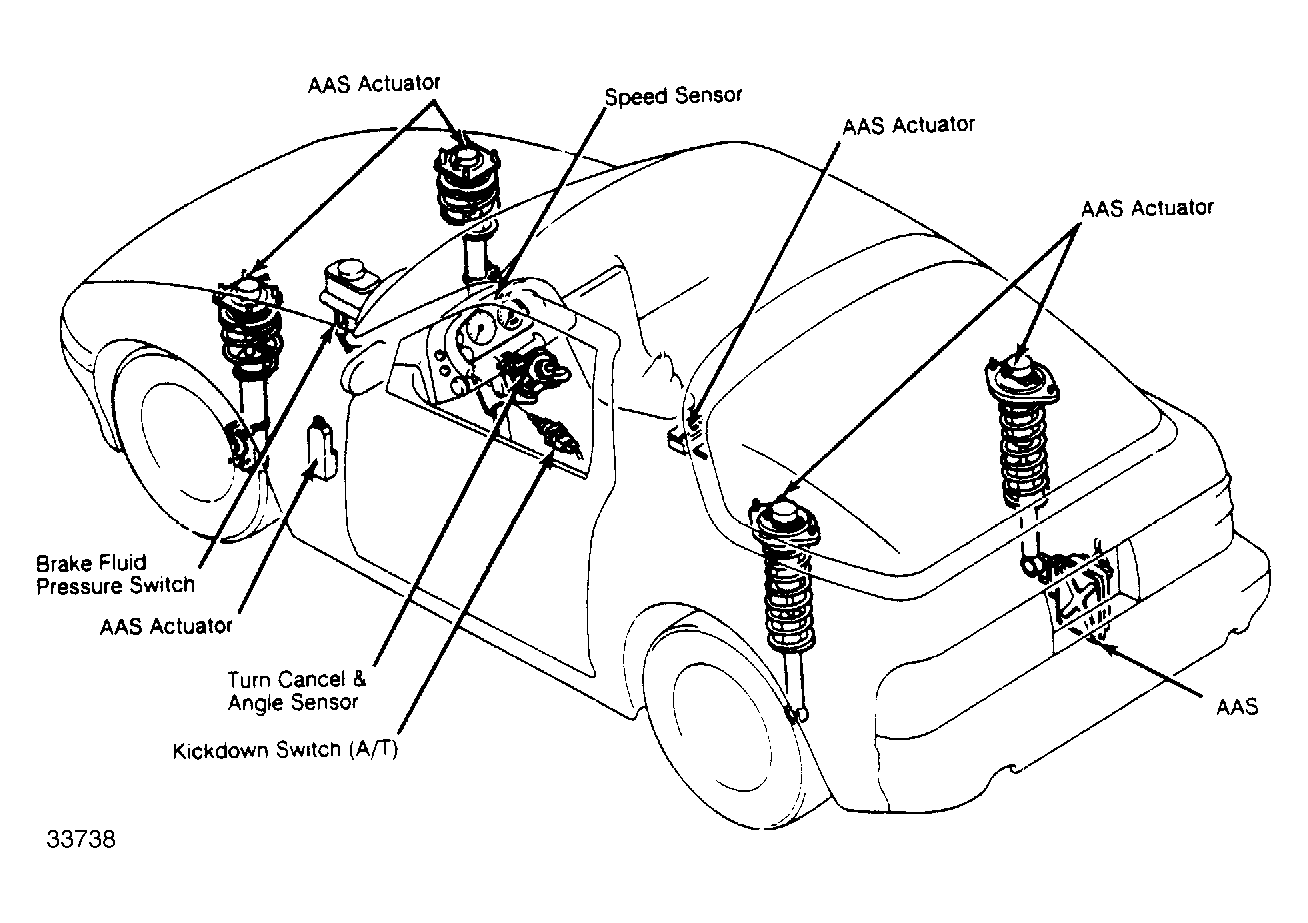

| Automatic Adjusting Suspension (AAS) Control Unit | On rear of vehicle to right of license plate. See Figure & Figure . |
| Anti-Lock Brake (ABS) Control Unit | Below right side of dash. See Figure . |
| Central Processing Unit (CPU) | Behind left kick panel, near fuse block. See Figure . |
| Cruise Control Unit | Under left side of dash, near central processing unit. See Figure . |
| Electric Fan Control Unit (A/T) | Behind right side of dash. See Figure . |
| Emission Control Unit | Below right side of dash. See Figure & Figure . |
| Power Steering Control Unit | Under steering column. See Figure . |
| Theft Deterrent Control Unit | Below right side of dash, behind glove box. See Figure . |
| A/T Control Unit | Behind right side of dash. See Figure . |
