Main Relay

  1. Ensure a clicking sound is heard at main relay when turning ignition on and off. Disconnect main relay. Apply 12 volts to terminal A and ground terminal B. See Fig 1 .
  2. Ensure there is continuity between main relay terminals C and D, when voltage is applied. There should be no continuity when voltage is not applied.

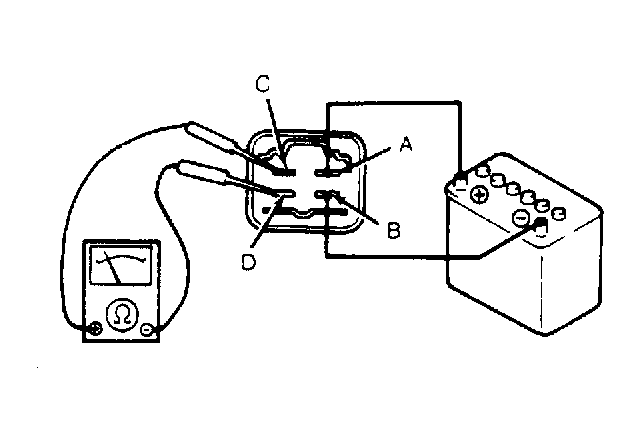

Fig 1: Main Relay Connector Terminal Identification
G94841Courtesy of MAZDA MOTORS CORP.
