Idle-Up System: Description

The idle-up systems are used on those models with engine powered accessories that decrease engine RPM. To maintain proper engine performance, the idle-up system increases the engine RPM to the required specifications.

B2200 models with A/C use an idle-up system, consisting of a idle-up solenoid valve, servo diaphragm, connecting hoses and electrical components. Models with A/C and auto. trans. use a dual servo diaphragm.

B2600 models with A/C use an idle-up system, consisting of a idle-up solenoid valve, servo diaphragm, connecting hoses and electrical components. Models with auto. trans. (A/T) also have a Power Steering (P/S) switch.

Fig 1: Idle-Up System (B2200)

Courtesy of MAZDA MOTORS CORP.

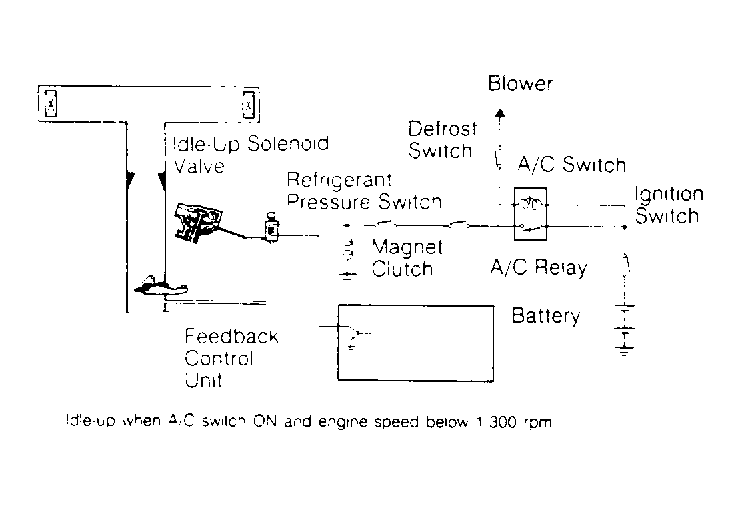

Fig 2: Idle-Up System (B2600 - Man. Trans.)

Courtesy of MAZDA MOTORS CORP.

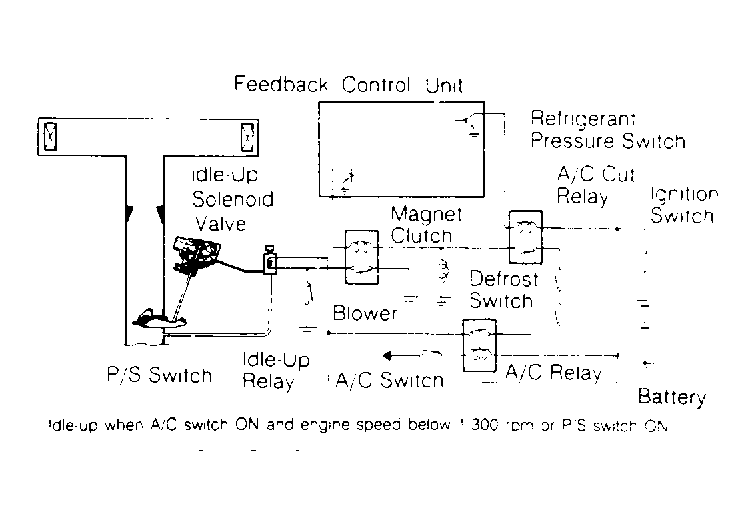

Fig 3: Idle-Up System (B2600 - Auto. Trans.)

Courtesy of MAZDA MOTORS CORP.
