Fuel Pump: Installation

Install fuel pump terminals. See Fig 1 . Tighten positive terminal to 10-17 INCH Lbs. (1.2-2.0 N.m). Tighten negative terminal to 20-29 INCH Lbs. (2.3-3.4 N.m). Using new fuel hose, install clamps. See Fig 1 . Install pump into bracket assembly. Remainder of installation is reverse of removal.

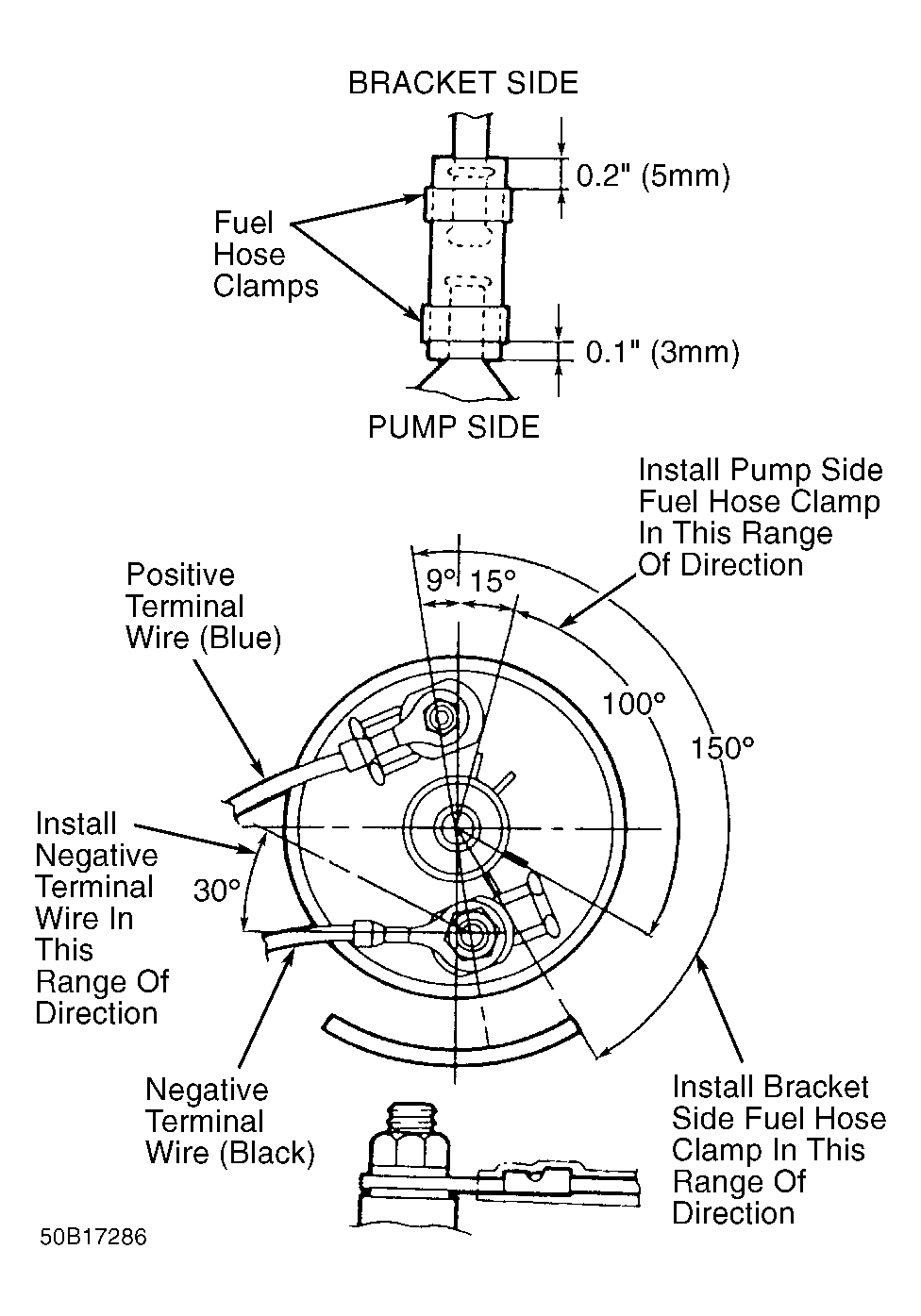

Fig 1: Fuel Pump Electric Terminal & Fuel Hose Alignment (B2600)

Courtesy of MAZDA MOTORS CORP.
