Trouble Codes

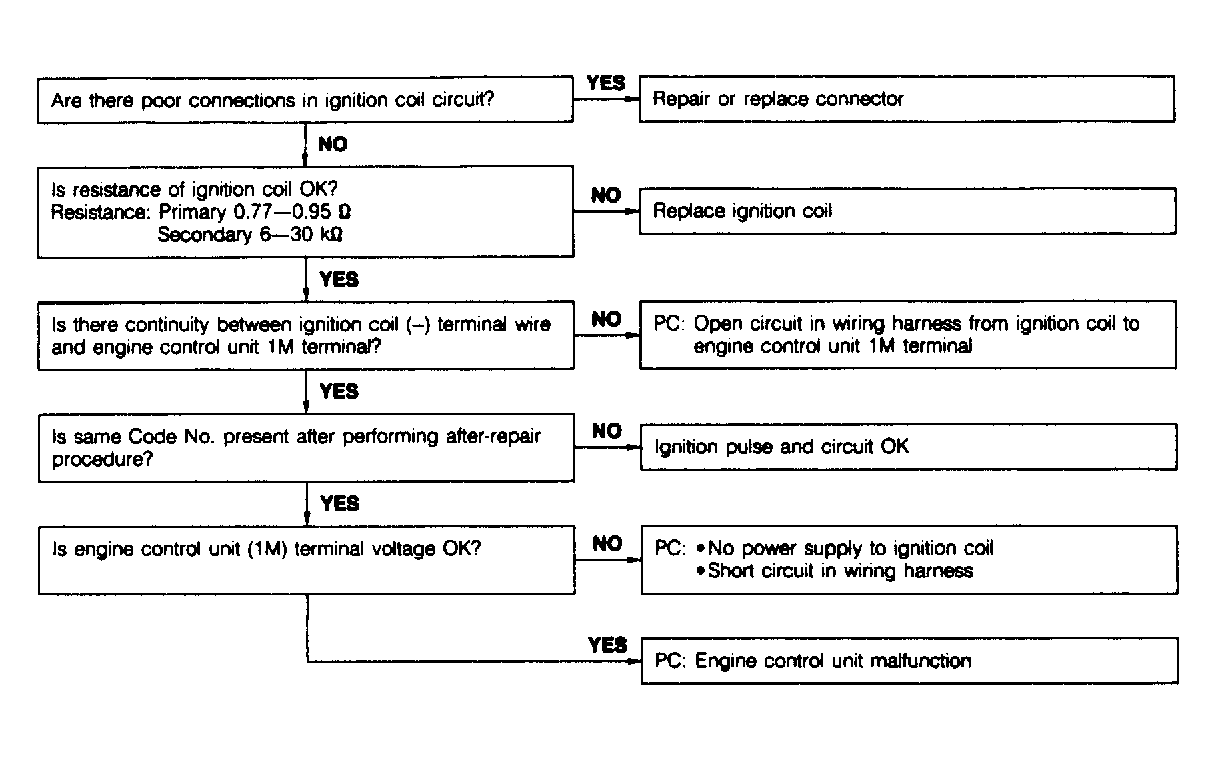

Fig 1: Code No.1 - Ignition Pulse

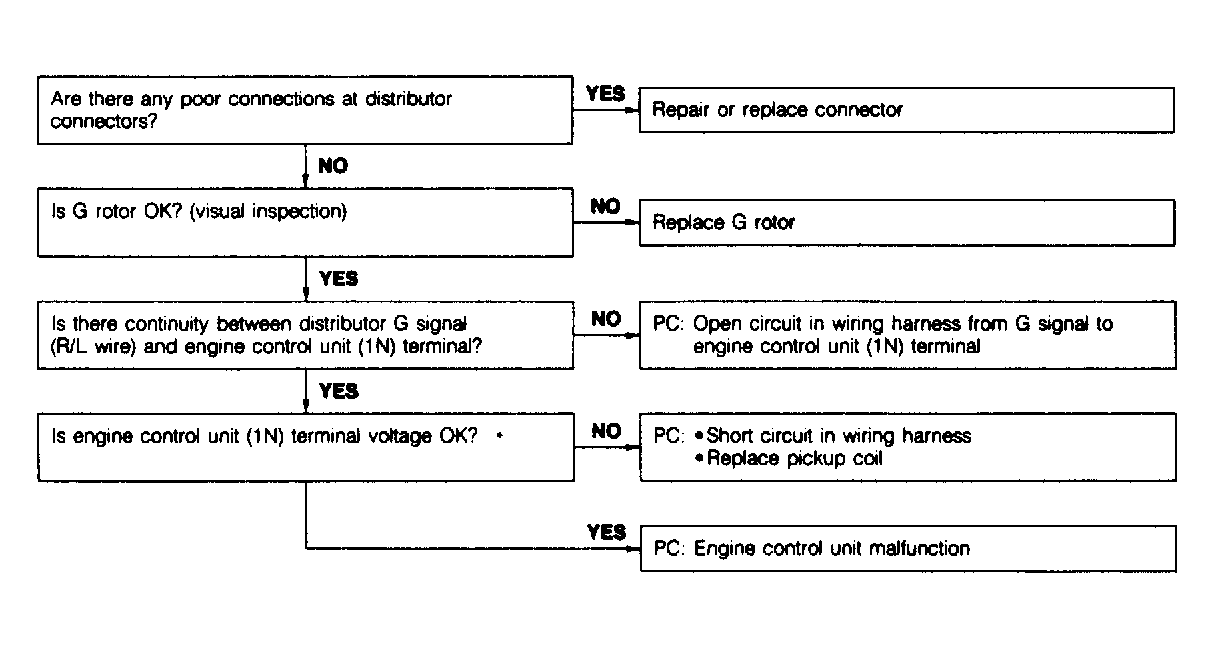

Fig 2: Code No.3 - G Signal

Fig 3: Code No.8 - Airflow Sensor

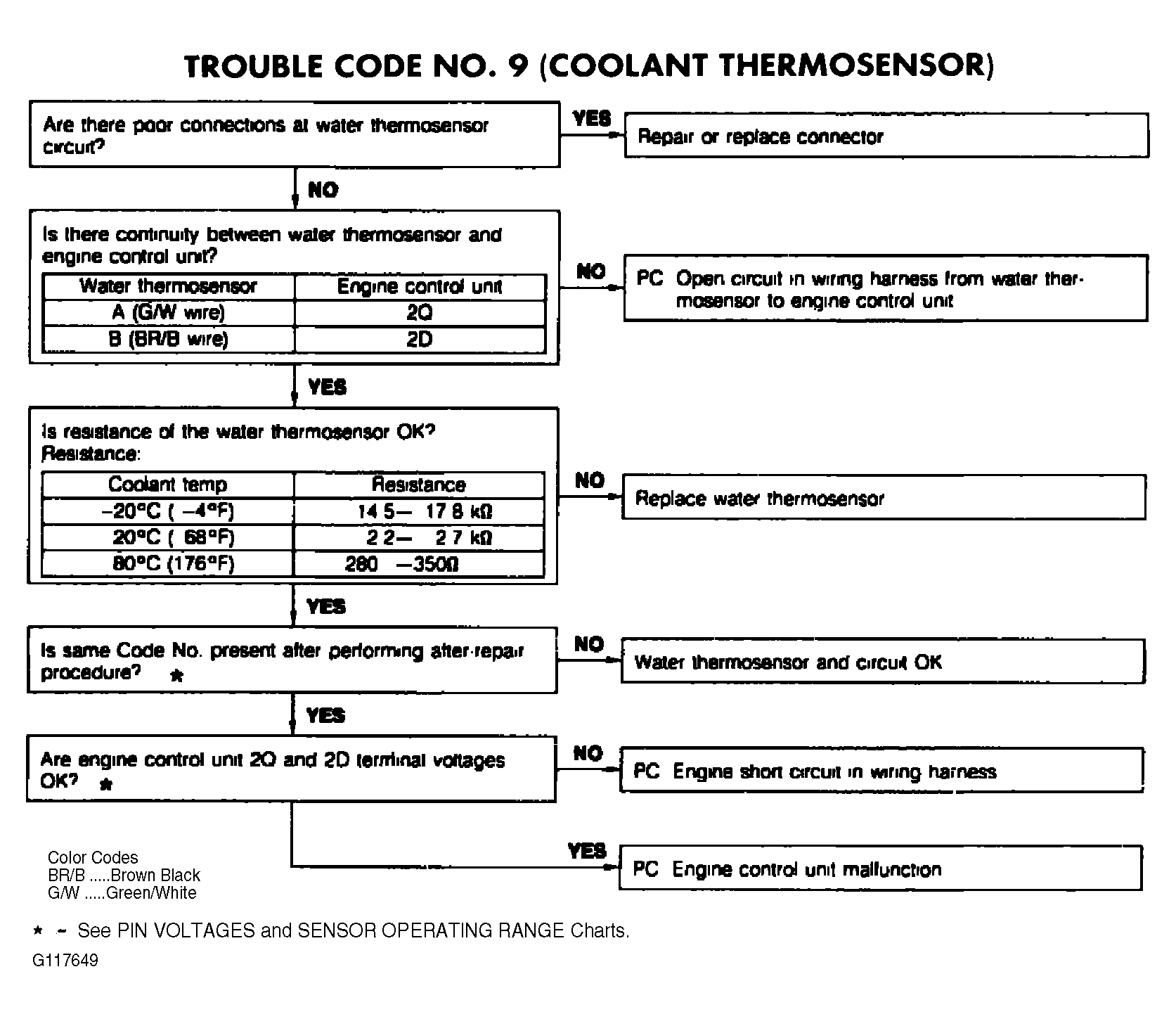

Fig 4: Code No.9 - Water Thermosensor

Fig 5: Code No.11 - Intake Air Thermosensor

Fig 6: Code No.12 - Throtle Sensor

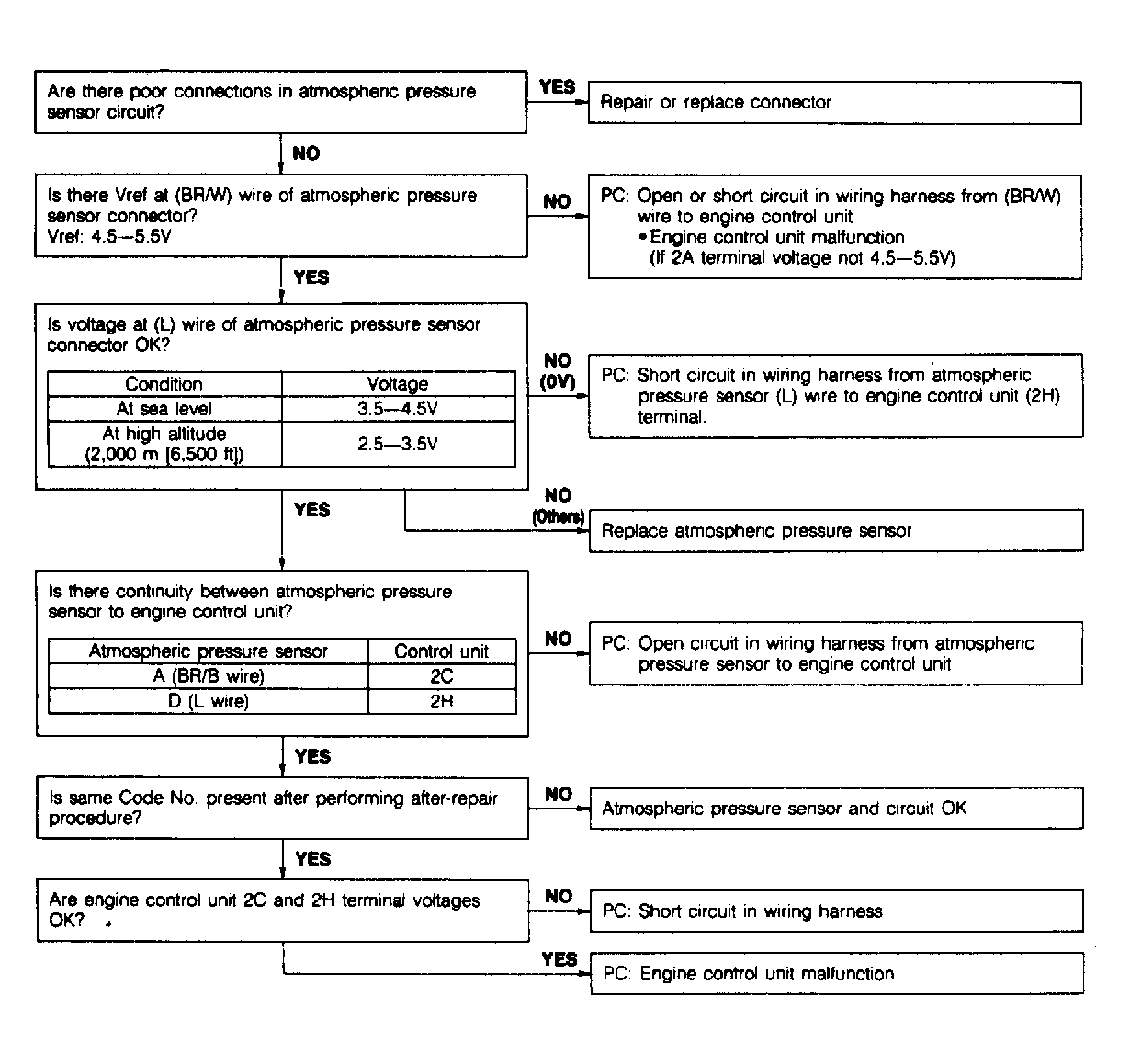

Fig 7: Code No. 14 - Atmospheric Pressure Sensor

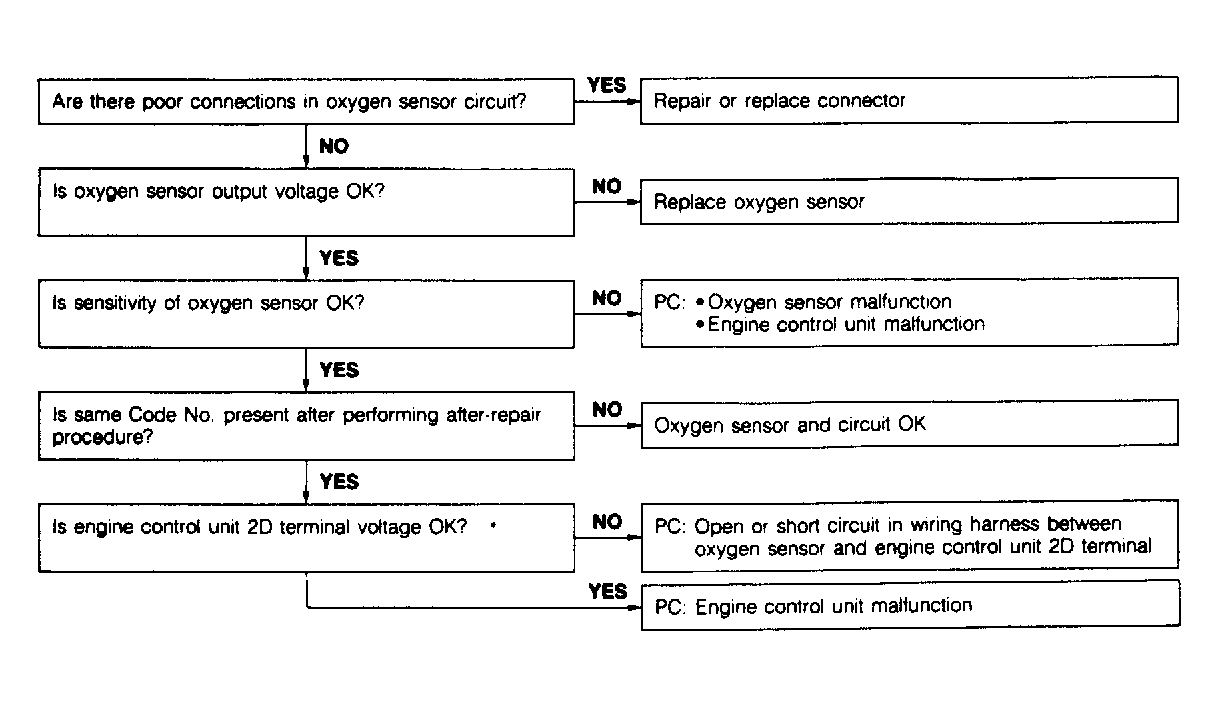

Fig 8: Code No.15 - Oxygen Sensor

NOTE: When Code No. 15 and 17 are present at the same time, first perform the checking procedure for Code No. 17.

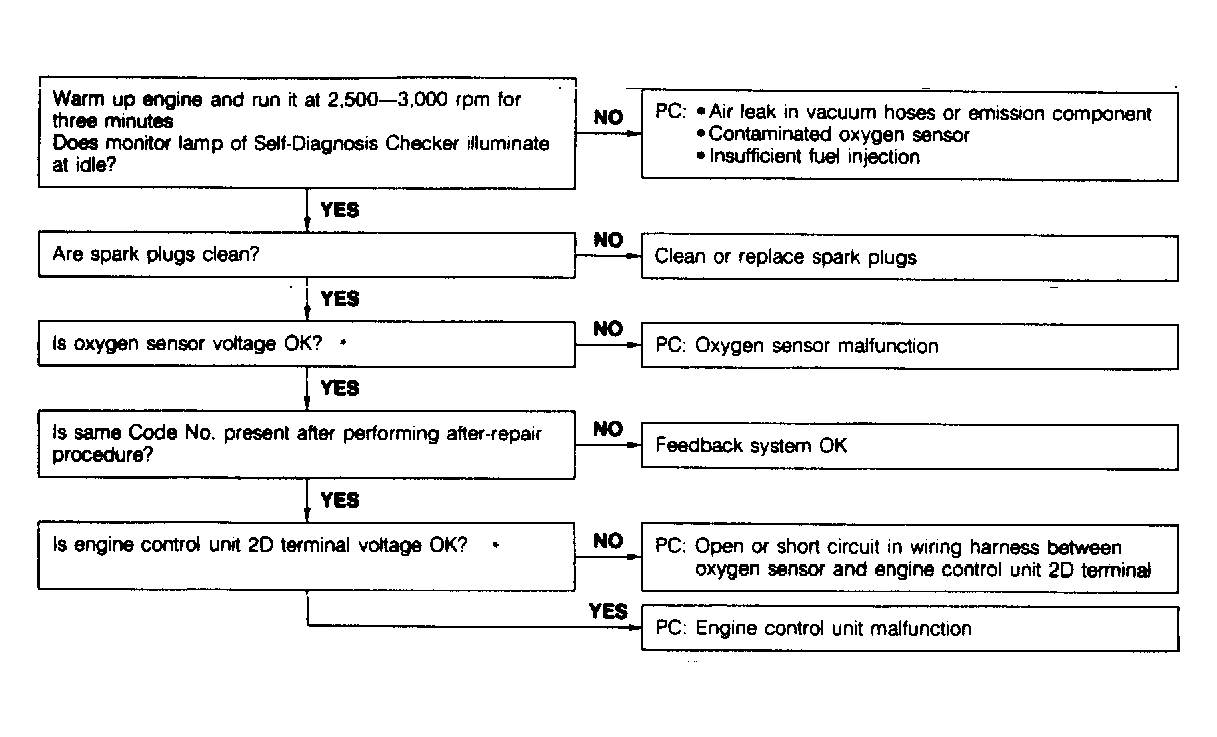

Fig 9: Code No.17 - Feedback System

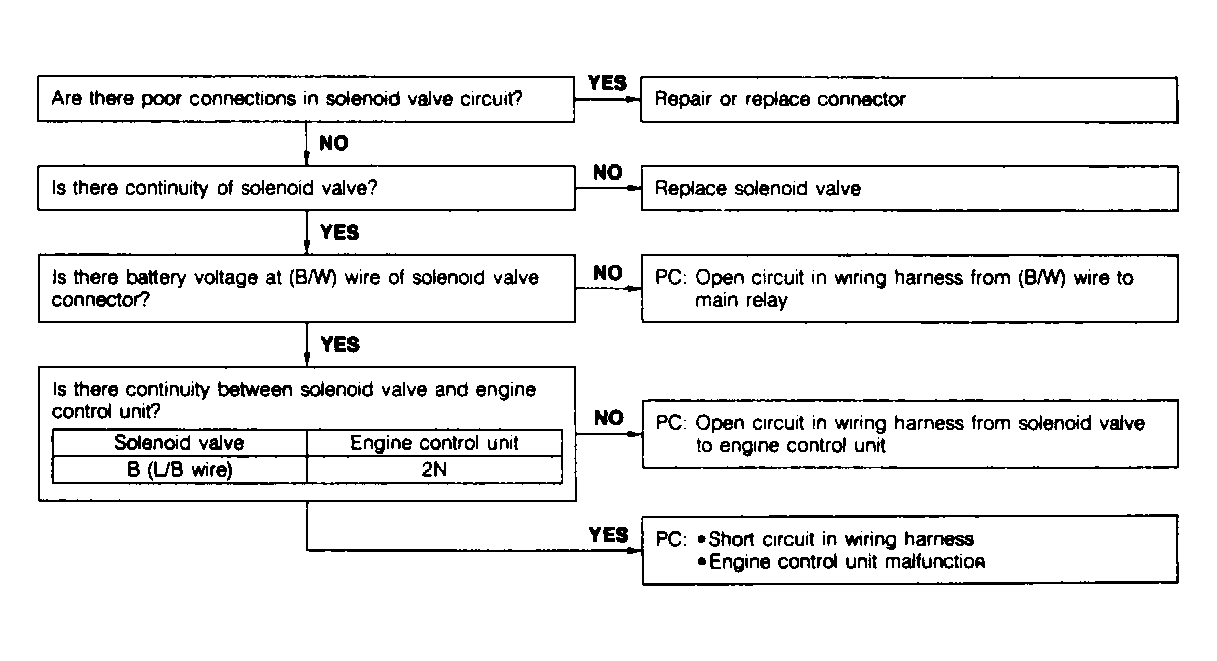

Fig 10: Code No.25 - Solenoid Valve-Pressure Regulator Control

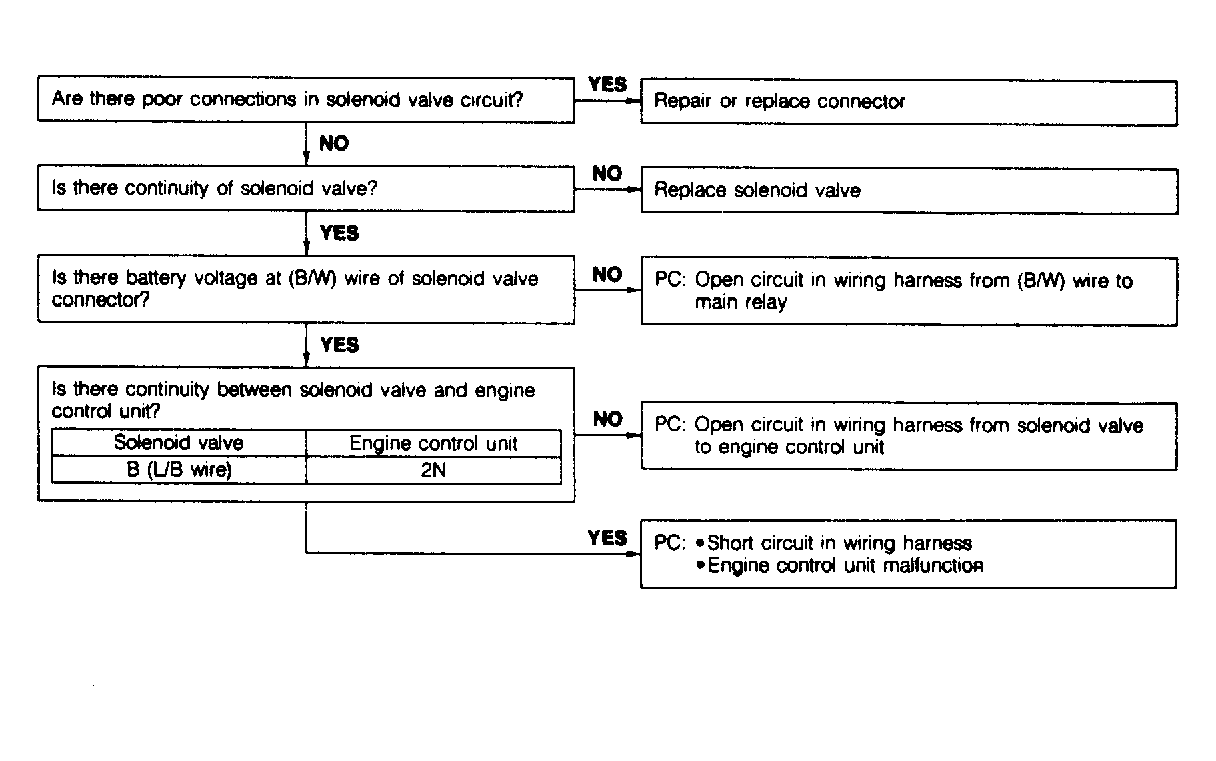

Fig 11: Code No.26 - Solenoid Valve-Purge Control

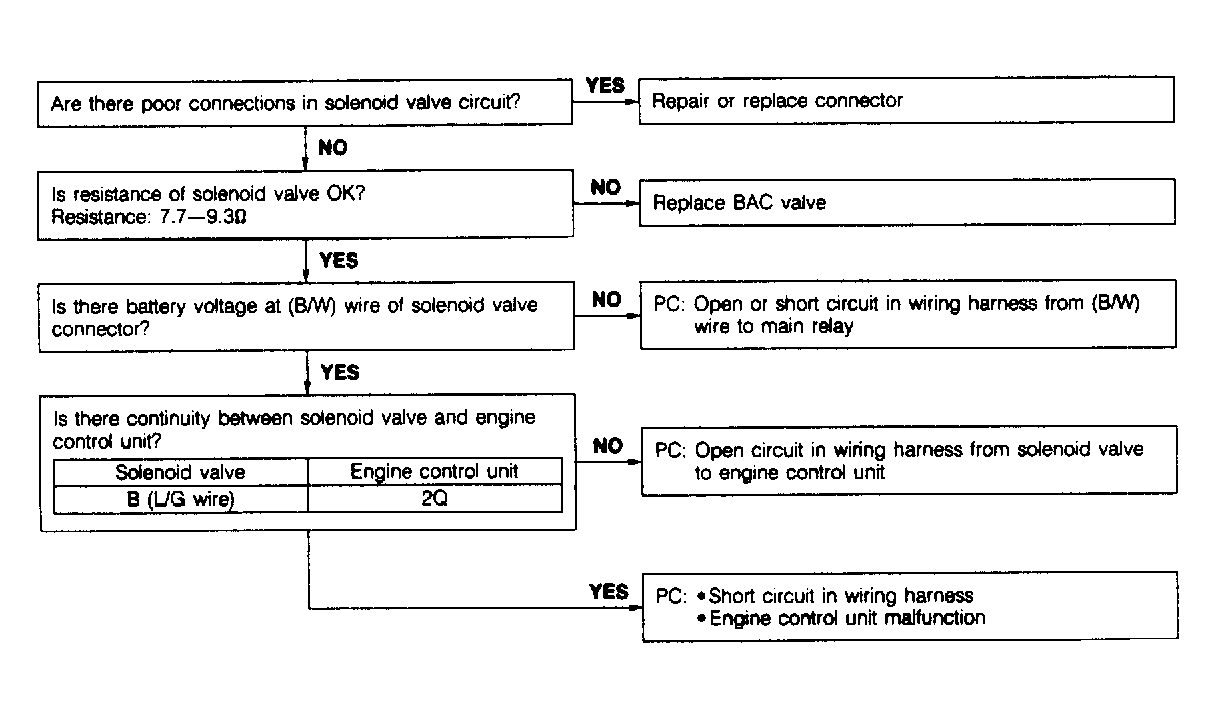

Fig 12: Code No.34 - Solenoid Valve-Idle Speed Control (ISC)
