Power Window Switch Connector Wire

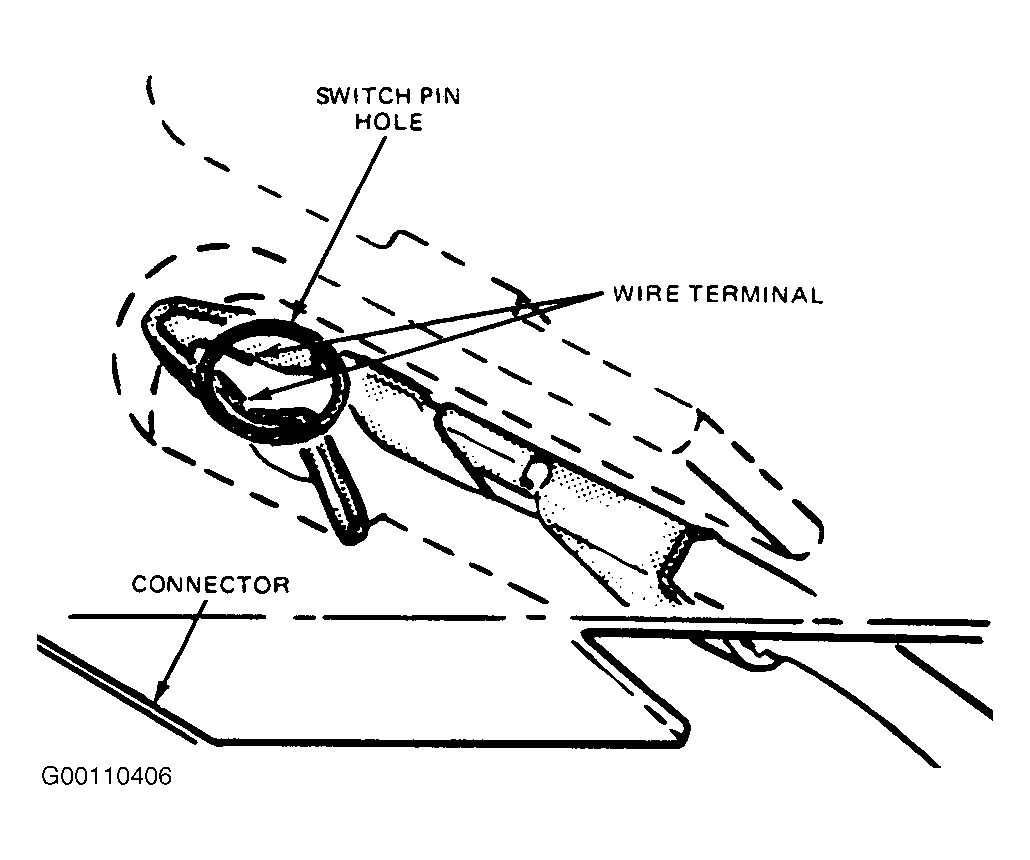

If replacement of the switch connector or a wire leading to the connector is necessary, the wire(s) can be removed from the connector without disassembling the connector. To remove a wire from the connector, insert a needle-like tool in the edge of the pin hole and bend the terminal in. See Fig 1 . Then, pull the wire and terminal from the connector. To install the terminal in connector, open the terminal and insert it into the wire hole. .
