Power Window Switch: Installation

    NOTE: The switch is keyed to the connector and can only be installed one way.
  1. Position the switch to the connector and press firmly into place.
  2. Install the connector to the switch housing using the two attaching screws.
  3. Install the switch housing to the armrest by hooking the front of the housing to the armrest and by pushing the rear of the housing firmly into place.

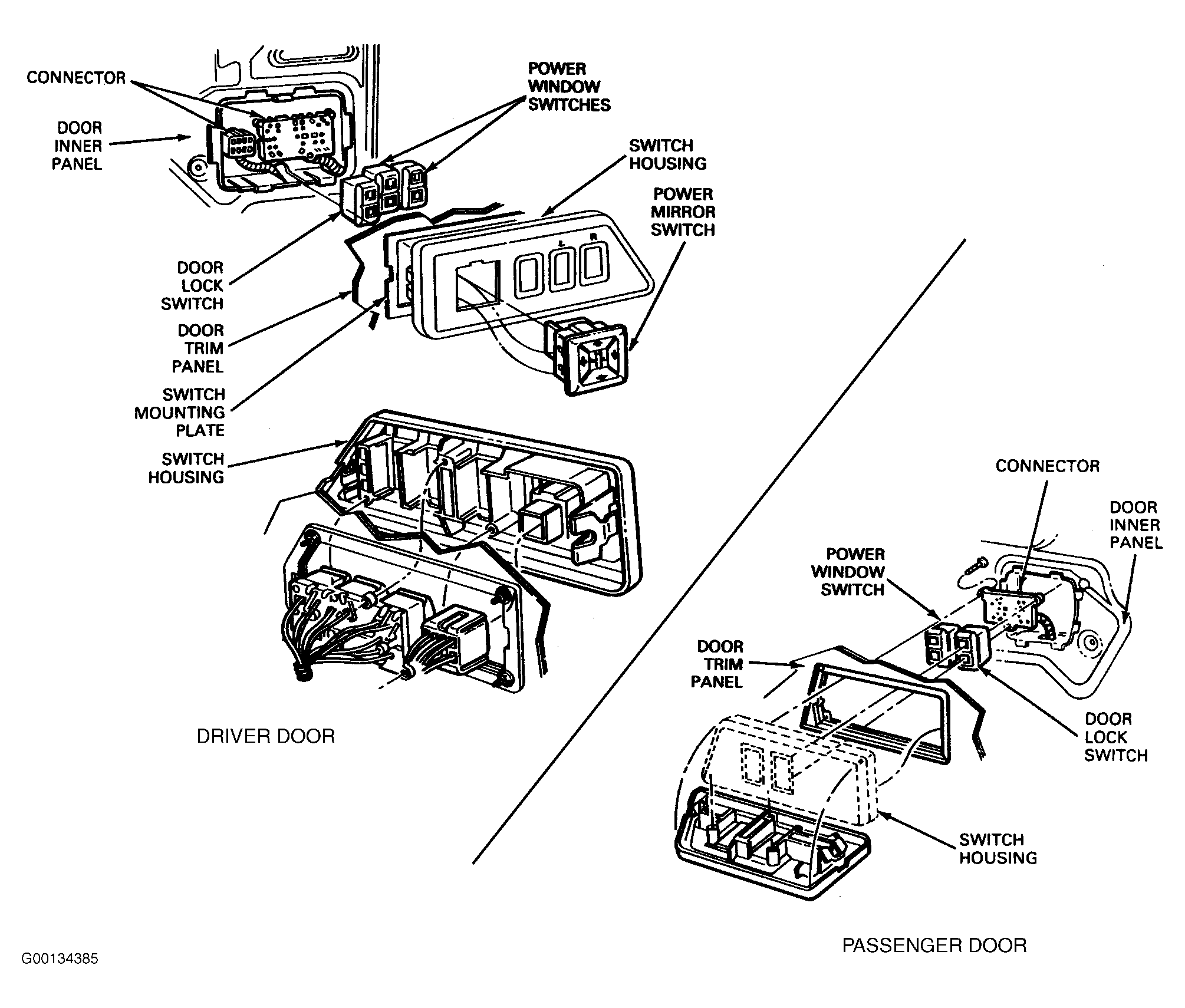

Fig 1: Removing & Installing Power Window Switch
G00134385Courtesy of MAZDA MOTORS CORP.
