Code 25: Pressure Regulator Solenoid Valve

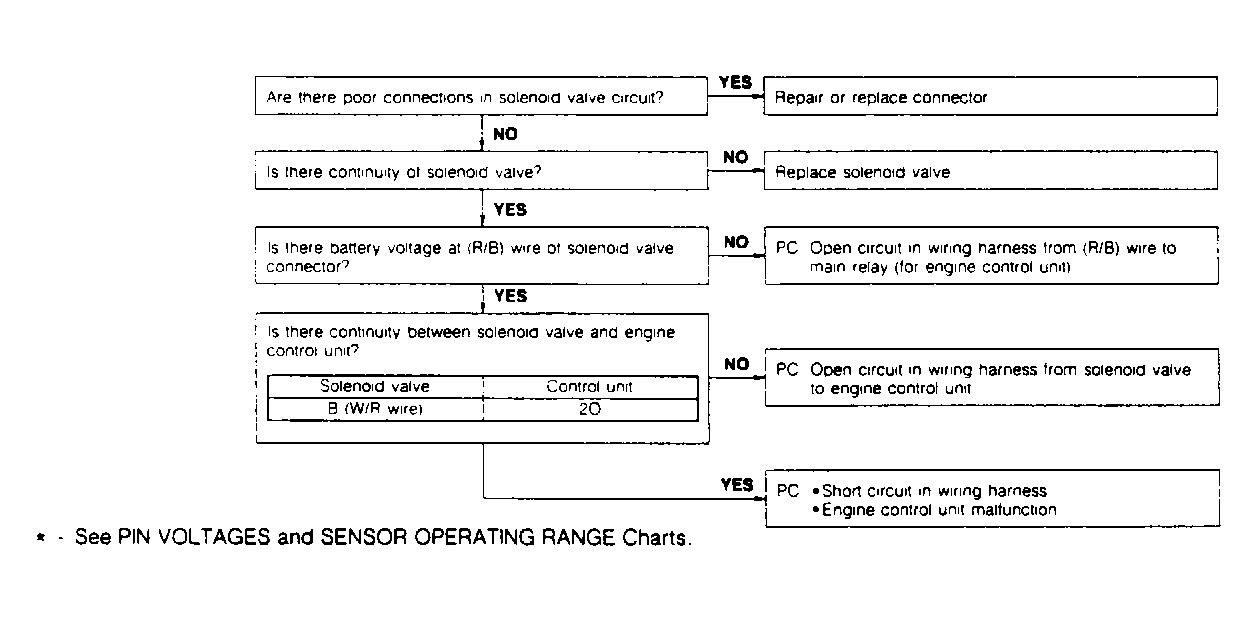

Fig 1: Code 25: Pressure Regulator Solenoid Valve Flow Chart (Turbo)

Courtesy of MAZDA MOTORS CORP.
